13
Chapter 2 - Front & Back Panel Descriptions
2.4 Switch Settings

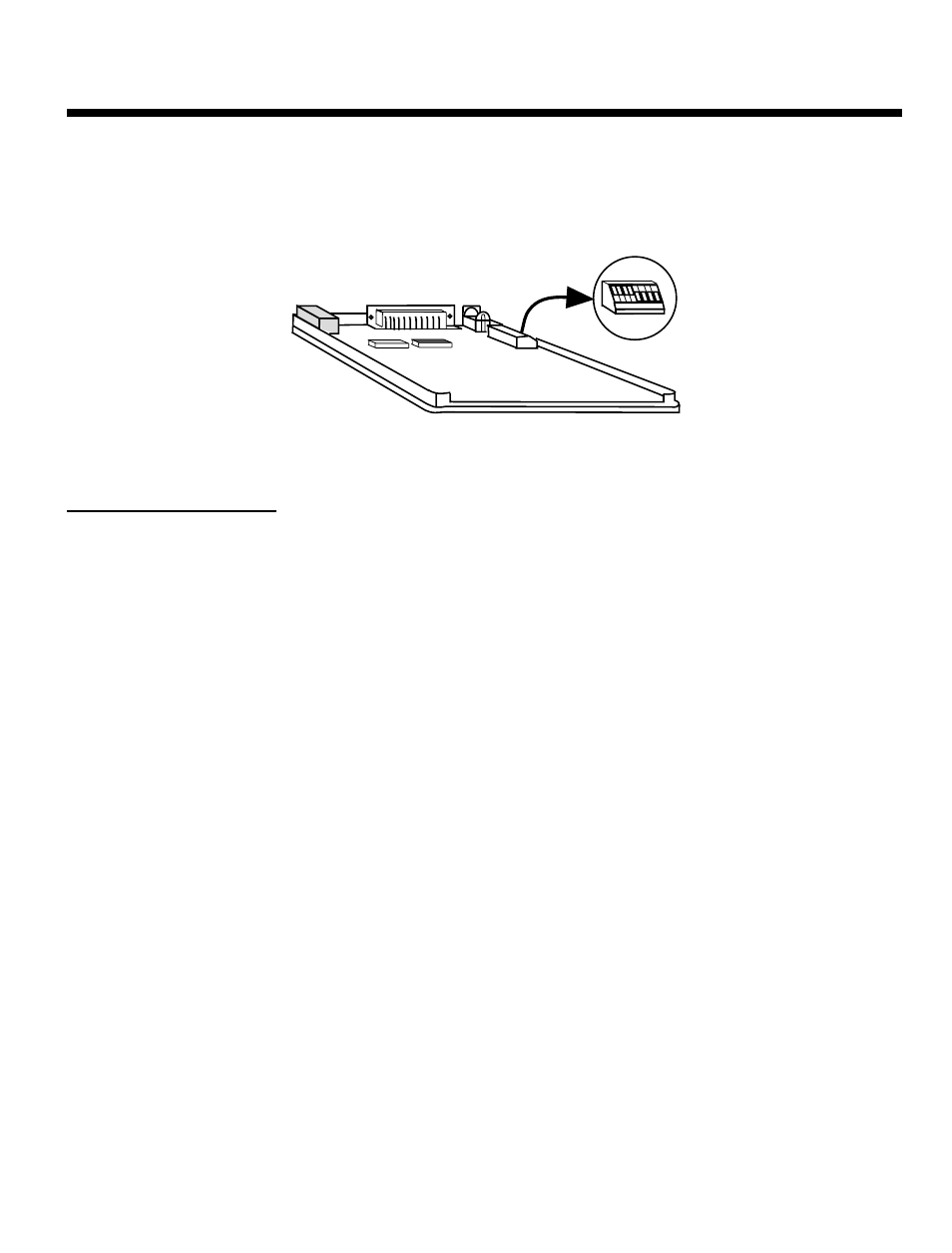

An 8-position DIP switch is located on the right side of the MT56DSU-S printed circuit board (when viewed
from the front, as in Figure 2-3). The DIP switch functions are described in the following table.
1 2 3 4 5 6 7 8
DIP-Switch
Figure 2-3. Switch Settings
Table 2-1. Switch Settings
Switch Mode Position Description
1 Reset UP* Normal
DOWN Reset
2 Clocking UP* DDS
DOWN Internal
3 Loopback UP* Normal
DOWN Loopback
4-8 Not Used
*Factory default setting
