20 A111 Wireless Card Adaptor
Chapter 3 - Reference
Chapter 3
Wireless Settings

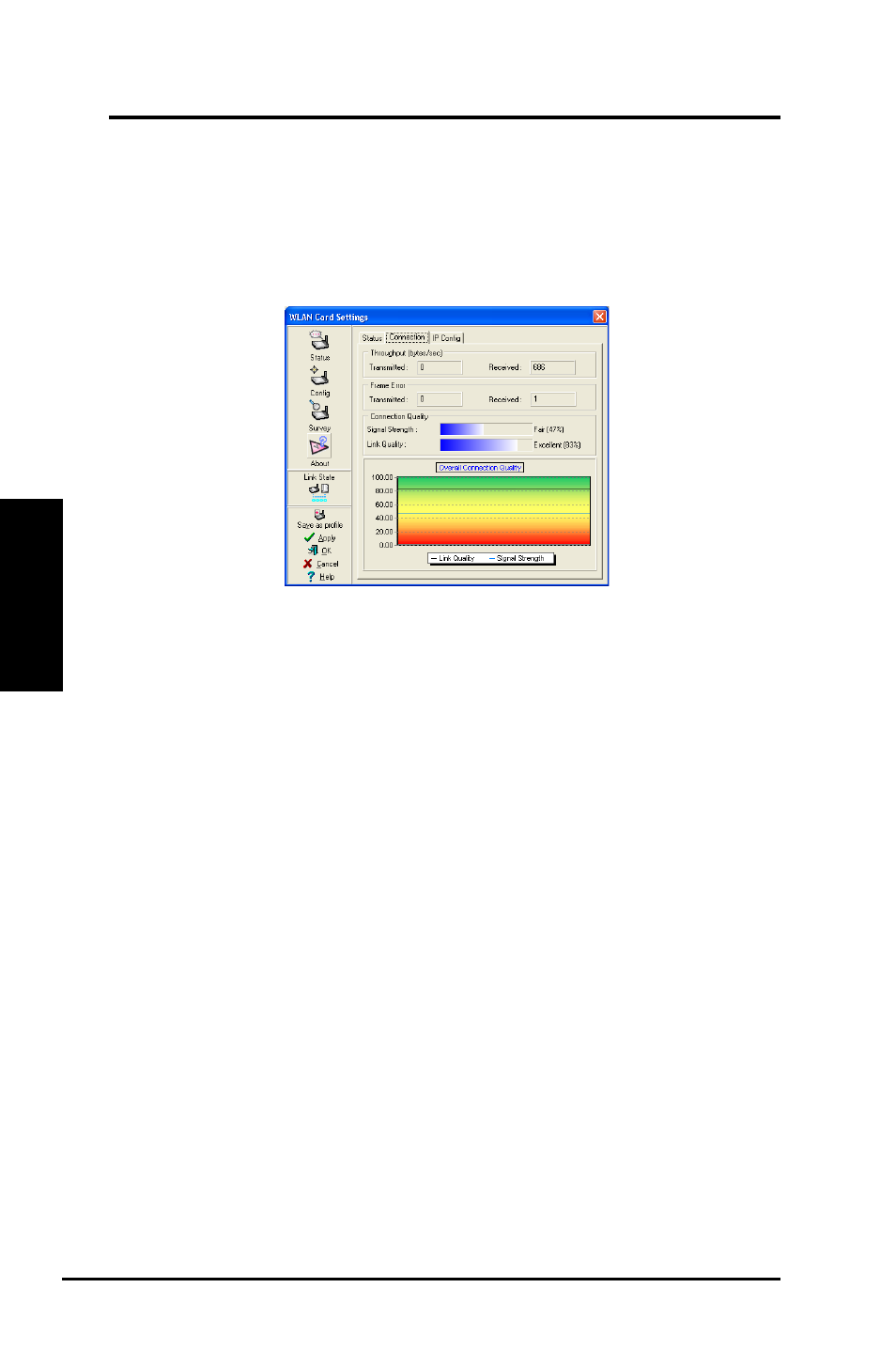

Status - Connection Tab
You can view the current link statistics about the A111 card. These
statistics are updated once per second and are valid only if the A111
card exists.
Frame Sent/Received
Transmitted - The number of frames that were transmitted.
Received - The number of frames that were received.
Frame Error
Transmitted - The number of frames that were not successfully transmitted.
Received - The number of frames that were not successfully received.
Connection Quality
Signal Strength - Reflects the signal level related to the Access Point
or Ad Hoc node the station is currently connected to. Ratings are:
Excellent, Good, Fair, and Poor.
Overall Connection Quality
This is derived from the current Signal Strength. A graph displays a
connection quality range between 0 and 100 percent.
Scanning
