EDS-508 Series User’s Manual Featured Functions
3-51
2. Activate your settings
After configuring and activating your MOXA EtherDevice Switch’s Relay Event Types.

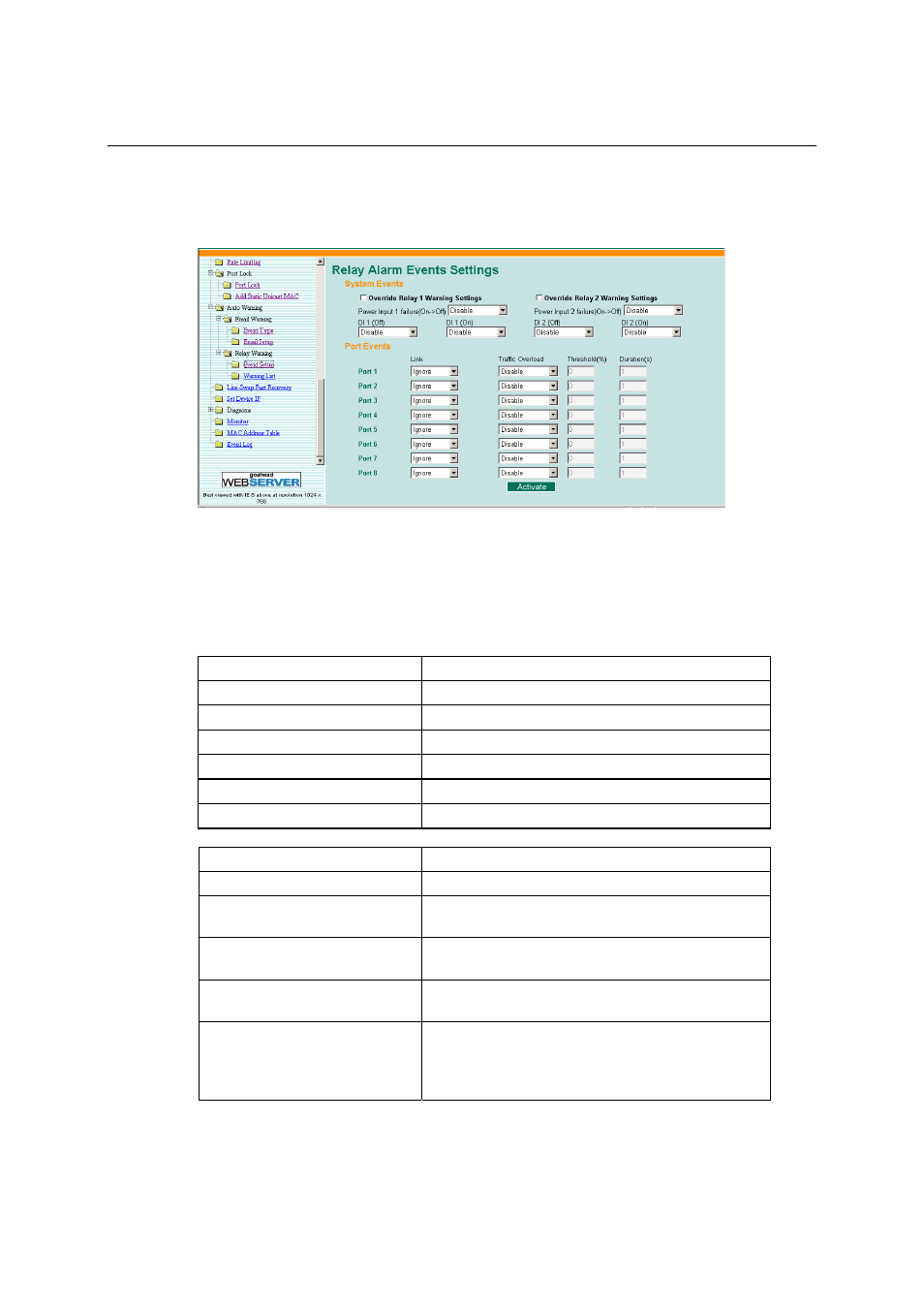

Relay Alarm Events Settings
Event Types
Event Types can be divided into two basic groups: System Events and Port Events. System
Events are related to the overall function of the Switch, whereas Port Events are related to the
activity of a specific port.
MOXA EtherDevice Switch supports two relay outputs. You can configure which relay output is
related to which events. This helps administrators identify the importance of the different events.
System Event Warning Relay output is triggered when…
Power Transition (On"Off) EDS is powered up.
Power Transition (Off"On) EDS is powered down.
DI1 (On"Off) Digital Input 1 is triggered by on to off transition
DI1 (Off"On) Digital Input 1 is triggered by off to on transition
DI2 (On"Off) Digital Input 2 is triggered by on to off transition
DI2 (Off"On) Digital Input 2 is triggered by off to on transition
Port Event Warning e-mail is sent when…
Link-on The port is connected to another device.
Link-off
The port is disconnected (e.g., the cable is pulled
out, or the opposing device shuts down).
Traffic-Overload
The port’s traffic surpasses the Traffic-Threshold for
that port (provided this item is Enabled).
Traffic-Threshold (%)
Enter a nonzero number if the port’s
Traffic-Overload item is Enabled.
Traffic-Duration (sec.)
A Traffic-Overload warning is sent every
Traffic-Duration seconds if the average
Traffic-Threshold is surpassed during that time
period.
