5-18

Gold Series™ Elite Inbound Event Display

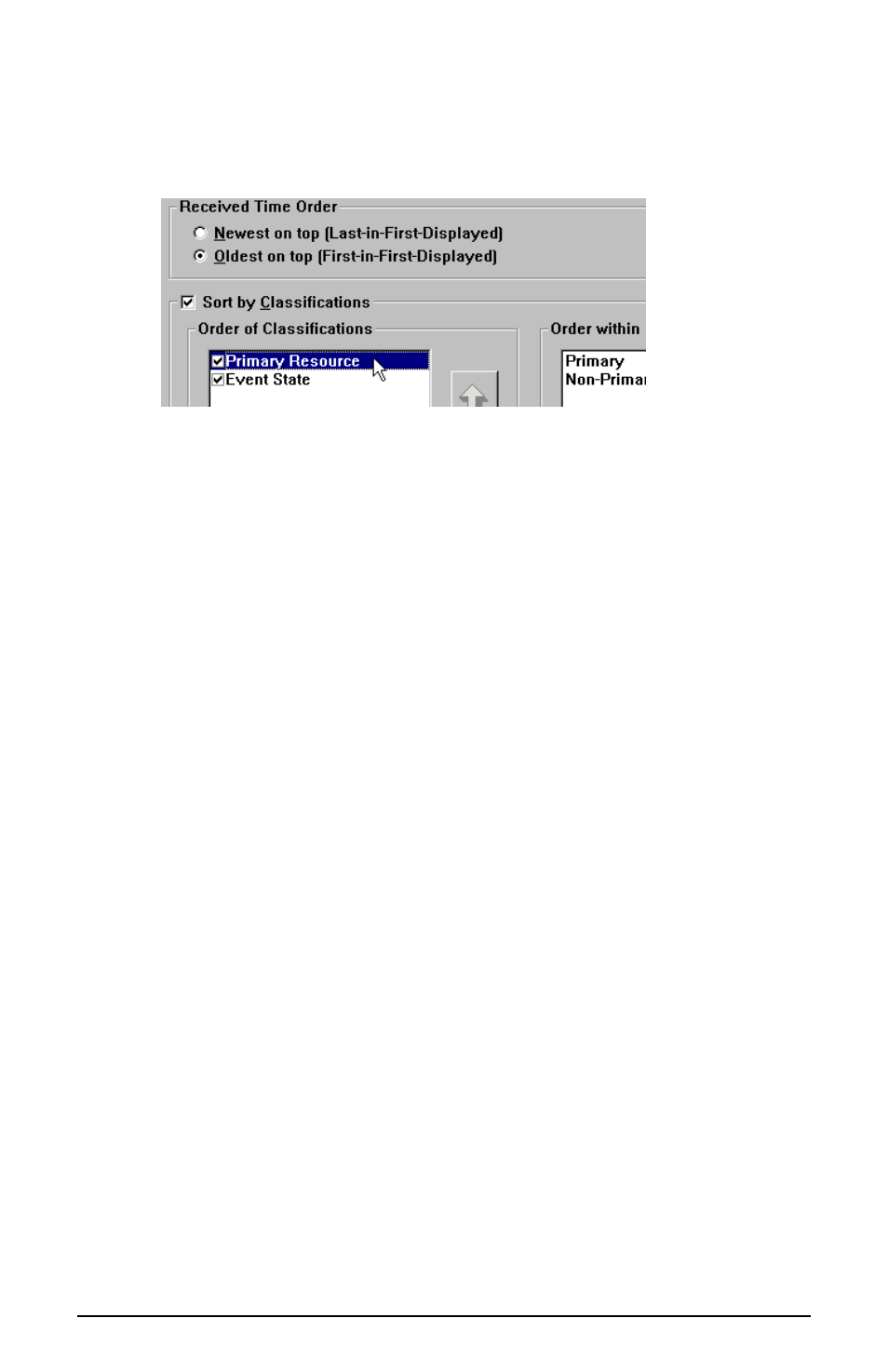

2 Sort by Received Time Order then Primary/non-Primary

If the “Oldest on Top” (First-in-First-Displayed) was selected as shown
in the Received Time Order above,, then the selection is made to sort
first by Primary Resource (where RSC_A and RSC_B are Primary and
where RSC_C and RSC_D are non-primary), and second by Event
Status (e.g. Acknowledged, Unacknowledged, Held).

Thus, the Inbound Event Display would display events as shown in the
table below (no alphabetical sorting is implied). The first two events
are from Primary resources, and both are acknowledged.

Since oldest on top is specified, Event 1 (RSC_B) is displayed before
Event 2 (RSC_A). In each of the groups following those two
(separated for clarity here), the same criterion is applied.

Inbound Event State

UNIT_ID

Resource

Timestamp

Acknowledged 00000002

RSC_B
