LCP2 Adapter Board Preparation
Preparation of the LCP2 adapter consists of removing or replacing the
terminating resistors for SCSI. The location of the resistors, fuse, and
connectors is illustrated in
. Refer to the Installation Instructions for
use of the terminators.

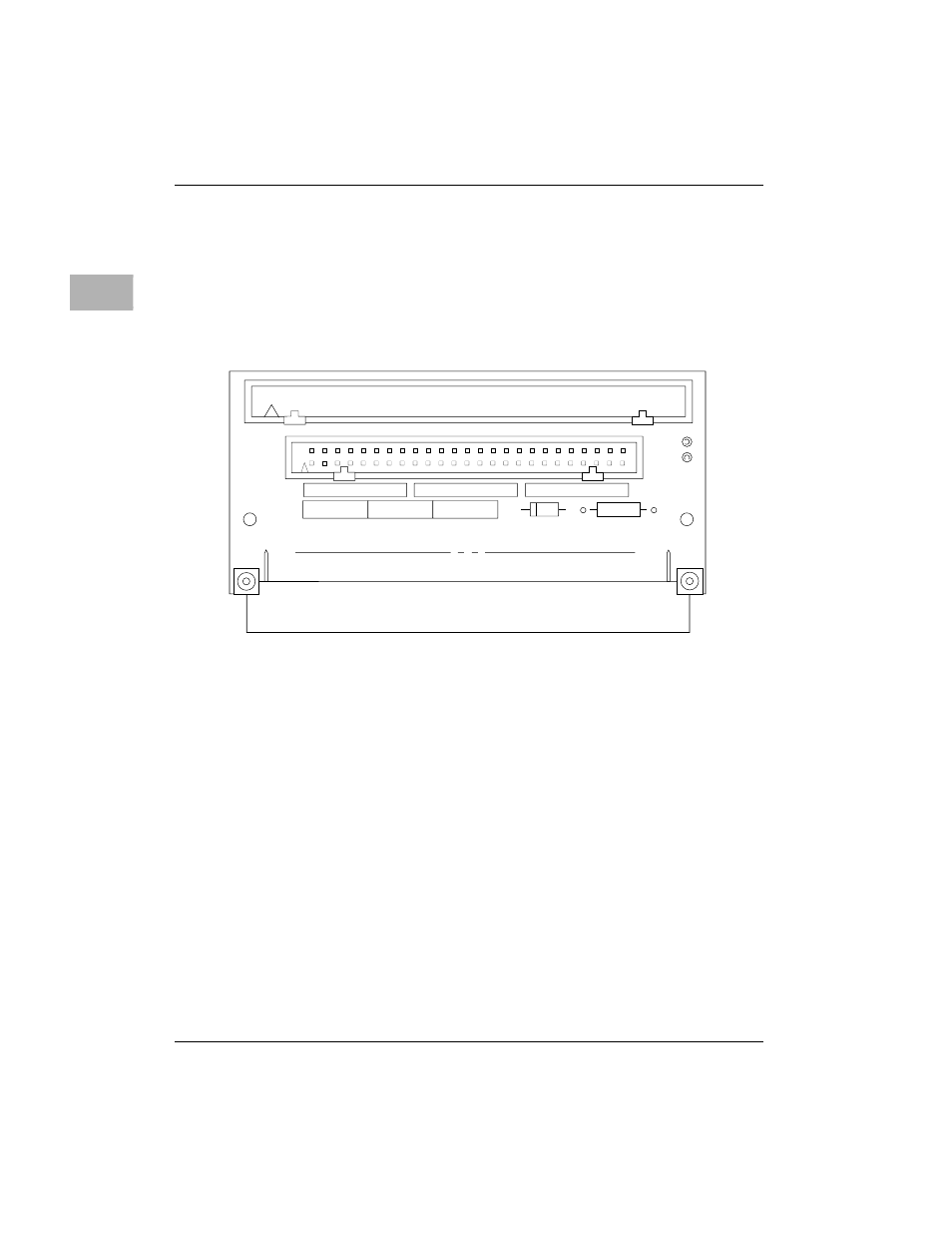

Figure 2-6. LCP2 Adapter Connector Locations
C1
B1
A1
C32
B32
A32
cb206 9212
2
1
2
1
50
49
64
63
J2
J3
R2
R3
R1
C1
C2
C3
F1
P2
CR1
1
E1
