Minolta Universal Carrier UC-6 - Manual (Page 2)

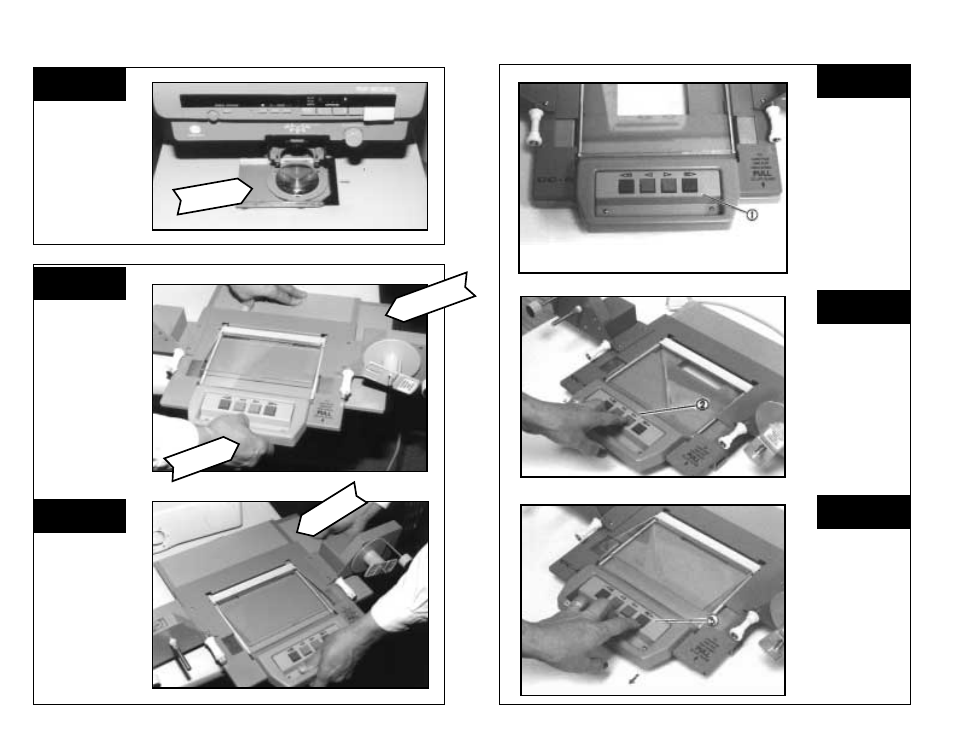

Rotate the
carrier base
mount 90
degrees as
shown in
photo at right.
Step 2
Rotate 90°
Position the
UC-6 Carrier as
shown. Pull out
the lower base
plate of the UC-6
Carrier and pull
handle to open
glass flat.
Step 3
Pul
l O
ut L
ow
er
Bas
e P
late
Next, guide the
UC-6 Carrier
onto the base
mount of the
reader/printer
by sliding the
lower plate onto
the carrier base
mount.
Step 4
Sl
id
e L
ow
er
Pl
at
e
Pul
l Ha
ndl
e
MOUNTING INSTRUCTIONS USER’S MANUAL – Speed Control Functions
① Speed
Control Pad
3 SPEEDS:
Slow/Medium/High
GREY BUTTONS
Slow Speed
RED BUTTONS
Medium Speed &
*High Speed
Step 1
② Press down
on GREY
BUTTON to
SLOWLY
advance or
rewind film.
Step 2
Press down RED
BUTTON for
MEDIUM Speed.
To increase speed,
hold down button
and pull handle
out to open glass
flats to engage
HIGH Speed.
Step 3
*Hold down RED BUTTON and pull handle out
to open glass flats to engage High Speed.
