Charging a High Capacity Battery

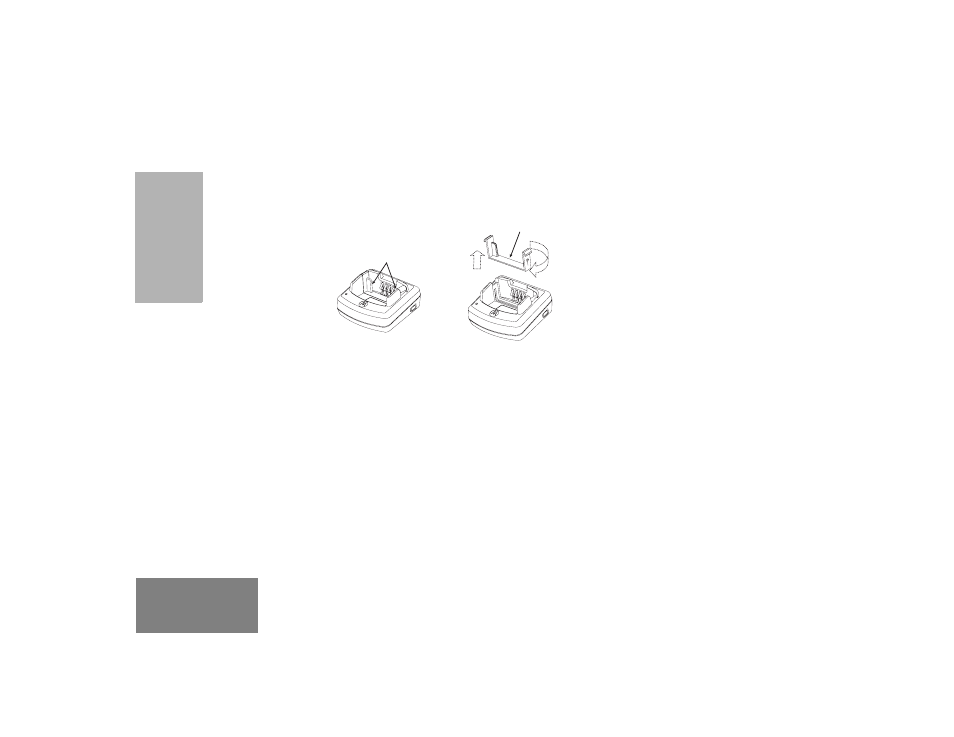

To convert the charger from the default
setup to accommodate the high capacity:

Squeeze both tabs on each side of the

removable bracket in the drop-in charger tray
carefully

and lift the bracket from the charger

tray.

Rotate the removable bracket 180 degrees and

replace it by fitting it in the charger slot until it
clicks. The label on the removable bracket
should show "High & Ultra Capacity Battery"
facing front of the charger.

Repeat same procedure to return position back

to charging a Standard Battery. Label on the
removable bracket should show "Standard
Battery" facing front.

Note: Make sure the bracket is assembled

correctly for both standalone battery and
battery (with radio) to be properly charged.

Removable

Piece

Removable

Piece

Turn around

horizontal

180 degree
