19 English
BATTERIE
S
AN
D
CHAR
GER
S
Battery Meter
The battery meter located in the upper left
corner of the display indicates how much
battery power you have remaining.
Charging the Battery
To charge the battery (with the radio attached),
place it in a Motorola-approved Drop-in Tray
Single Unit Charger or Drop-in Tray Multi-Unit
Charger.

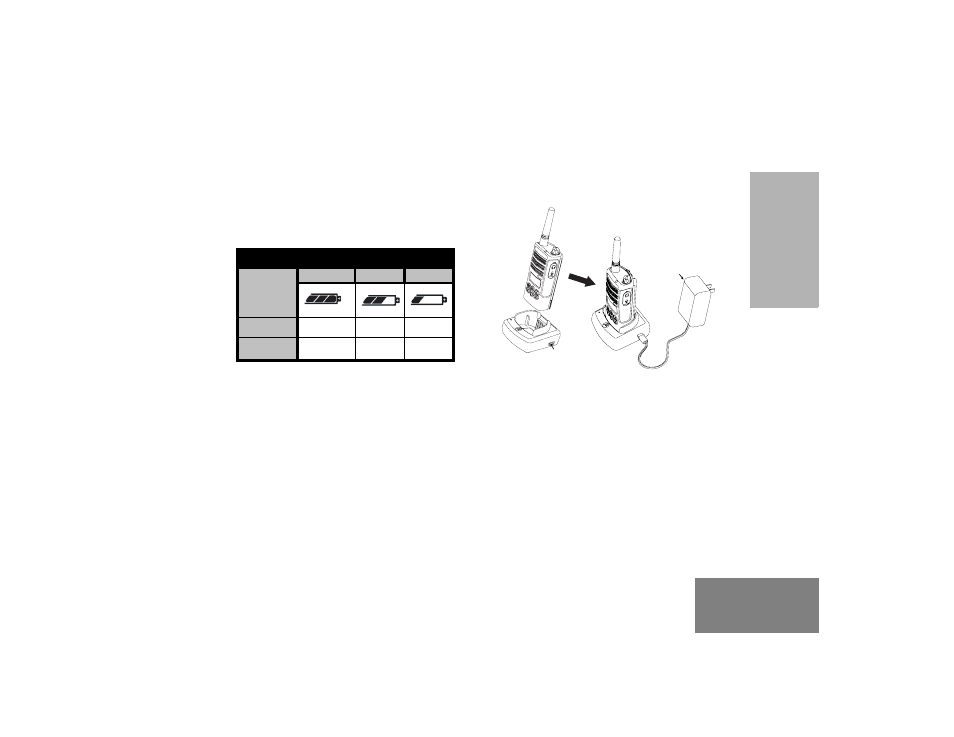

Charging with the Drop-in Tray Single Unit
Charger
1. Place the drop-in tray charger on a flat surface.
2. Insert the connector of the power supply into
the port on the side of the drop-in tray charger.
3. Plug the AC adaptor into a power outlet.
4. Insert the radio into the tray with the front of the
radio facing the front of the charger, as shown.
Note: When charging a battery attached to a radio,
turn the radio OFF to ensure a full charge.
See “Operational Safety Guidelines” on
page 7 for more information.
XTNi™ Series Battery Meter
Battery
Type
3 Bars 2 Bars 1 Bar
Li-Ion 100%-70% 70%-30% 30%-0%
AA 100%-70% 70%-30% 30%-0%
Power Supply
(Transformer)
Drop-in Tray
Charger Port
