624WBPF Woodburning Fireplace

53D9052

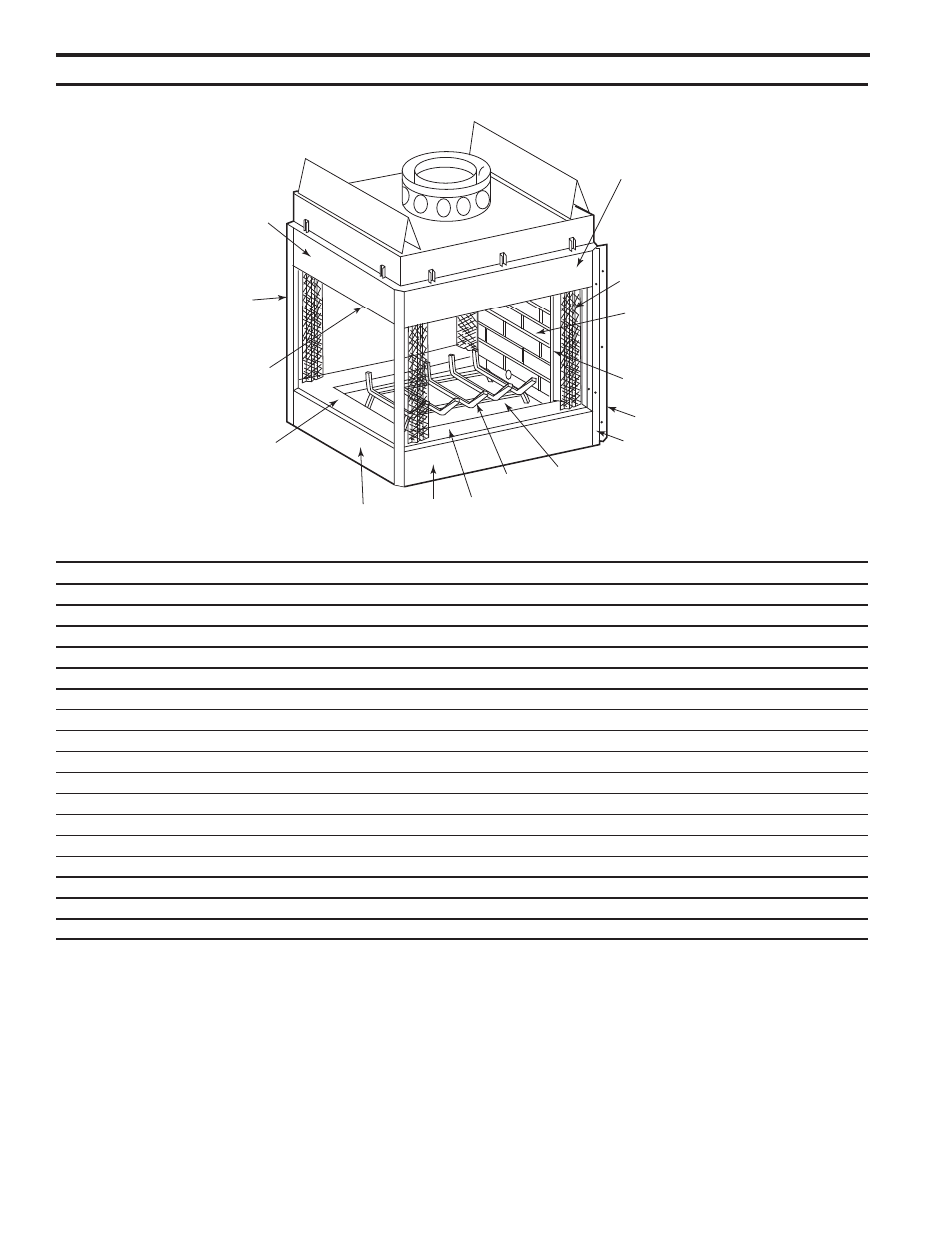

rePlaceMeNt PartS

1

2

3

4

5

6

7a,b,c

8

9

10

11

12

13a,b,c

1

11

539042
MPL parts

ref.

description

qty.

Part No.

1.

Panel, Front Ptd. Assy.

4

042988

2.

Panel, End Ptd.Assy.

1

042990

3.

Panel, End Vented Ptd. Assy.

1

043006

4.

Post, Corner Ptd. Assy.

4

043008

5.

Cap,Corner Post

2

043009

6.

Flange, Nailing Ptd. Assy.

2

043104

7a.

Panel, Firescreen w/Pull

4

026398

7b.

Rod, Curtain Rod

4

024508

7c.

Clip, Screen Rod

2

043024

8.

Grate Assy. Ptd.

1

043044

9.

Ledge, Hearth Front Assy.

4

043054

10.

Ledge, Hearth End Assy.

1

043055

11.

Firebrick, End/Base Assy.

2

042970

12.

Air Door Rod

1

043099

13a.

Damper Blade

1

047649

13b.

Rod, Damper

1

047647

13c.

Handle, Damper

1

037391
