624WBPF Woodburning Fireplace
53D9052
FP2358
finish install
1/2” Min. Air Space
to Combustibles
Fireplace
2 x 4 Stud
Wallboard
Corner
Post
Nailing Flange
FP2358

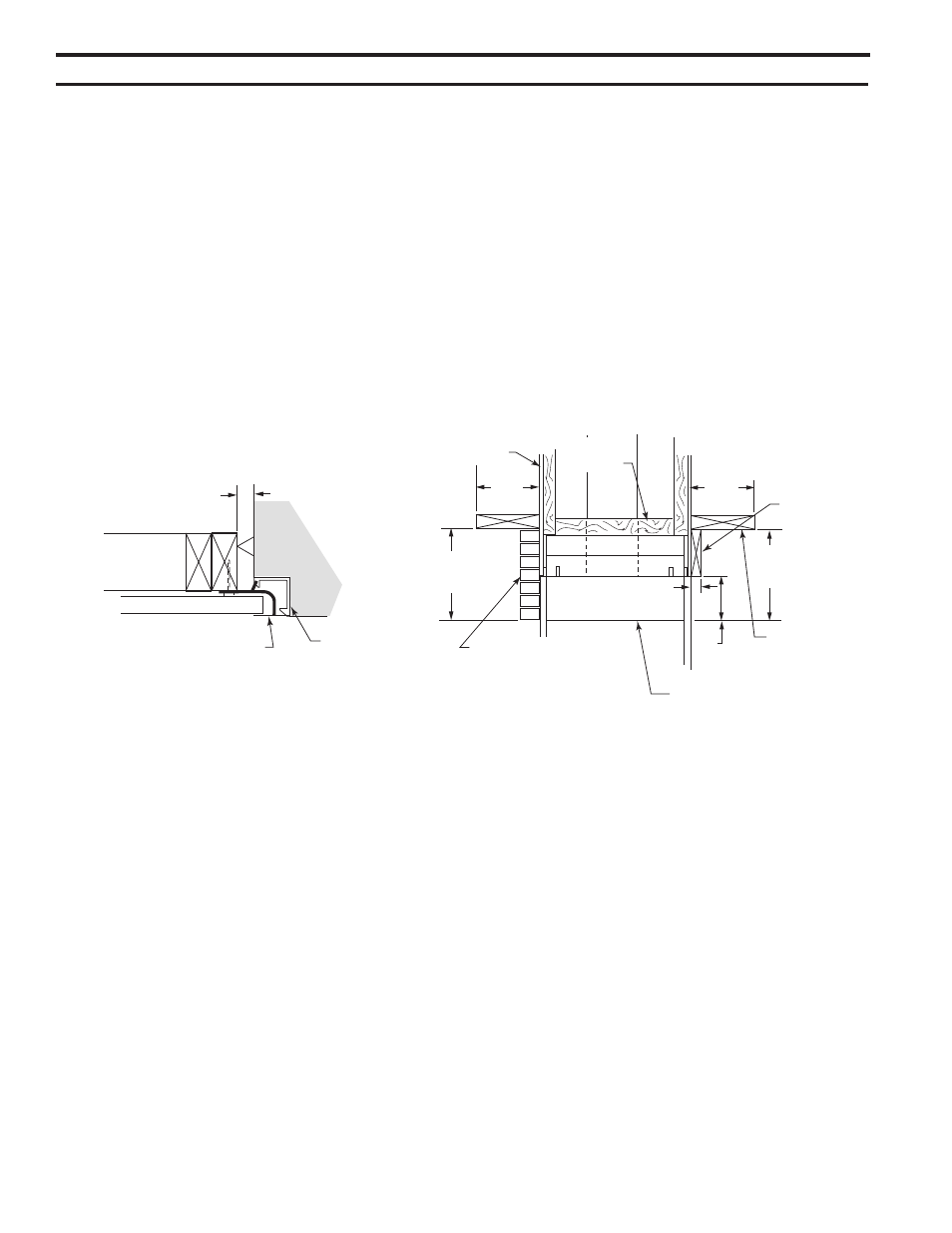

Figure 27
triM iNStallatioN
decorative triM iNStallatioN
Do not allow the trim materials to extend closer than 3/8 inch to the vertical edges of the firebox opening if
you plan to equip the fireplace with glass doors.
The face of the fireplace may be left exposed or trimmed with any noncombustible material such as brick,
stone or marble. If a trim is installed, be sure it is fastened snugly to the face of the fireplace. A crack be-
tween the material and the face of the fireplace could pose a fire hazard and impair the proper operation of
the fireplace. Blocking the fireplace with framing and attaching the base to the supporting floor will further
reduce the possibility of such a crack developing.
Wall ties should be fastened to the face of the fireplace with sheet metal screws and place din the mortar
joints of masonry trim.
Combustible material must not be installed below the top spacers of the fireplace or overlap the sides of
the fireplace face. Seal the face of the fireplace to the surrounding wall with noncombustible caulk or trim
materials to prevent cold air leakage around the fireplace.
10”
Max.
10”
Max.
12”
Max
156O”
Max.
7”
Min.
12”
Min.
FP2359
trim install
Finish Wall Framing
Members
Noncombustible Brick,
Stone, tile or Marble Type
Face Finishing Material
Combustible
Mantel
Combustible
Trim
Note: The weight of framing and finishing materials supported
solely by the fireplace unit should not exceed 250 lbs.
Heavy brick or stone facings may require an added means of
support such as self-supporting legs which would extend to the
floor.
Fireplace Opening FP2359
glaSS door iNStallatioN
This fireplace has been tested and listed for use with model WH22 End Glass Door assembly and model
WH36 Bifold Door assemblies which are to be installed on the two larger open sides of the fireplace. To
install these door, follow the proper instructions provided with the cartoned door assemblies.
