21 53D9052
624WBPF Woodburning Fireplace gaS aPPliaNce
FP2356

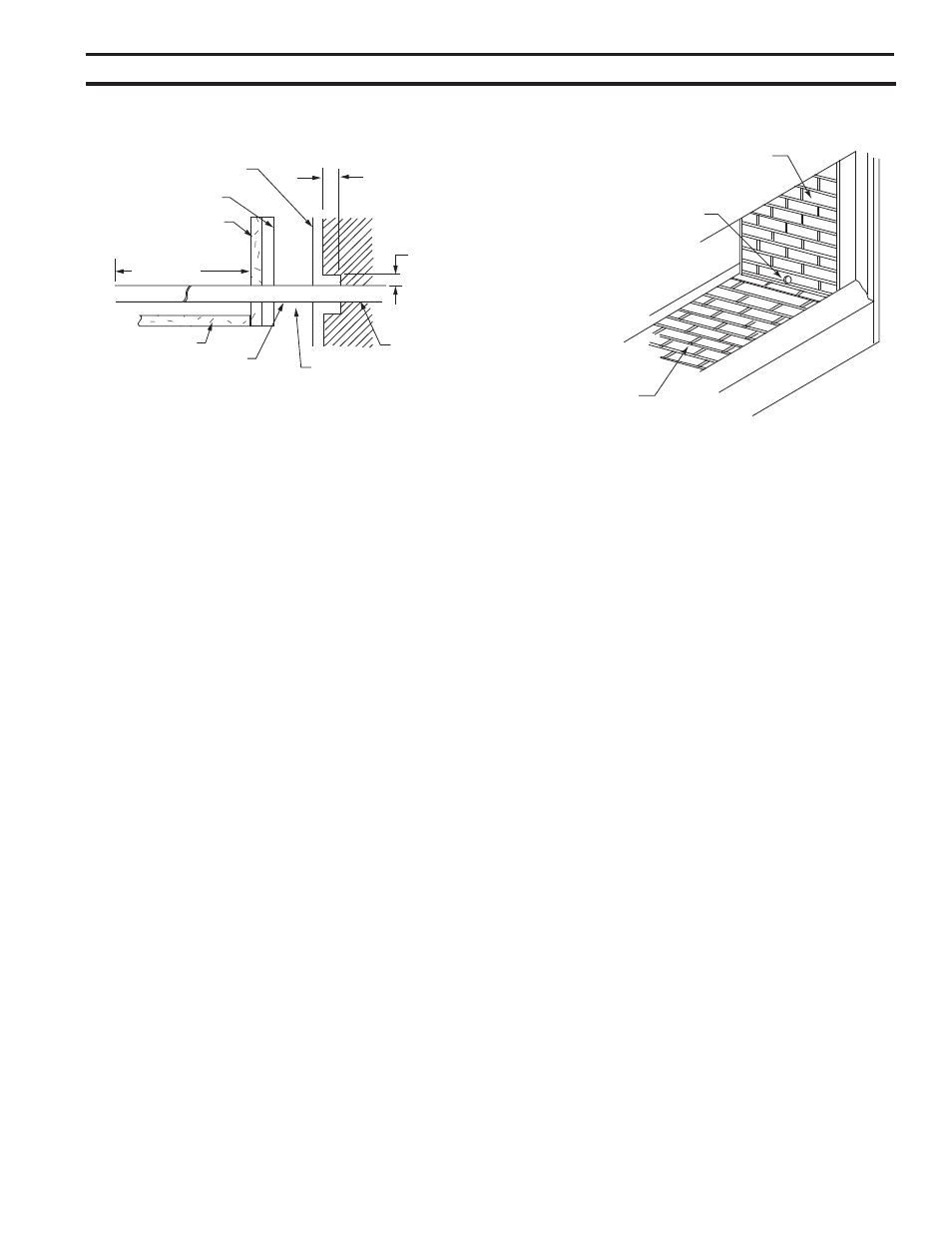

gas line installation
4”
cautioN: When using a gas appliance, the fireplace
damper must be set in fully open position.
Figure 26
Outer Fireplace Wrap
Inner Fireplace Wrap
Side Brick
24” Max.
Fireplace Firebox
Hearth Brick
Gas Line Access Tube
Repack Insulation Around
Gas Line Where it Passes
Through Gas Line Access
Tube for Proper Seal
Maintain 1/2” Minimum Air Space
Clearance to Combustibles for
Gas Line Out to 4” From Side of
the Fireplace
Combustible Materials May Be Located
at Zero Clearance to Gas Line Beyond
4” From Fireplace Side.
gas line Plumbing detail
FP2356
FP2357
gas line knockout
Side Brick
Knockout
Hearth Refractory
FP2357
