624WBPF Woodburning Fireplace outSide coMBuStioN air
1 2 3
2“
App.
FP1906
Duct connector
8/08
Loop Disengaged
Clamp Around
Duct
Slip Band
Through
Housing
Snap Screw
Down and
Tighten
Figure 23
FP1906

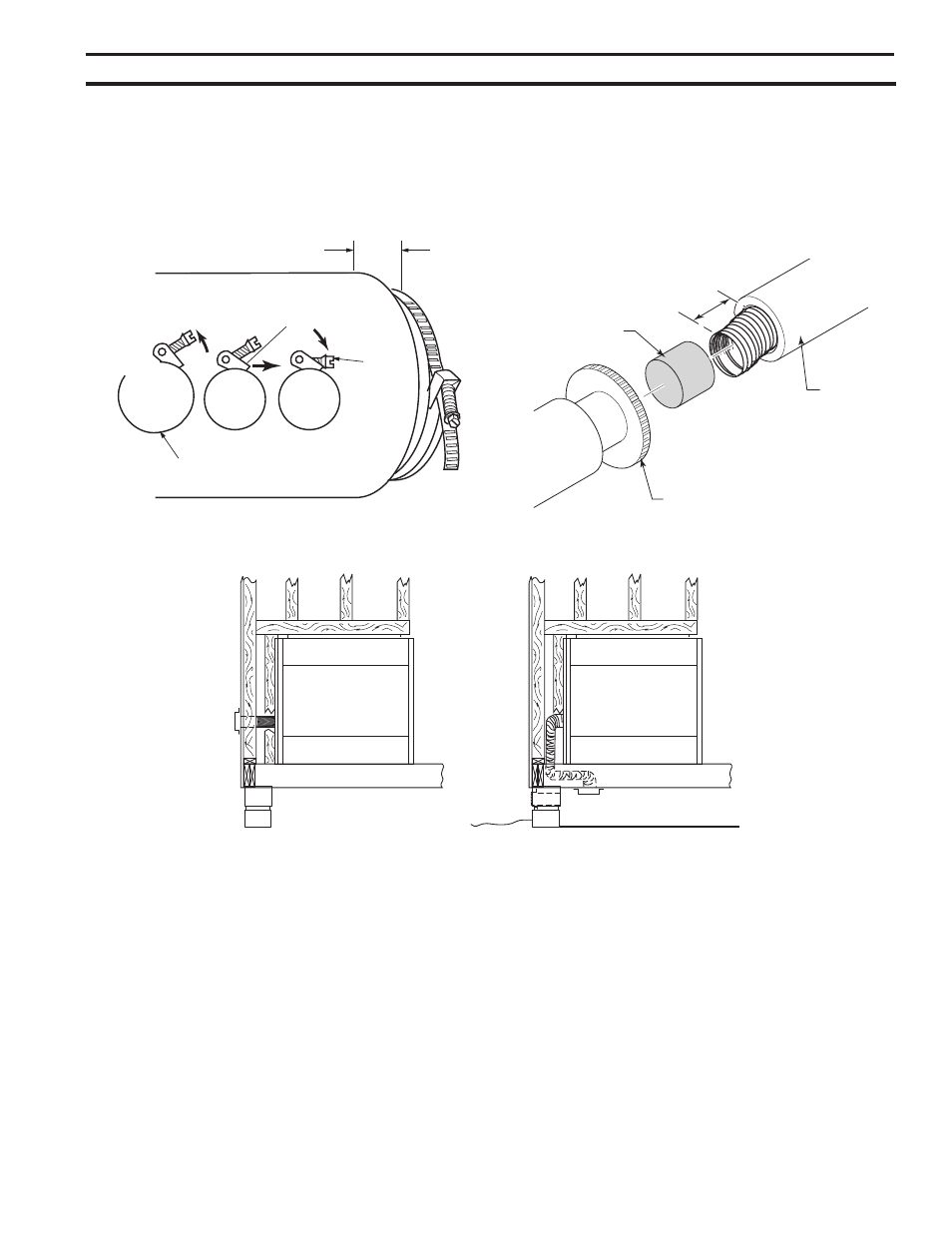

installing Model 403 duct connector
1. Push insulation back approximately 2” from the end of each duct.
2. Slip each duct over duct connector until an equal length of connector extends into each duct.
3. Place duck clamp over the end of each duct. Tighten duct clamp down snuggly.
4. Push insulation back into place and over duct clamp.
FP1907
Duct connector
8/08
Approximately
2”
Duct Connector
Insulation
Duct Clamp
FP1907
Figure 24
FP2355
outside air location
Figure 25
typical Methods
of outside air kit
installation
AK-4 Air Kit Installed Hori-
zontally out an Exterior Wall
AK-4 Air Kit Installed Downward into
an Adequately Vented Crawl Space
FP2355
