MITSUBISHI ELECTRIC 2033C SERIES UPS
3.0 INSTALLATION AND OPERATION
3.1 Transportation and Installation
TABLE 3.1 How to transport and install the system
Transportation Installation
Transport unit with forklift. Pull out the UPS cabinet as shown in Figure 3.1
Fix the UPS unit in place using the four (4) leveling feet.
Note : Do not transport in a horizontal position. Cabinets should be maintained upright within +/-
15° of the vertical during handling.
3.2 Handling
The UPS is shipped in export packaging. Remove the UPS from the package only when it is
ready for installation.

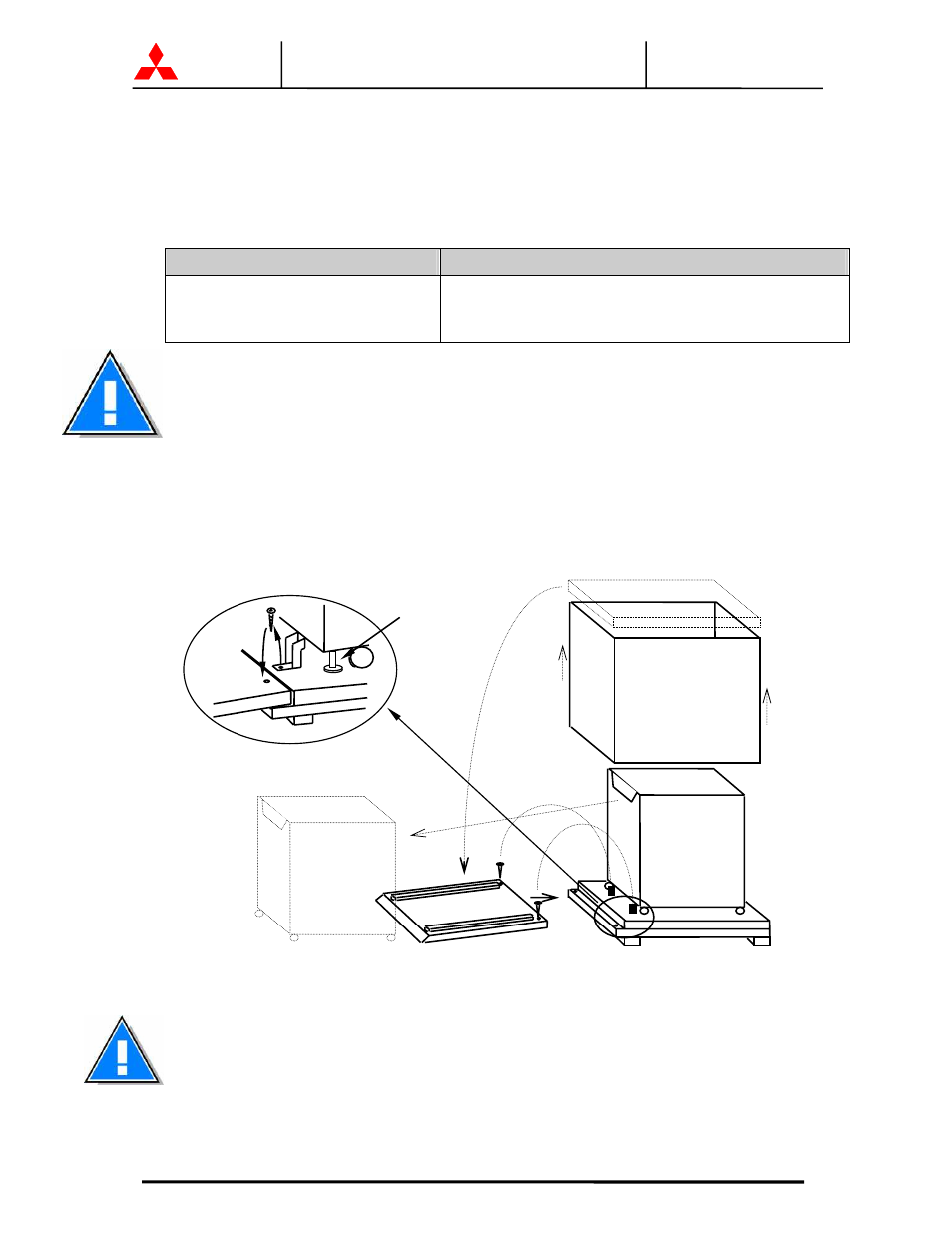

FIGURE 3.1 Handling
Note : The figure 3.1 export packaging is for 7.5kVA through 20kVA UPS only.
RAMP
Roof of the package
during shipping
5
1
2
3
4
Leveling
feet
