MITSUBISHI ELECTRIC 2033C SERIES UPS
MITSUBISHI
ELECTRIC 2033C SERIES UPS
OWNERS / TECHNICAL MANUAL
Page Number:
1-11

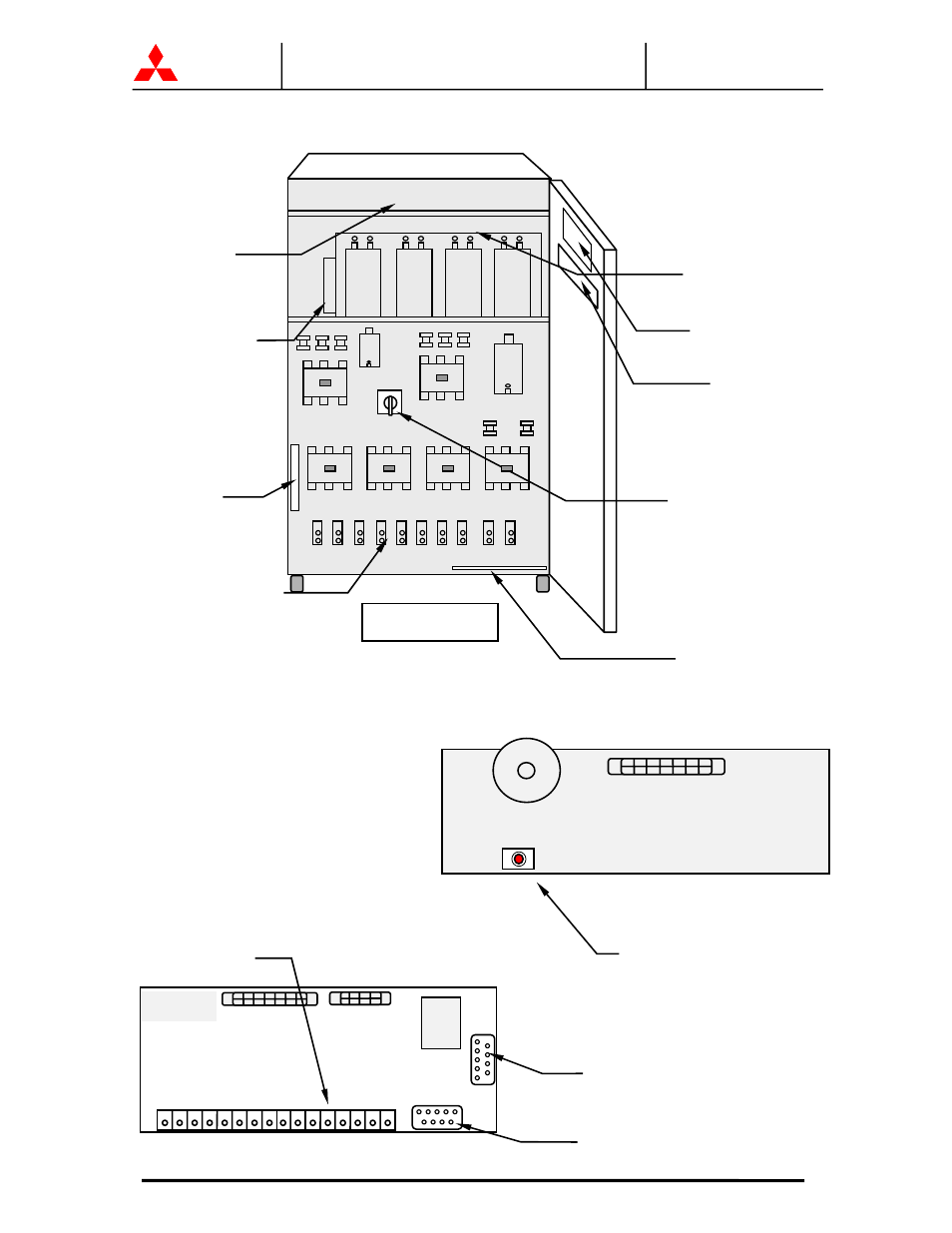

FIGURE 1.5c UPS Parts Location(40,50kVA)
FIGURE 1.6 Display PCB DPAU-72
FIGURE 1.7 External I/F PCB RYDR-X
DPAU-57
DPAU-72
8.SW5
TEST switch
RYDR-X
10.CN62 RS232C
D-sub Connector
9.External contact
signal terminal block
11.CN64 RS232C
D-sub Connector
4.Main PCB
UPFR-K
UPS module
FRONT VIEW
Converter &
Inverter Unit
7.Maintenance bypass
transfer switch SWM
5.AC input, AC output
terminal
Cooling fan
2.Display PCB
DPAU-72
6.Grounding bar
3.Relay PCB
RYDR-X
1.LCD touch pane
monitor display
