Page 27

Chapter 2
2-14

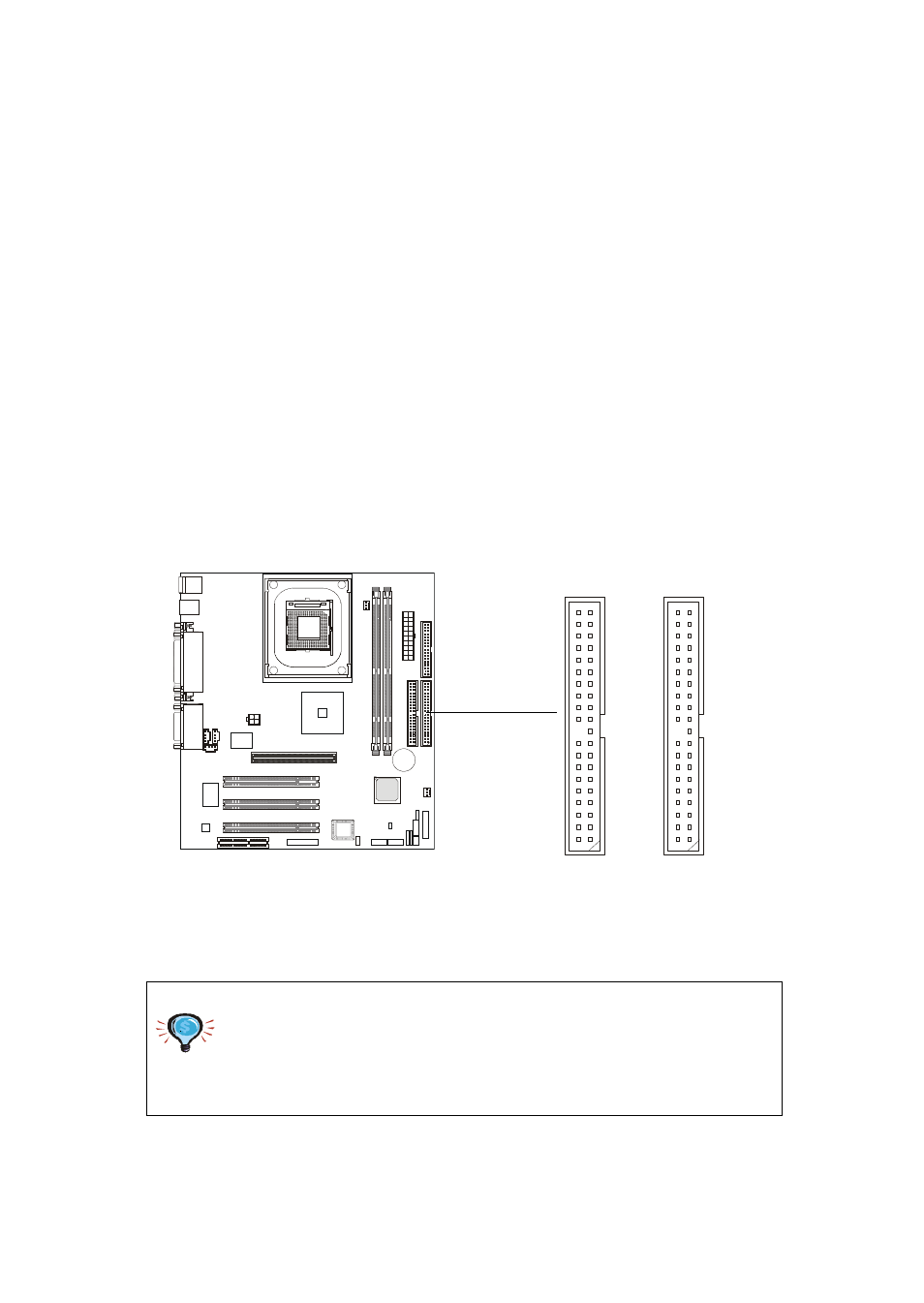

Hard Disk Connectors: IDE1 & IDE2
The mainboard uses an IDE controller on the Intel
®
ICH2 chipset that
provides PIO mode 0-4, Bus Master, and Ultra DMA 66/100 modes. It has two
HDD connectors IDE1 (Primary) and IDE2 (Secondary). You can connect up to
four hard disk drives, CD-ROM or 120MB Floppy to IDE1 and IDE2.
IDE1 (Primary IDE Connector)
- The first hard disk drive should always be connected to IDE1. You can
connect a Master and a Slave drive to IDE1.
IDE2 (Secondary IDE Connector)
- You can connect a Master and a Slave drive to IDE2.
Prim
ar
y I
D
E
Co
nn
ec
to
r
S
eco
n
d
a
ry
I
D
E
Co
n
n
ecto
r
If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for
jumper setting instructions.
TIP
1
2
40 39
1
2
40 39
