Chapter 2
2-14

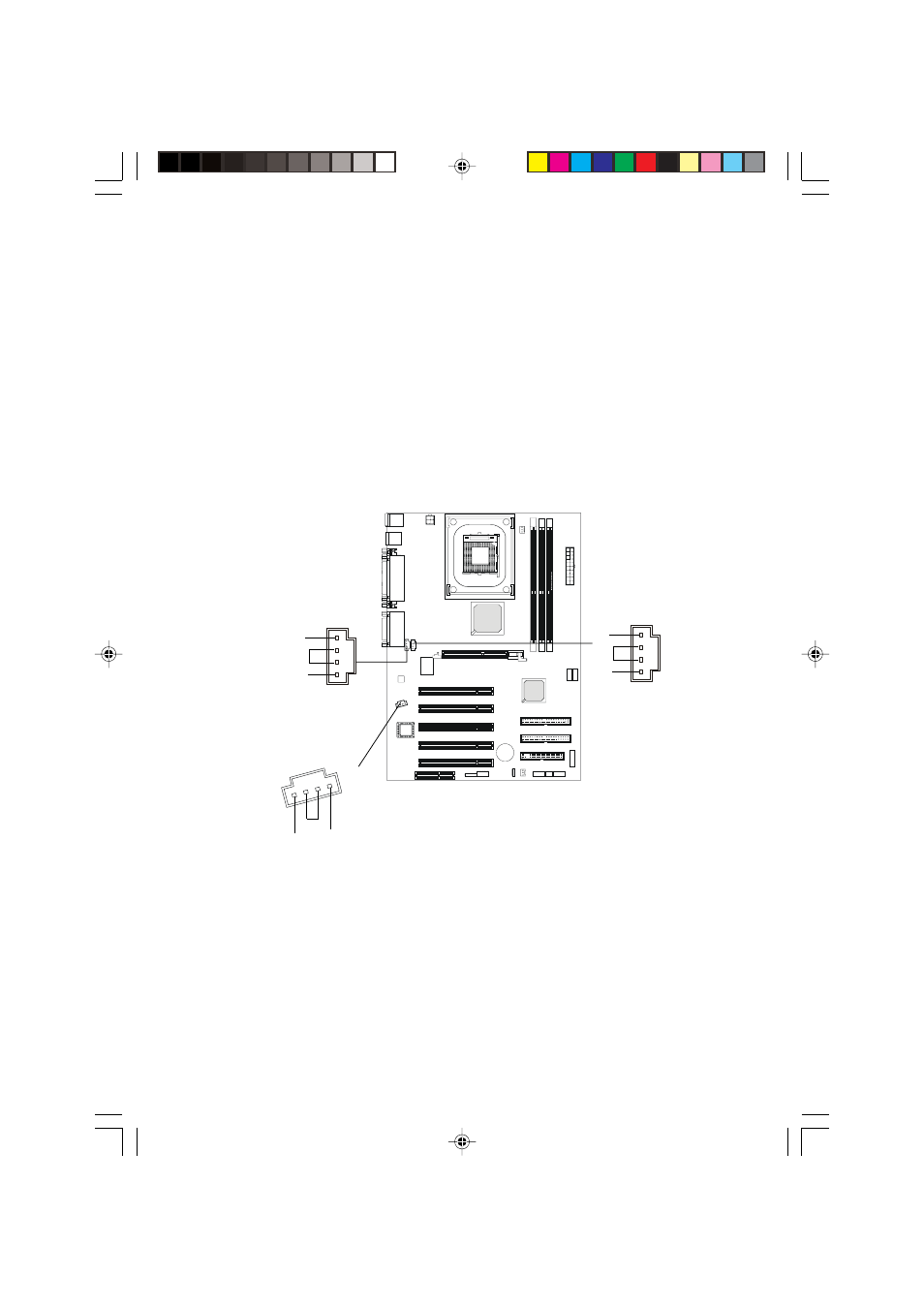

Modem-In Connector: JMD1
The connector is for modem with internal audio connector.
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
Aux Line-In Connector: JAUX1
The connector is for DVD add-on card with Line-in connector.
JCD1
GND
R
L
JAUX1
GND
R
L
JMD1
GND
Phone_In
Mono_Out
