Chapter 2
2-6
You can install either single sided or double sided 184-pin DDR DIMM
modules into DDR DIMM slots to meet your needs. Different from the SDR
DIMM, the DDR DIMM has only one notch on the center of module. The
number of pins on either side of the breaks are different. The module will only
fit in the right orientation.
You can install memory modules in any combination as follows:
S l o t M e m o r y M o d u l e T o t a l M e m o r y
S l o t 1
( B a n k 0 & B a n k 1 ) 6 4 M B , 1 2 8 M B ,
2 5 6 M B , 5 1 2 M B , 1 G B 6 4 M B ~ 1 G B
S l o t 2
( B a n k 2 & B a n k 3 ) 6 4 M B , 1 2 8 M B ,
2 5 6 M B , 5 1 2 M B , 1 G B 6 4 M B ~ 1 G B
S l o t 3
( B a n k 4 & B a n k 5 ) 6 4 M B , 1 2 8 M B ,
2 5 6 M B , 5 1 2 M B , 1 G B 6 4 M B ~ 1 G B
M a x i m u m S y s t e m M e m o r y S u p p o r t e d 6 4 M B ~ 3 G B

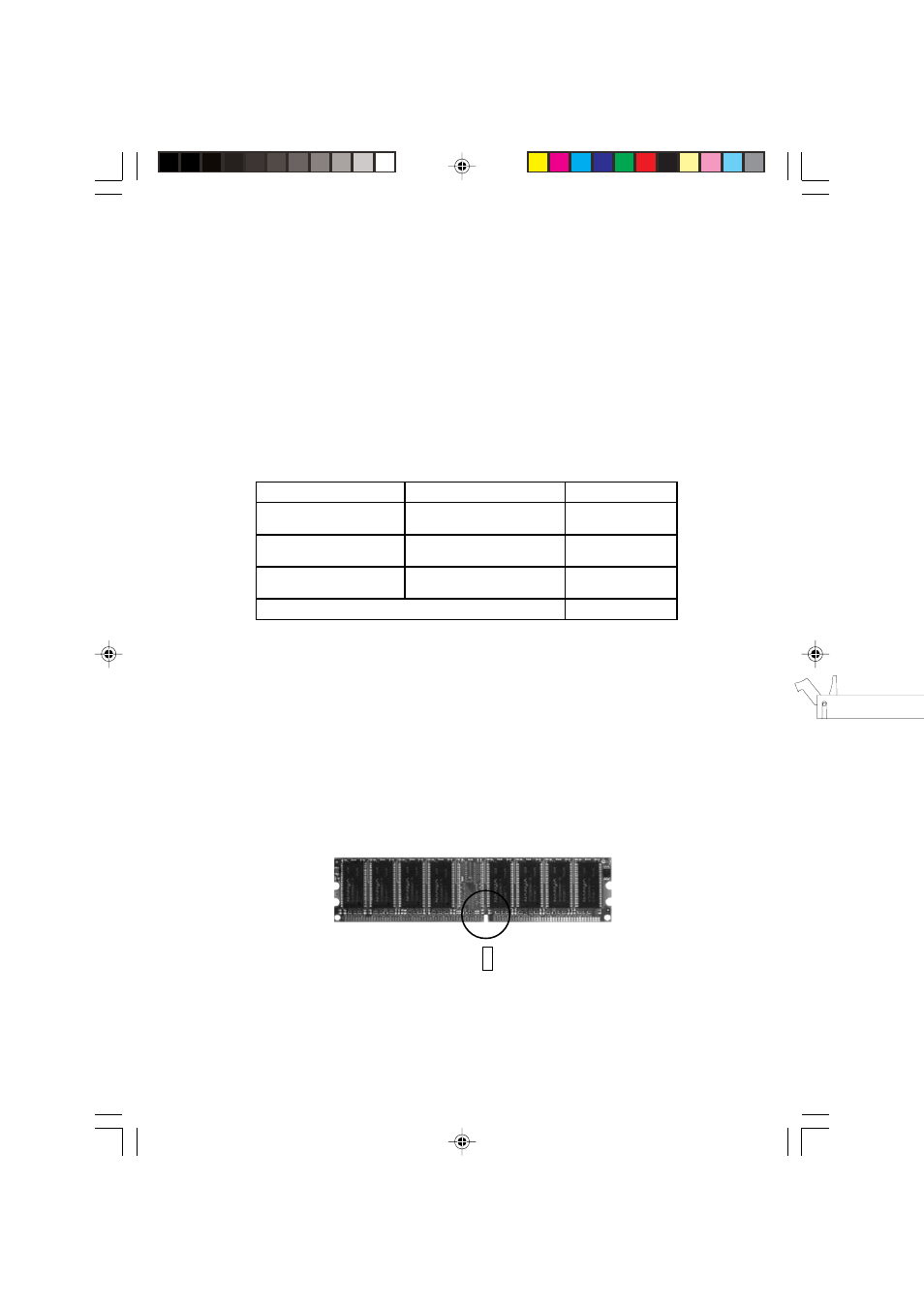

1. The DDR DIMM module has only one notch on the center.
2. Insert the DDR module vertically into the DDR DIMM slot. Make sure the
notch is on the right orientation.
3. The plastic clips at sides of the DIMM slot will automatically close.
Volt
Front View Rear View
DDR Module Combination
Installing DDR Modules
