Rear Panel

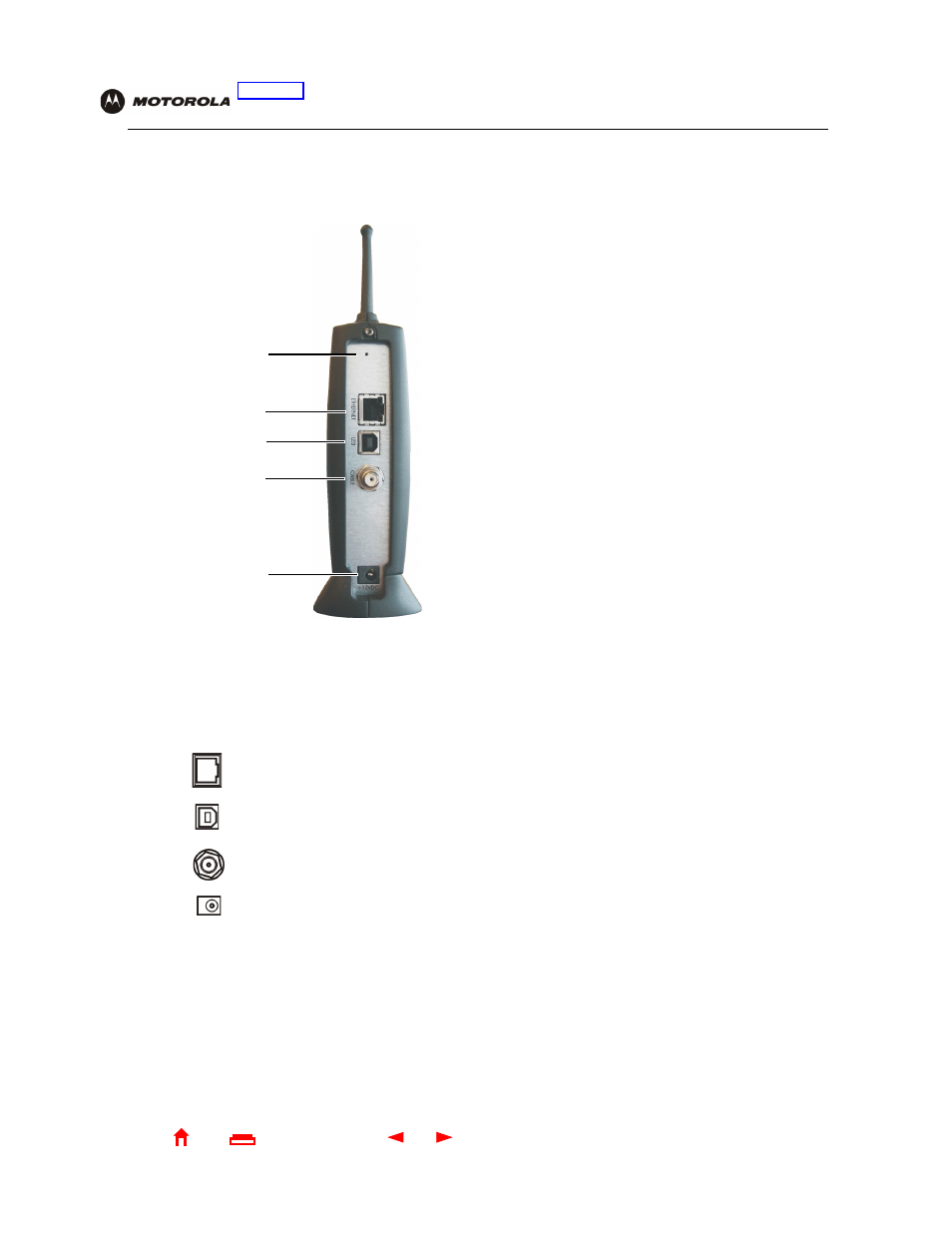

The rear panel provides cabling connectors, status lights, and the power receptacle:
Key
Item
Description
1
•
If you experience a problem, you can push this recessed button to restart the SBG900 (see
“
”). To reset all values to their defaults, hold down the button for more than five
seconds
.
Resetting may take 5 to 30 minutes because the SBG900 must find and lock on the
appropriate communications channels.
2
ETHERNET
port to connect an Ethernet LAN cable with RJ-45 connectors to an
Ethernet-equipped computer, hub, bridge, or switch.
3
For Windows
only, use the
USB
port for
Connecting a PC to the USB Port
. You cannot connect the
SBG900 USB port to a Macintosh or UNIX computer.
4
The
CABLE
port provides a connection to the
outlet.
5
The +12
VDC
power connector to the external power supply.
1
2
4
5
3
