ADVANCED FEATURES Menu: CONVERGENCE
CONVERGENCE Menu
(Figure 1)
Your Mitsubishi TV has three picture tubes
which are aligned to properly converge the
projected light beams on the screen. Each
picture tube projects a single color of red, blue
or green. During production, your TV was
carefully adjusted to properly align these colors.
As a special feature, you have the ability to
adjust the red and blue light beams in reference
to the fixed green light beam. This process
is called convergence. Convergence aligns
the entire screen at once. Select either Red
Convergence or Blue Convergence to begin
alignment.
C
O
N
V
E
R
G
E
N
C
E
MAIN MENU
ENTER for menu or to start
MENU to return
or change option
ENTER for menu
MENU to return ADJUST to select
ADVANCED FEATURES MENU
CONVERGENCE menu
Red Convergence
Blue Convergence
Reset Factory Default

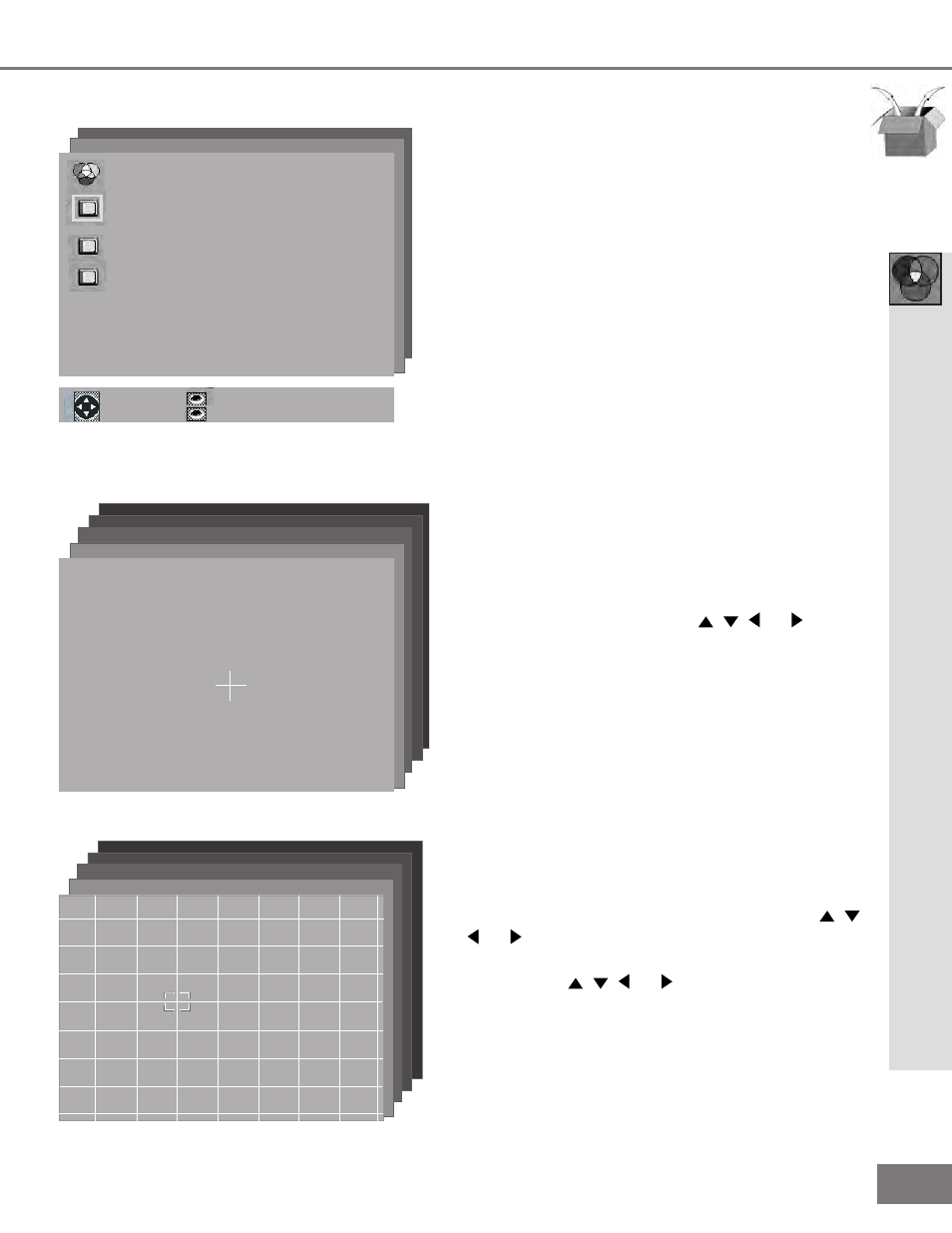

Figure 1. CONVERGENCE menu
CONVERGENCE MENU
ADVANCED FEATURES MENU
MAIN MENU
Red
Press ADJUST to converge the lines
Press VIDEO to switch to Blue
Press MENU to go back
Press CANCEL to delete changes
Press AUDIO to Advanced Convergence
Figure 2. Convergence screen
Convergence Screen
(Figure 2)
When the Red and Blue crosshairs are properly
converged, the center-screen crosshairs will
appear white. You can use , , , or
to move the Red and Blue crosshairs. Press
VIDEO to switch between Red and Blue. Press
AUDIO for the Advanced Convergence screen.
Advanced Convergence
(Figure 3)
After adjusting the Red Convergence and Blue
Convergence, you can fine-tune your TV by
adjusting the Red and Blue convergence at 64
individual points. Move the flashing bracket to
a position needing adjustment by pressing ,
, or . Press ENTER to select the position
(flashing will stop). Move the Red or Blue line
by pressing , , , or . Press VIDEO to
switch between the Red and Blue lines. A
position is properly converged when all three
lines combine to appear white. Press ENTER to
deselect the position (flashing will resume), and
move the brackets to the next position
needing adjustment. When completed, press
MENU to save your changes, and exit the
Advanced Convergence screen.
CONVERGENCE MENU
ADVANCED FEATURES MENU
MAIN MENU
RED OR BLUE CONVERGENCE
Press INFO for help
Figure 3. Advanced Convergence screen
