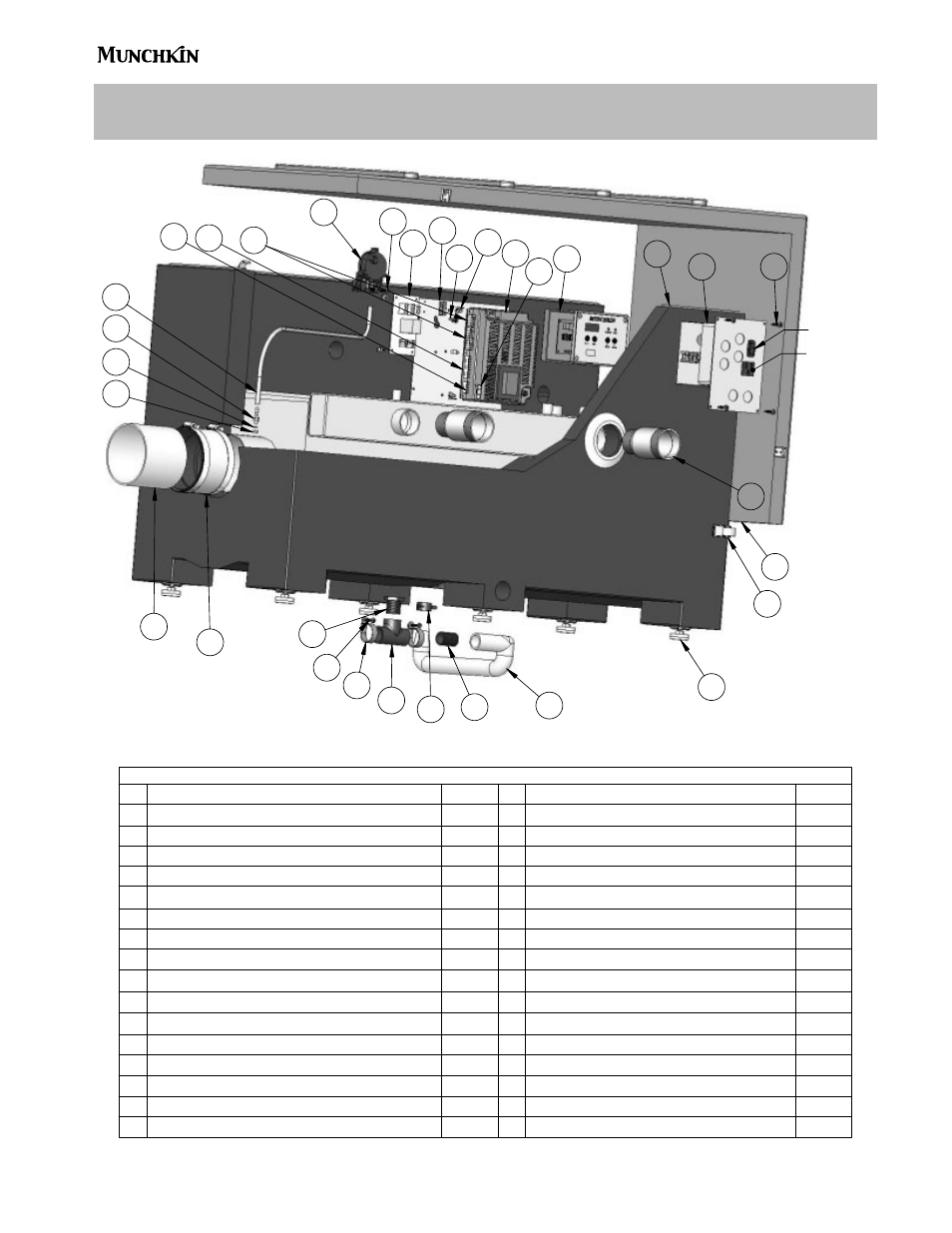

REPLACEMENT PARTS

Item

#

Description

Part #

Item

#

Description

Part #

1

Blocked Vent Pressure Switch

7250P-150

17

PVC Nipple Sch. 80 3/4 NPT (Condensate Assembly)

7250P-648

2

Screws # 8 x 1/2" Self Tapping (Blocked Vent Pressure Switch)

7250P-133

18

Spring Clamp (Condensate Assembly)

7250P-302

3

Relay Board

7250P-580

19

PVC Tee Sch. 30 3/4 NPT (Condensate Assembly)

7250P-646

4

Control Board Mounting Panel (w/Screws)

7250P-651

20

Cable Clamp (Condensate Assembly)

7250P-649

5

Screw 1/4-20 x 1/2" (Control Board Mounting Panel)

7250P-184

21

Screw # 8 x 1/2" Self Tapping (Condensate Assembly)

7250P-133

6

Control Board Hold Down Clips

7250P-352

22

Poly Plug 3/4 NPT (Condensate Assembly)

7250P-647

7

Control Board (w/Fuse)

7250P-317

23

Band Clamp (Exhaust Assembly)

7250P-549

8

Fuse (Control Board)

7250P-378

24

PVC Pipe Sch. 40 4" (Exhaust Assembly)

7250P-524

9

Control Board Display (w/Ribbon Cable)

7250P-332

25

S.S. Hex Nut 10-32 (Blocked Vent Pressure Switch)

7250P-153

10

Electrical Box (w/Screws)

7250P-707

26

O-Ring 007 (Blocked Vent Pressure Switch)

7250P-152

11

Screws # 8 x 1/2" Self Tapping (Electrical Box)

7250P-133

27

S.S. Hose Barb 1/4 x 10-32 (Blocked Vent Pressure Switch) 7250P-154

12

Brass Nipple 1-1/2 x 2 x 3-3/4"

7250P-514

28

Plastic Tubing 3/16" ID (Blocked Vent Pressure Switch)

7000P-805

13

Cabinet Cover

7250P-501

29

5 Pin Wiring Harness (location)

7250P-696

14

Cabinet Latch and Gasket Kit (w/Screws)

7250P-671

30

9 Pin Wiring Harness (location)

7250P-697

15

Leveling Foot

7250P-673

31

Low Voltage Wiring Harness (location)

7250P-699

16

Condensate Hose Assy

7250P-082

14

GAS-FIRED BOILER

User Manual

REPLACEMENT PARTS

(CONTINUED)

399M
