Page 12: Gas-fired boiler

background image

11

GAS-FIRED BOILER

User Manual

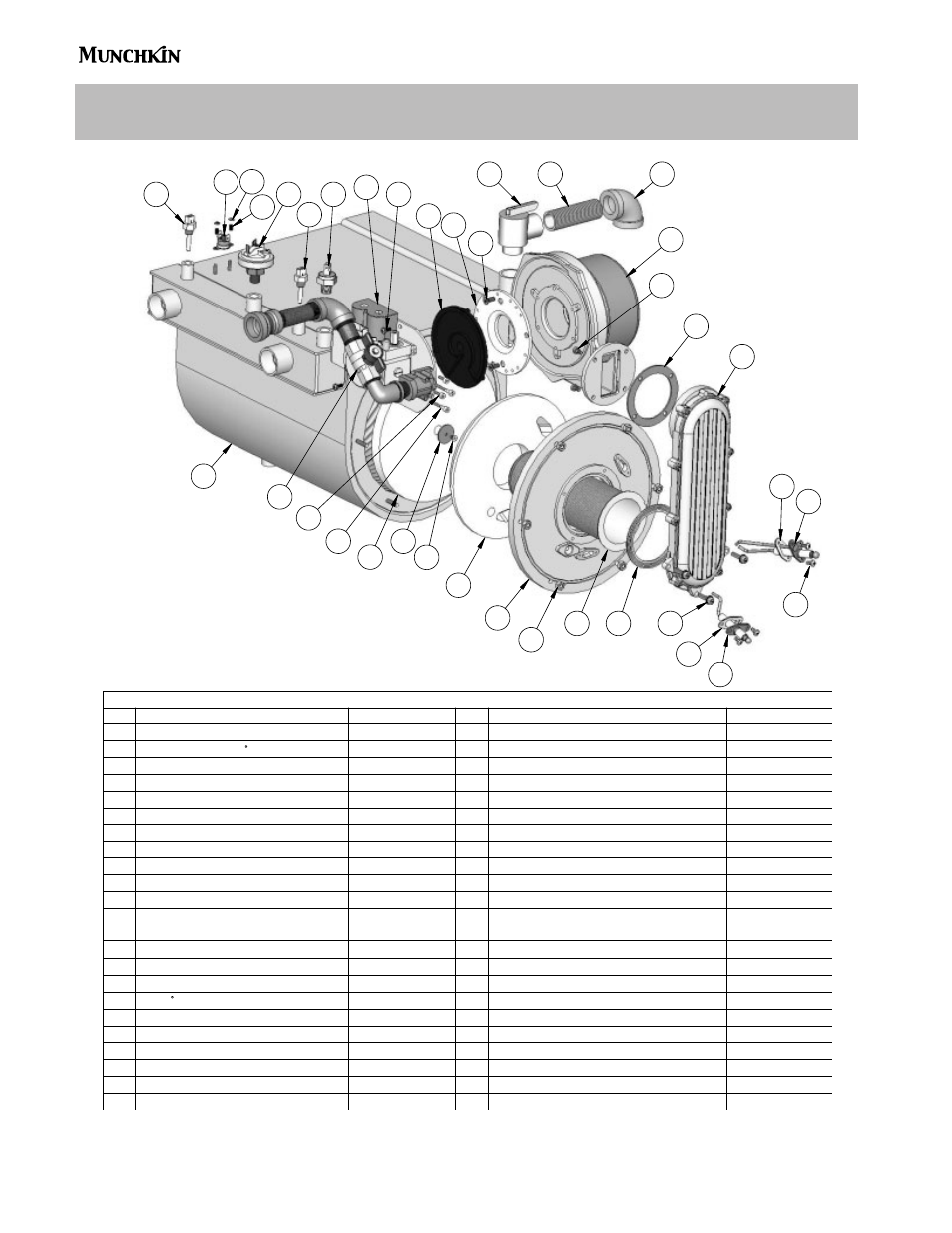

REPLACEMENT PARTS

(CONTINUED)

REPLACEMENT PARTS

Item #

Description

Part #

Item #

Description

Part #

1

Thermistor

7250P-667

18

Air/Gas Channel

7250P-685 (80M)

2

Thermodisc Flue ECO 210 F

7250P-089

7250P-687 (140M/199M)

3

Steel Push Retainer (Thermodisc Flue ECO)

7250P-151

19

Gasket (Flame Rec./Spark Electrode)

7250P-005

4

PVC Black Tubing 1/8 ID (Thermodisc Flue ECO)

7250P-311

20

Spark Electrode (w/Gasket)

7500P-040

5

Water Pressure Switch

7250P-096

21

Screws M4 x 8MM (Probe/Electrode)

7250P-069

6

Eco/High Limit Sensor

7250P-019

22

Flame Rectification Probe (w/Gasket)

7500P-039

7

Dungs Gas Valve

7250P-450 (80M)

23

Screws Torx M5 x 22M (Air/Gas Channel to Burner Door) 7250P-206

7250P-451 (140M)

24

Gasket (Air/Gas Channel to Burner)

7500P-074

7250P-452 (199M)

25

NIT Burner

7500P-016 (80M)

8

Screws M4 x 12MM (Gas Valve)

7500P-099

7250P-102 (140M)

9

Swirl Plate

7500P-092 (80M)

7250P-117 (199M)

7500P-093 (140M/199M)

26

Nut M6 (Burner Door)

7500P-067

10

Gas Valve Adapter Plate (w/Screws)

7250P-644

27

Burner Door

7250P-684

11

Screws M5 x 12MM (Gas Valve Adapter Plate)

7250P-484

28

Burner Door Ceramic Refractory

7250P-702

12

Relief Valve

7250P-080

29

Screw M4 x 8MM (Ceramic Target Wall)

7250P-704

13

Brass Nipple 3/4 NPT x 3"

SN1018

30

Washer M4 (Ceramic Target Wall)

7500P-109

14

Brass 90 Elbow - 3/4 NPT

7250P-313

31

Ceramic Target Wall

7250P-160

15

Combustion Blower (w/Gasket)

7250P-084 (80M)

32

Screws M4 x 30MM Allen Head (Gas Piping Assy)

N/A

7250P-086 (140M)

33

Screws M4 x 12MM Allen Head (Gas Piping Assy)

N/A

7250P-087 (199M)

34

Gas Piping Assembly (w/Shut-off Valve, Screws)

7250P-705

16

Screws M5 x 14MM (Combustion Blower)

7250P-478

35

Welded Module

7250P-298 (80M)

17

Gasket (Air/Gas Channel to Combustion Blower) 7500P-075

7250P-299 (140M)

7250P-300 (199M)

21

23

13

22

16

1

2

3

4

5

1

6

7

8

9

10

11

34

33

32

31

30

29

28

27

26

25

24

19

12

15

14

17

18

19

20

35

80M/140M/199M
