10

GAS-FIRED BOILER

User Manual

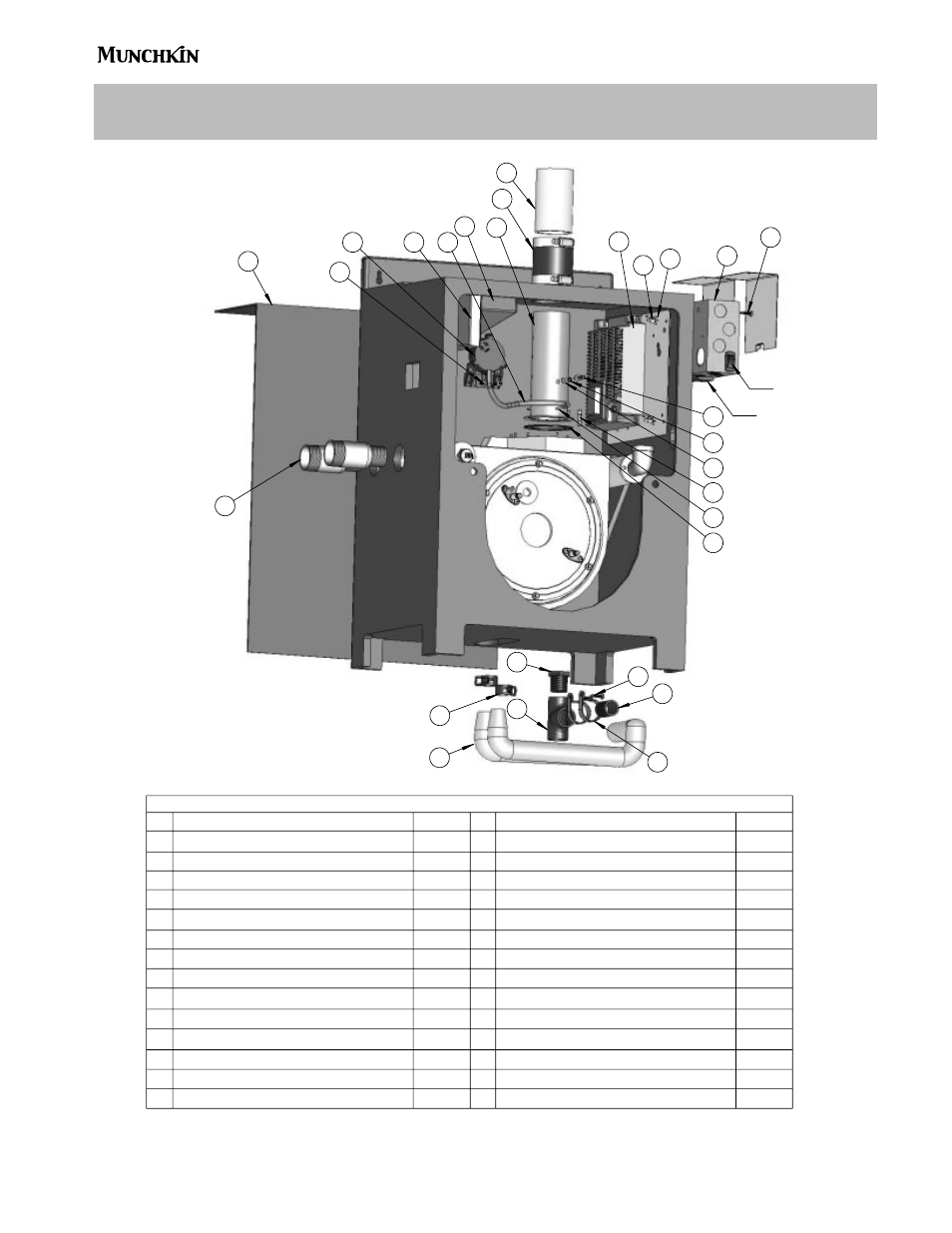

REPLACEMENT PARTS

Item

#

Description

Part #

Item

#

Description

Part #

1

Exhaust Vent Pipe - 2" PVC

N/A

15

Screws # 8 x 1/2" (Electrical Box)

7250P-133

2

Pipe Coupling

F3001

16

Hose Barb 1/4 x 10-32 (Blocked Vent Pressure Switch)

7250P-154

3

Exhaust Manifold Tube

7250P-444

17

O-Ring 007 (Blocked Vent Pressure Switch)

7250P-152

4

Air Inlet Baffle

7250P-145

18

S.S. Hex Nut 10-32 (Blocked Vent Pressure Switch)

7250P-153

5

Plastic Tubing 3/16" ID (Blocked Vent Pressure Switch) 7250P-378

19

Fuse (Control Board)

7250P-378

6

Control Board Display (w/Ribbon Cable)

7250P-332

20

S.S. Hex Nuts

7250P-559

7

Blocked Vent Pressure Switch

7250P-150

21

Gasket (Top Flue Exhaust Pipe)

7250P-427

8

Screws # 8 x 1/2" (Blocked Vent Pressure Switch)

7250P-133

22

Poly Plug 3/4 NPT (Condensate Assy)

7250P-647

9

Cover

N/A

23

Screw # 8 x 1/2" (Condensate Assy)

7250P-133

10

Brass Nipple 1 x 1-1/4 x 3-3/4"

7250P-221

24

PVC Nipple Sch. 80 3/4 NPT (Condensate Assy)

7250P-648

11

Control Board (w/Fuse)

7250P-317

25

Cable Clamp (Condensate Assy)

7250P-649

12

Control Board Hold Down Clips

7250P-352

26

PVC Tee Sch. 40 3/4 NPT (Condensate Assy)

7250P-646

13

Control Board Mounting Panel (w/Screws)

7250P-651

27

Condensate Hose Assy

7250P-482

14

Electrical Box (w/Screws, Covers)

7250P-114

28

Spring Clamp (Condensate Assy)

7250P-302

27

10

1

2

3

4

6

7

8

28

SWITCH

14

15

BOILER

OUTLET

18

17

16

11

12

19

21

20

9

13

22

23

25

24

26

CONDENSATE

5

T50M/T80M

T50M/T80M

REPLACEMENT PARTS

(CONTINUED)
