Page 10: Gas-fired boiler

background image

9

GAS-FIRED BOILER

User Manual

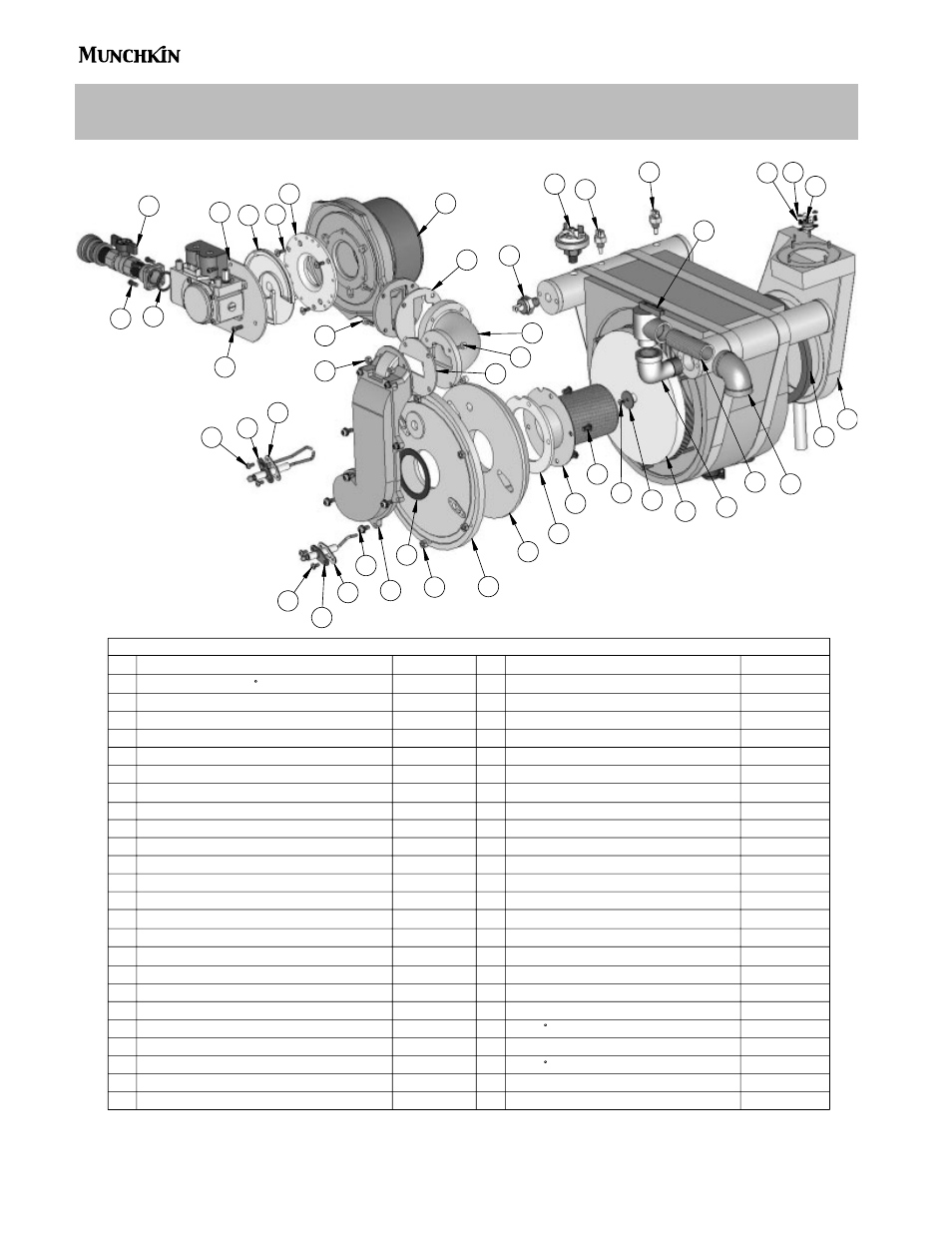

REPLACEMENT PARTS

Item

#

Description

Part #

Item

#

Description

Part #

1

Thermodisc Flue ECO 210 F

7250P-089

22

Nut M5 (Aluminum Elbow to Air Channel)

7250P-063

2

Steel Push Retainer (Thermodisc Flue ECO)

7250P-151

23

Gasket (Flame Rec./Spark Electrode)

7250P-005

3

PVC Black Tubing 1/8 ID (Thermodisc Flue ECO)

7250P-311

24

Spark Electrode (w/Gasket)

7250P-421 (T50M)

4

Relief Valve

7250P-080

7250P-058 (T80M)

5

Thermistor

7250P-059

25

Screws M4 x 8MM (Probe/Electrode)

7250P-005

6

Water Pressure Switch

7250P-081

26

Flame Rectification Probe (w/Gasket)

7250P-049

7

ECO High Limit Sensor

7250P-019

27

Screws Torx M5 X 22MM

7250P-206

8

Aluminum Elbow

7250P-445

28

Air Channel

7250P-692

9

Screws M5 X 25MM (Aluminum Elbow to Air Channel)

7250P-061

29

Gasket (Burner Door to Air Channel)

7250P-170

10

Gasket (Aluminum Elbow to Air Channel)

7250P-003

30

Nuts M6 (Burner Door)

7500P-067

11

Gasket (Aluminum Elbow to Combustion Blower)

7250P-144

31

Burner Door

7250P-691

12

Combustion Blower

7250P-084

32

Burner Door Ceramic Refractory

7250P-702

13

Gas Valve Adapter Plate (w/Screws)

7250P-644

33

Gasket (Burner)

7250P-070

14

Screws M5 x 12MM (Gas Valve Adapter Plate)

7250P-484

34

Burner

7250P-216 (T50M)

15

Swirl Plate

7500P-091 (T50M)

7250P-248 (T80M)

7250P-092 (T80M)

35

Screws (Burner)

7250P-204

16

Dungs Gas Valve

7250P-448 (T50M)

36

Screw M4 x 8MM (Ceramic Target Wall)

7250P-704

7250P-449 (T80M)

37

Washer M4 (Ceramic Target Wall)

7500P-109

17

Gas Piping Assembly (w/Shut-off Valve, Screws)

N/A

38

Ceramic Target Wall

7250P-160

18

Screws M4 x 12MM (Gas Valve Piping Assy)

7500P-099

39

Brass 90 Street Elbow 3/4 NPT

7250P-212

19

O-Ring (Gas Valve Piping Assy)

7500P-094

40

Brass Nipple 3/4 NPT x 3"

SN1018

20

Screws M4 x 12MM (Gas Valve)

7500P-099

41

Brass 90 Elbow 3/4 NPT

7250P-313

21

Screw M4 x 20MM (Combustion Blower)

7250P-060

42

Gasket (Top Flue Exhaust to Module)

7250P-428

43

Top Flue Exhaust

7250P-394

8

5

2

3

6

7

42

41

40

39

4

38

1

36

35

34

33

32

31

30

29

28

27

23

26

25

23

24

25

22

37

9

10

11

12

21

13

14

15

16

20

19

17

18

5

43

T50M/T80M

T50M/T80M

REPLACEMENT PARTS
