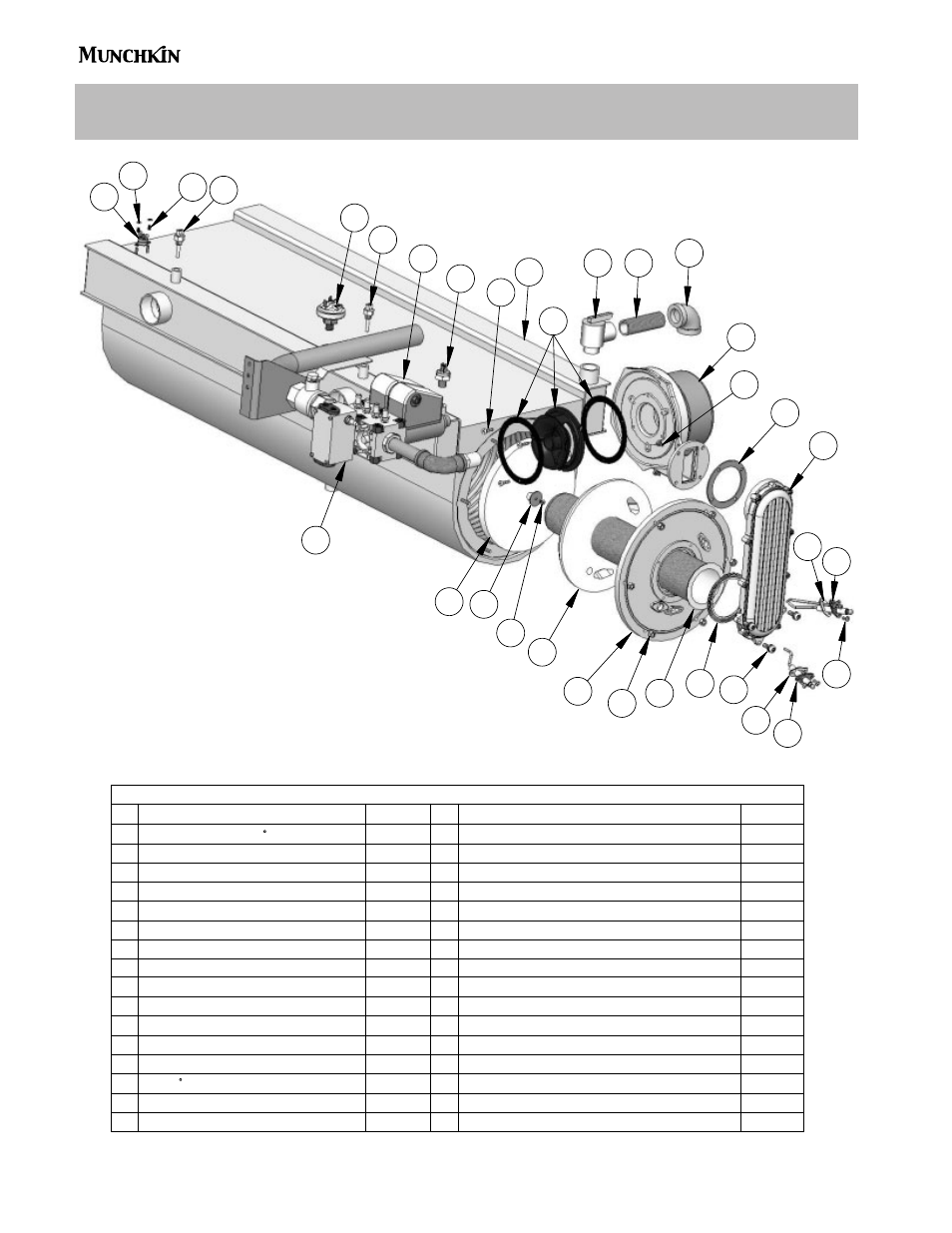

REPLACEMENT PARTS

Item

#

Description

Part #

Item

#

Description

Part #

1

Thermodisc Flue ECO 210 F

7250P-089

16

Screws M5 x 14MM (Combustion Blower)

7250P-478

2

Steel Push Retainer (Thermistor)

7250P-151

17

Gasket (Air/Gas Channel to Combustion Blower)

7500P-075

3

PVC Black Tubing 1/8 ID (Thermistor)

7250P-311

18

Air/Gas Channel

7250P-687

4

Thermistor

7250P-667

19

Gasket (Flame Rec./Spark Electrode)

7250P-005

5

Water Pressure Switch

7250P-096

20

Spark Electrode (w/Gasket)

7500P-040

6

Gas Valve Assembly

7250P-695

21

Screws M4 x 8MM (Probe/Electrode)

7250P-069

7

Gas Valve Solenoid Kit

7250P-701

22

Flame Rectification Probe (w/Gasket)

7250P-049

8

Eco/High Limit Sensor

7250P-019

23

Screws Torx M5 x 22MM (Air/Gas Channel to Burner Door) 7250P-206

9

Screws M4 x 16MM (Air/Gas Mixer)

7250P-708

24

Gasket (Air/Gas Channel to Burner)

7500P-074

10

Welded Module

7250P-622

25

NIT Burner

7250P-703

11

Air/Gas Mixer (w/Rings, Cork Gasket, Screws)

7250P-545

26

Nuts M6 (Burner Door)

7500P-067

12

Relief Valve

7250P-080

27

Burner Door

7250P-684

13

Brass Nipple 3/4 NPT x 3"

SN1018

28

Burner Door Ceramic Refractory

7250P-702

14

Brass 90 Elbow - 3/4 NPT

7250P-313

29

Screw M4 x 8MM (Ceramic Target Wall)

7250P-704

15

Combustion Blower (w/Gasket)

7250P-518

30

Washer M4 (Ceramic Target Wall)

7500P-109

31

Ceramic Target Wall

7250P-160

6

4

31

26

1

2

3

5

4

8

9

7

12

13

14

15

16

17

18

19

20

21

22

19

23

24

25

27

28

29

11

30

10

13

GAS-FIRED BOILER

User Manual

REPLACEMENT PARTS

(CONTINUED)

399M
