Page 13: Gas-fired boiler

background image

12

GAS-FIRED BOILER

User Manual

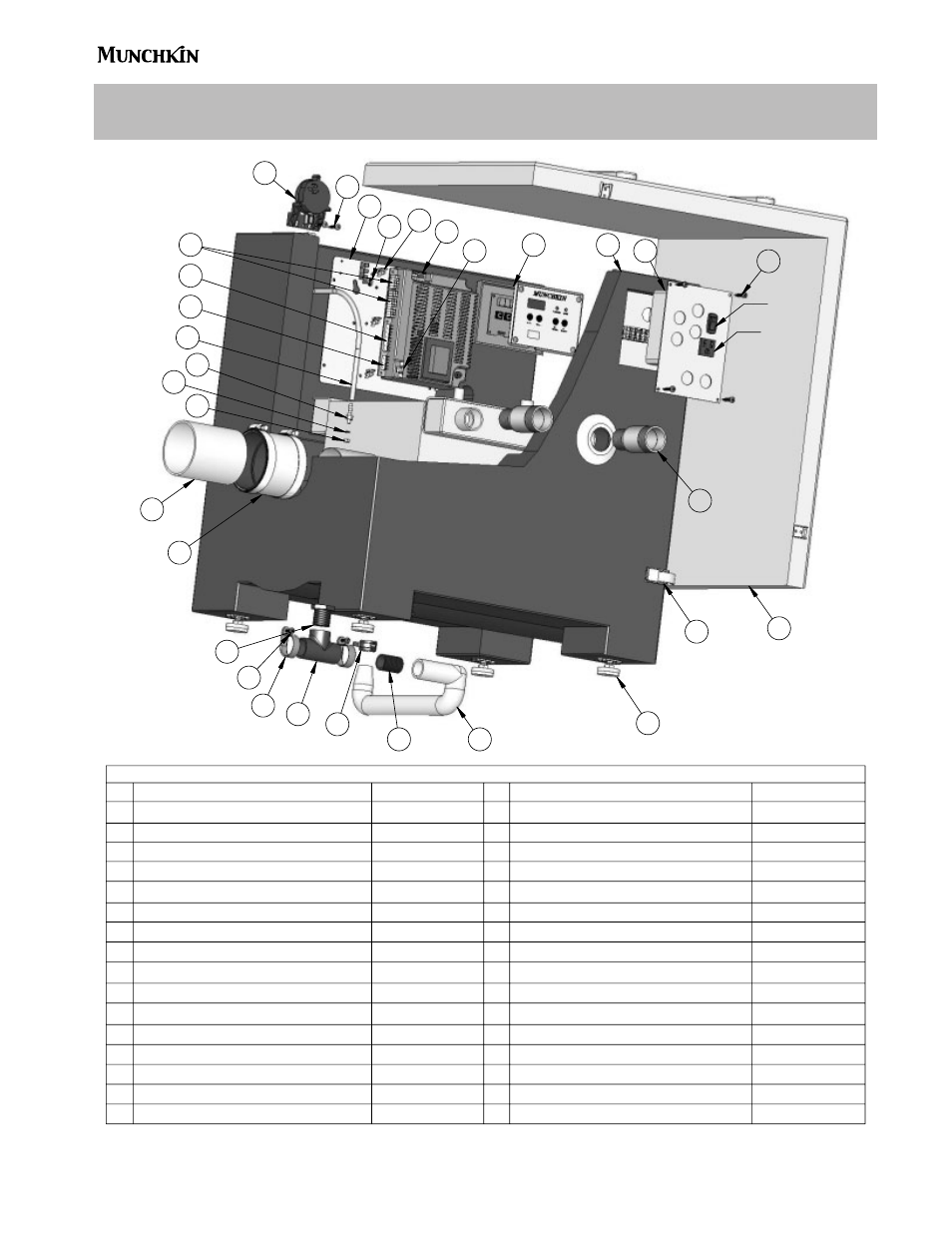

REPLACEMENT PARTS

(CONTINUED)

REPLACEMENT PARTS

Item

#

Description

Part #

Item

#

Description

Part #

1

Blocked Vent Pressure Switch

7250P-150

16

Cabinet Latch and Gasket Kit (w/Screws)

7250P-668 (80M)

2

Screws # 8 x 1/2" (Blocked Vent Pressure Switch)

7250P-133

7250P-669 (140M/199M)

3

Low Voltage Wiring Harness (location)

7250P-700

17

Leveling Foot

7250P-673

4

9 Pin Wiring Harness (location)

7250P-697

18

Condensate Hose Assy

7250P-082

5

5 Pin Wiring Harness (location)

7250P-696

19

PVC Nipple Sch. 80 3/4 NPT (Condensate Assy)

7250P-648

6

Control Board Mounting Panel (w/Screws)

7250P-651

20

Spring Clamp (Condensate Assy)

7250P-302

7

Screw 1/4-20 x 1/2" (Control Board Mounting Panel)

7250P-184

21

PVC Tee Sch. 40 3/4 NPT (Condensate Assy)

7250P-646

8

Control Board Hold Down Clips

7250P-352

22

Cable Clamp (Condensate Assy)

7250P-649

9

Control Board (w/Fuse)

7250P-317

23

Screw # 8 x 1/2 Self Tapping (Condensate Assy)

7250P-133

10

Fuse (Control Board)

7250P-378

24

Poly Plug 3/4 NPT (Condensate Assy)

7250P-647

11

Control Board Display (w/Ribbon Cable)

7250P-332

25

Band Clamp (Exhaust Assy)

CA2000

12

Electrical Box (w/Screws)

7250P-707

26

PVC Pipe Sch. 40 3" (Exhaust Assy)

7250P-242

13

Screws # 8 x 1/2" Self Tapping (Electrical Box)

7250P-133

27

S.S. Hex Nut 10-32 (Blocked Vent Pressure Switch)

7250P-153

14

Brass Nipple 1 x 1-1/4 x 3-3/4"

7250P-221

28

O-Ring 007 (Blocked Vent Pressure Switch)

7250P-152

15

Cabinet Cover

7250P-235 (80M)

29

Hose Barb 1/4 x 10-32 (Blocked Vent Pressure Switch) 7250P-154

7250P-231 (140M/199M)

30

Plastic Tubing 3/16" ID (Blocked Vent Pressure Switch

7000P-805

2

10

1

11

3

4

5

6

7

8

9

12

14

22

23

21

24

20

25

26

27

28

29

30

18

19

13

15

16

17

16

SWITCH

BOILER

CONDENSATE

OUTLET

80M/140M/199M
