3.1 Install HDD

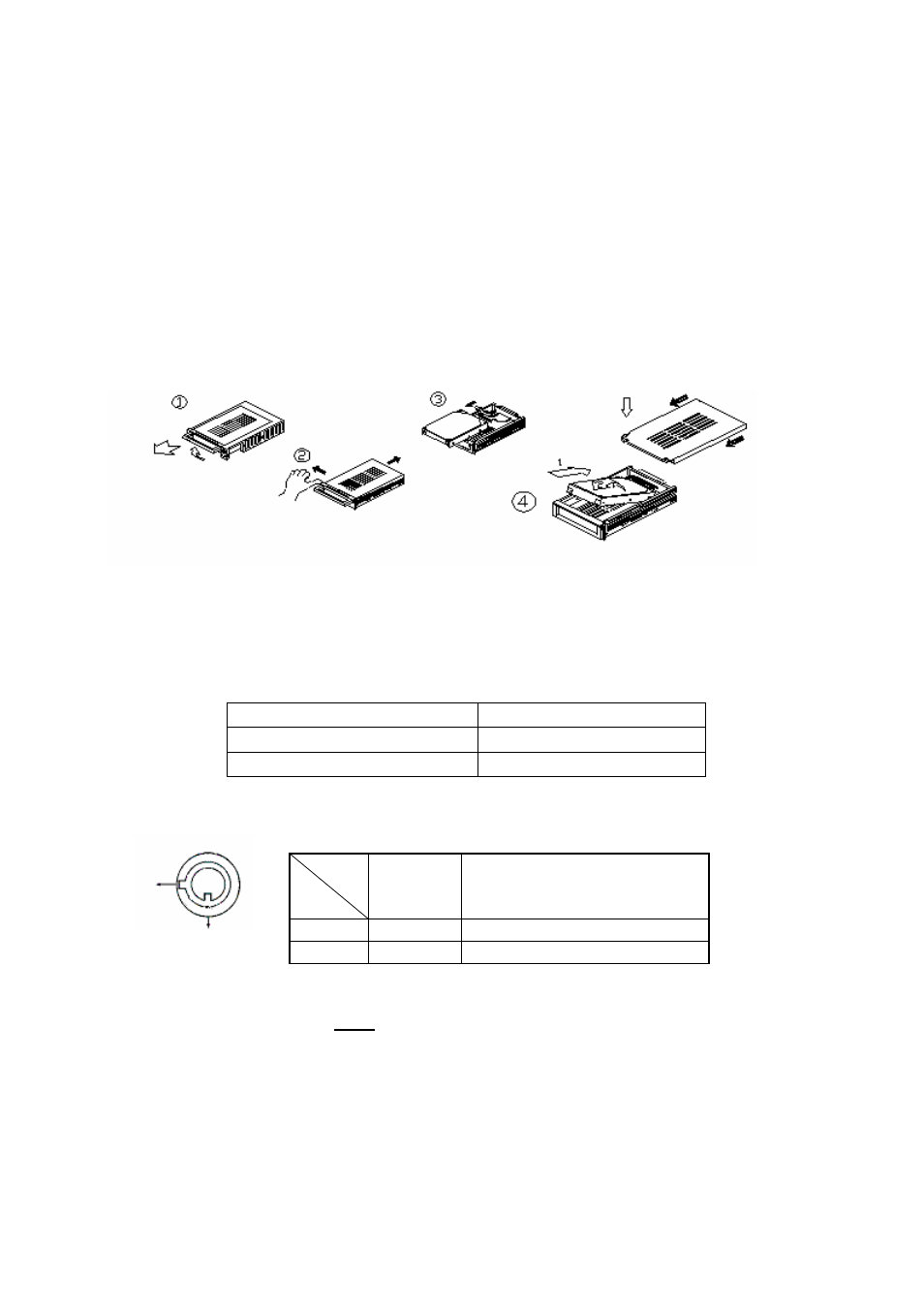

3.1.1 Installing Hard Drive into Cartridge
3.1.1.1. Please find the Key in the Cartridge.
3.1.1.2. Pull the active-handle outwards and use the miniature key provided and
insert into the key hole, turning the key anti-clockwise, then the handle will
auto-eject for pulling out.。
3.1.1.3. Pull the handle outwards to remove the carrier body away from the
cartridge frame.
3.1.1.4. Push the open button to slide the top cover backwards and remove.
3.1.1.5. Insert the DC power cable and IDE cable on the HDD.
3.1.1.6. Position the HDD into carrier body and secure the HDD using the four
6#-32 screws provided.
3.1.1.7. Slide the top cover back to the carrier body by sliding forward to secure.
3.1.1.8. Slide the carrier body back into the cartridge frame.
3.1.2 Function Settings and Operation
3.1.2.1 Power Indicator and HDD Access indicator
When power is turned on, the indicator will displays the following：
Item Indicator
Power Indicator Green LED
HDD Access Indicator Yellow LED
3.1.3 Key lock
A
B
Status
Segment
Power
status
Security status
A ON Locked (Irremovable)
B OFF Unlocked (Removable)
You must turn key lock at “ A ” location before power on. Otherwise HDD cannot be
operated normally.
3.1.3 The Record Time is different based on Record Speed and Record Quality. Please refer to
following table.
