12. PLAY
Press PLAY to play recorded video.
13. LED Light: Under following condition, the led light is ON.
(1) HDD : HDD is activated
(2) HDD FULL：HDD is full
(3) ALARM：When Alarm Enable : Yes (when alarm is triggered, the led is flashing)
(4) TIMER：When Timer Enable : Yes
(5) PLAY：Play operation
(6) REC：Recording operation
(7) POWER : Power On/Off

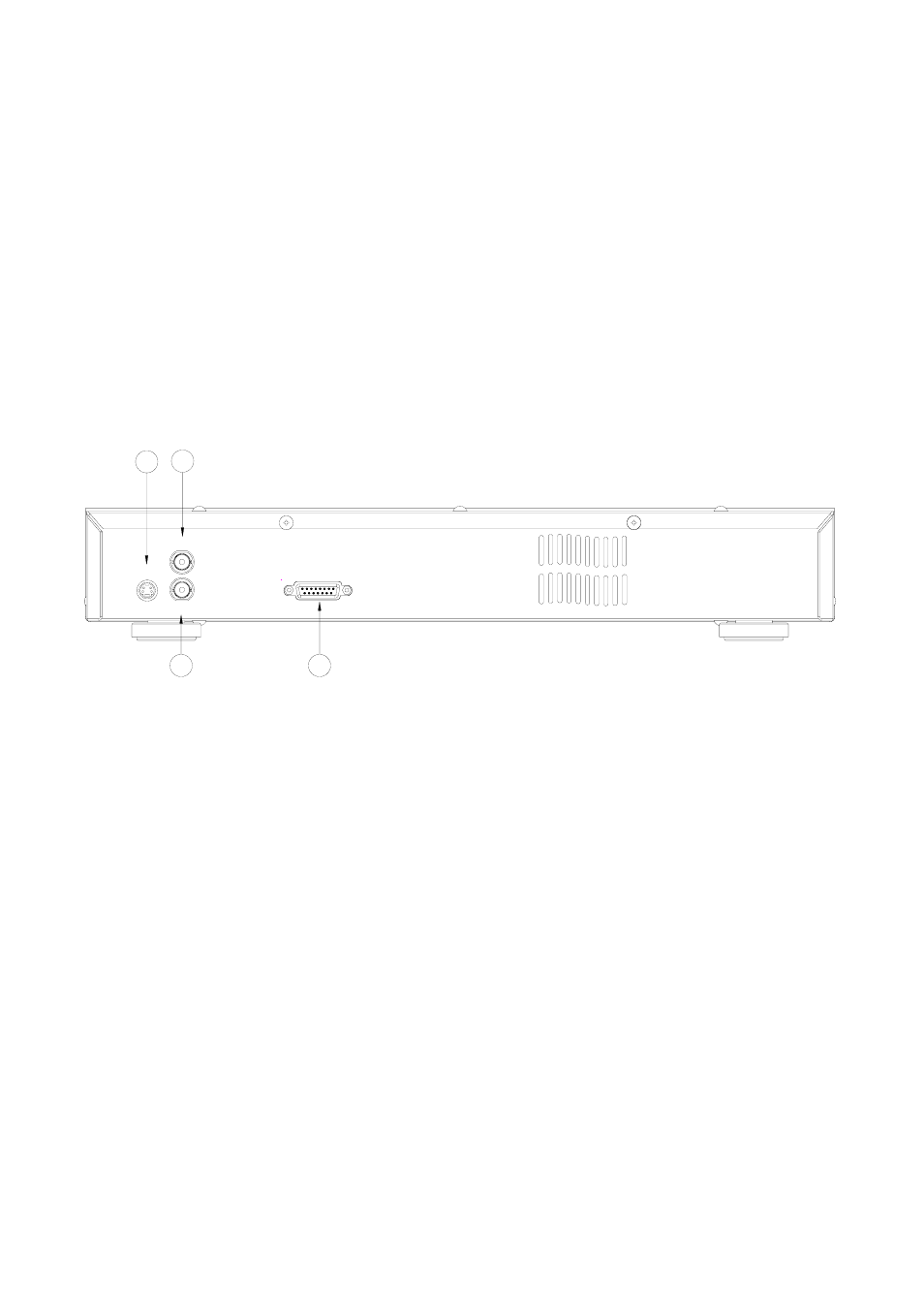

3.3 Back panel connection
VIDEO IN
POWER
VIDEO OUT
ALARM
4 1
2 3
1. VIDEO IN
Connect to video source, such as quad, multiplexer, or camera.
2. VIDEO OUT
Connect to monitor, if no operation with quad or multiplexex, as Fig. 2.2.1
Connect to video input of quad, multiplexer, as Fig. 2.2.2
3. Alarm : RS232 / Alarm input
Controlled remotely by an external device or control system.
Alarm input, external I/O explanation.
16 pin External Interface PCB
11
