MT5634ZPW-PCI 20
Owner’s Manual
External Connections
The MultiModemZPW-PCI communicates over public switched
telephone network lines. Use the modular telephone cable
provided with the modem to connect the MultiModemZPW-PCI
to your telephone wall jack. If you do not have a standard
modular wall jack near your computer, you should install one, or
have one installed for you by your telephone company. In the
U.S., installation kits and adapters are available wherever
telephones are sold.
If you wish, you can use a microphone and speaker with the
MultiModemZPW-PCI. The microphone can be used for
recording answering machine messages, or for speakerphone
use. The speaker can be used for playing back messages, or
for speakerphone use.

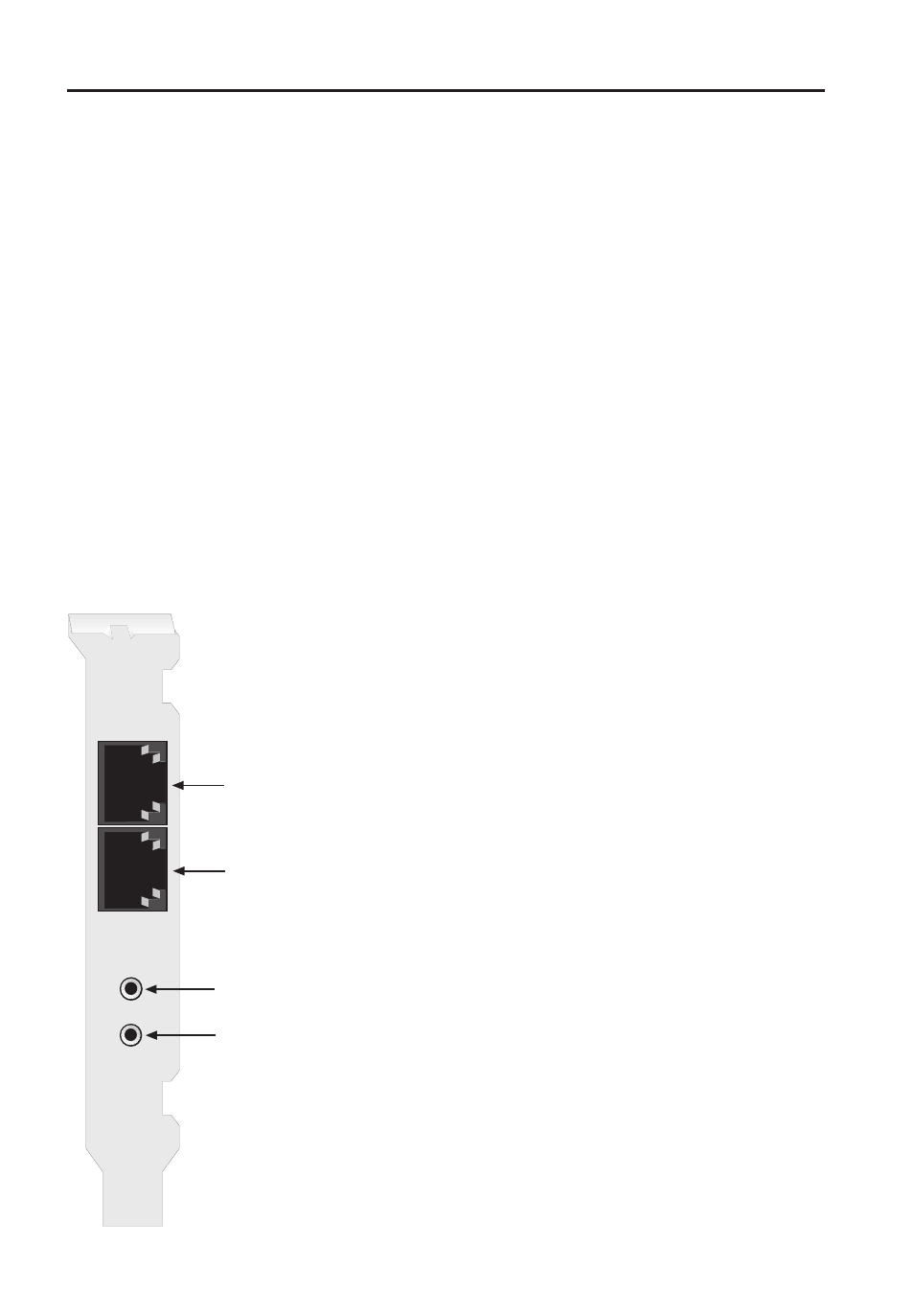

1. Plug one end of the supplied
modular telephone cable into the
MultiModemZPW-PCI's LINE jack.
2. Plug the other end of the phone
cable into a working wall jack.
3. If you wish to connect a telephone
to your modem, plug the telephone’s
line cable into the MultiModemZPW-
PCI's PHONE jack.
4. If you wish to use a microphone
and/or speaker with the
MultiModemZPW-PCI, connect a
microphone by inserting the
microphone plug into the modem's
MIC IN jack.
5. To connect a speaker or
headphone, insert the speaker
or headphone plug into the
modem's LINE OUT jack.
LINE
PHONE
LINE OUT
MIC IN
