Panel Mounting

WARNING: Do not install the CANdrive module near exhaust
manifolds, turbochargers or other engine locations that might
exceed the maximum allowable operating temperature of 185°F
(85°C).

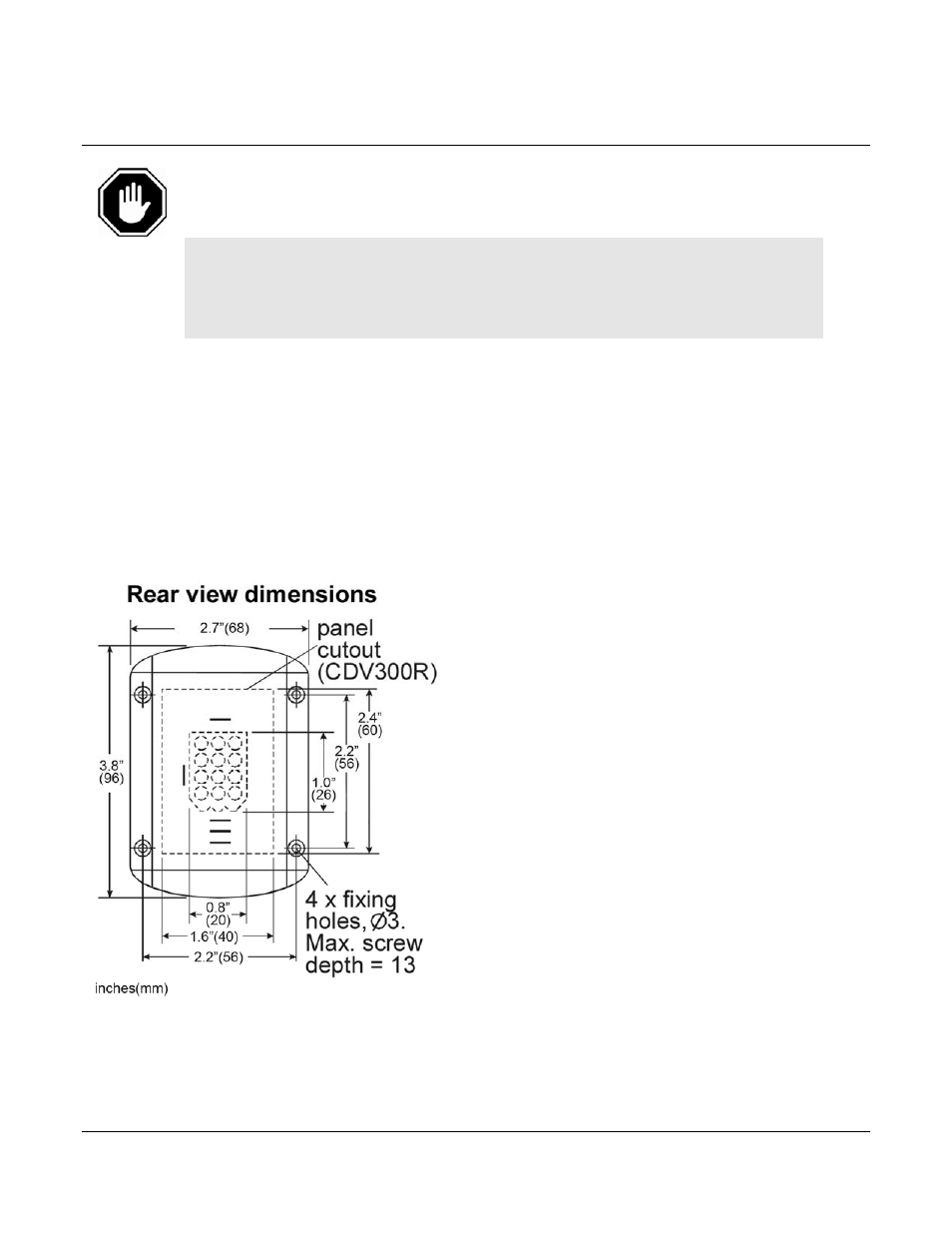

CANdrive modules are surface-mounted with four no.4 screws, fixing center dimensions as
shown. Select screw length according to panel thickness, ensuring a maximum of 1/2 inch
(13mm) screw depth into the CANdrive module fixing holes.

Model CDV100F, with forward facing connector, is designed for surface-mounting inside an
enclosed panel.

Model CDV300F, with additional LEDs and rearward facing connector, is designed for front-of-
panel mounting: these modules require an additional 2.4” x 1.6” (60 x 40mm) cut-out for rear
access to connector and links. The CDV300F includes a CDVG gasket (fitted into a well
behind the rim of the case) to provide front environmental sealing to IP65.

Before mounting, ensure that the final position allows access for:

• Connection of the included wire harness.

• Configuration of links L1 to L5 (position as shown). Alternatively, ensure that the links

are set correctly before mounting. See Configuration section below for full details.
