Installation Instructions

Configuration

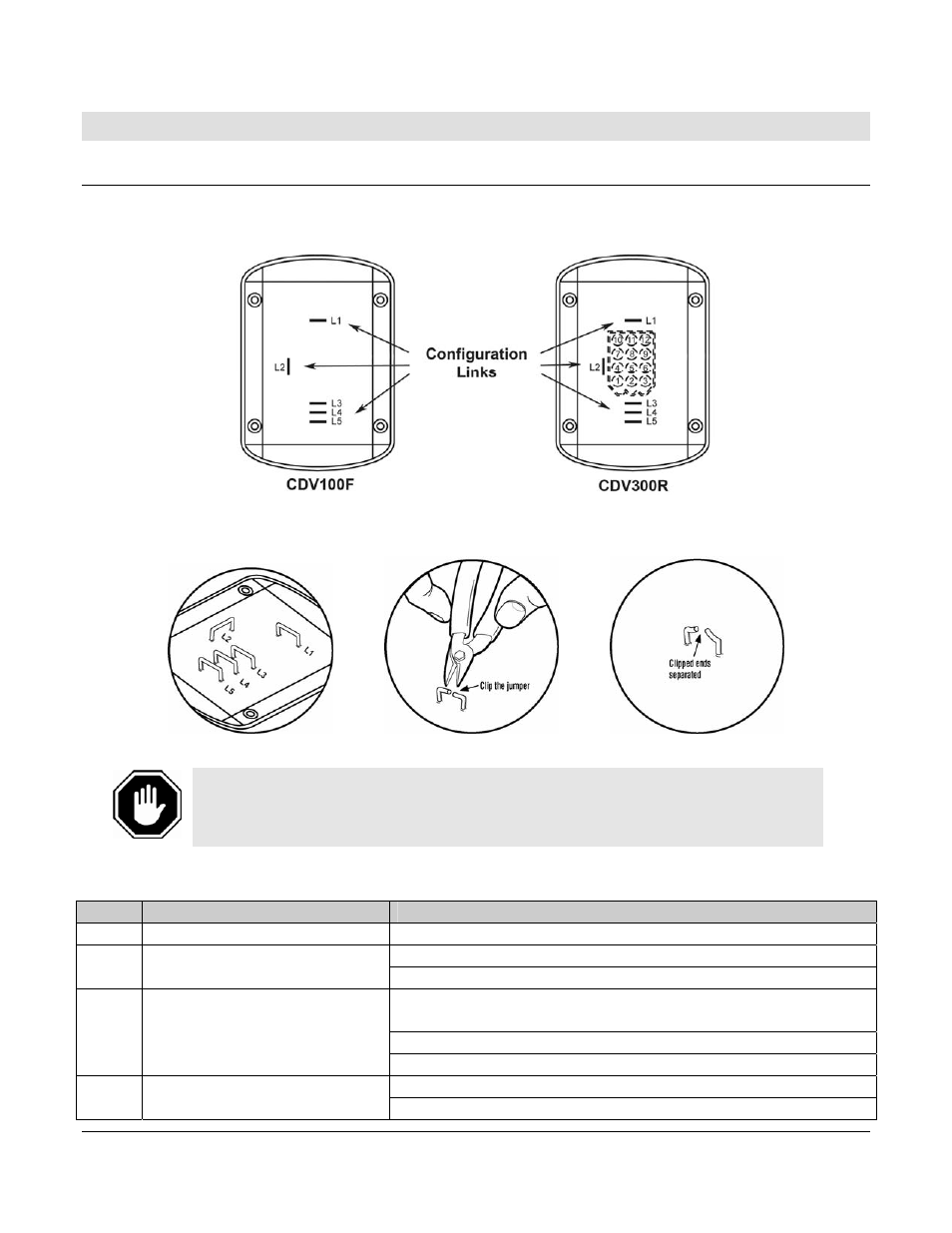

CANdrive modules are supplied with 5 circuit board links soldered in place. These wire links,
labeled L1 through L5, are located on the back side of the unit.

The links allow configuration of operating options by snipping the appropriate wire according to
the following configuration table.

WARNING: The configuration links are one-time breakable and are
not replaceable. Care must therefore be taken to select the
correct options before cutting links.

Configuration Table

Link

Function

Link Options

L1

CANbus 120 Ohm resistor

Cut L1 to remove 120 Ohm terminating resistor.
Leave L2 intact for 12V operation

L2

DC supply voltage

Cut L2 for 24V operation
Leave L3 and L4 intact for Murphy gages (see
compatibility table)
Cut L3 only for Datcon gages (see compatibility table)

L3
L4

Gage output options

Cut L4 only for VDO gages (see compatibility table)
Leave L5 intact for 0-7 bar gages

L5

VDO pressure gage range

Cut L5 for 0-10 bar gages
