Section 78

00-02-0618

04-10-07 -

3 -

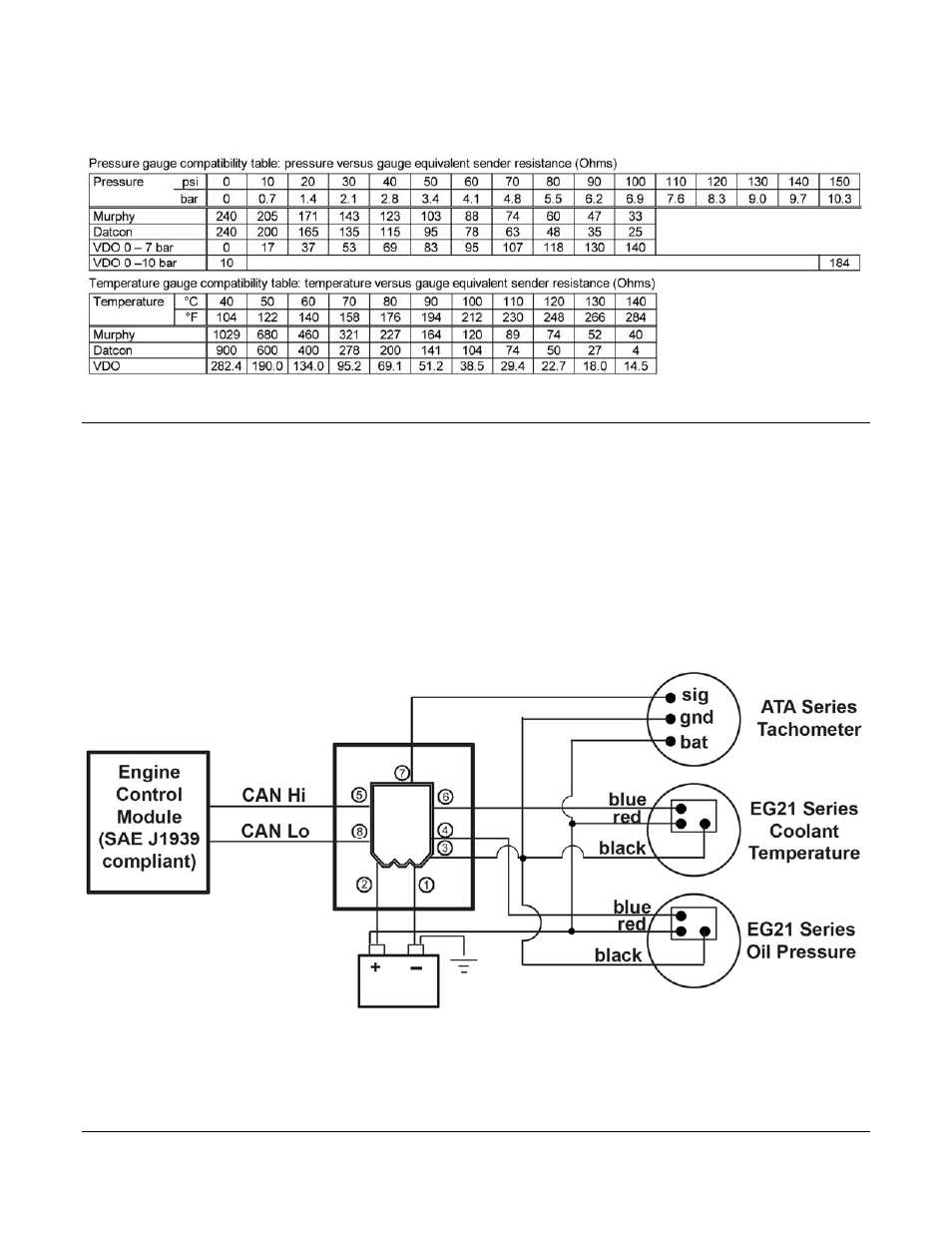

Gage Compatibility Tables

Electrical Connection

CANdrive modules electrical connection is through a 12-way automotive type receptacle
shown right. CANdrive models are available with the connector facing forward through the front
label (‘F’ option, e.g. model CDV100F), or rearward through the epoxy encapsulation (‘R’
option, model CDV300R).

CANdrive electrical connection is through a 12-way automotive type receptacle. A 30-inch
connector harness is included with each CANdrive model, and has each wire individually
labeled for ease of installation.

Typical Connection
