Section 78

00-02-0618

04-10-07 -

1 -

General Information

Introduction

As part of the MurphyLink

® family, the Murphy CANdrive offers a cost effective instrument

solution for modern electronic engines. CANdrive acts as an interface between ECU
CANbus/J1939 transmitted data and standard electric indicating gages. CANdrive and electric
gages are an alternative solution to retrofitting of engine senders, magnetic pickups and
associated wiring.

CANdrive has dedicated outputs for a tachometer, oil pressure, and coolant temperature
electric gages. User configurable links allow for selectivity between 12 or 24 VDC systems,
and for all gage outputs to be selected for Murphy, VDO, or Datcon.

CANdrive is packaged in a compact, surface mounted case with epoxy encapsulation for
maximum durability and environmental sealing. Electrical connection is via a 12-way
automotive-type connector.

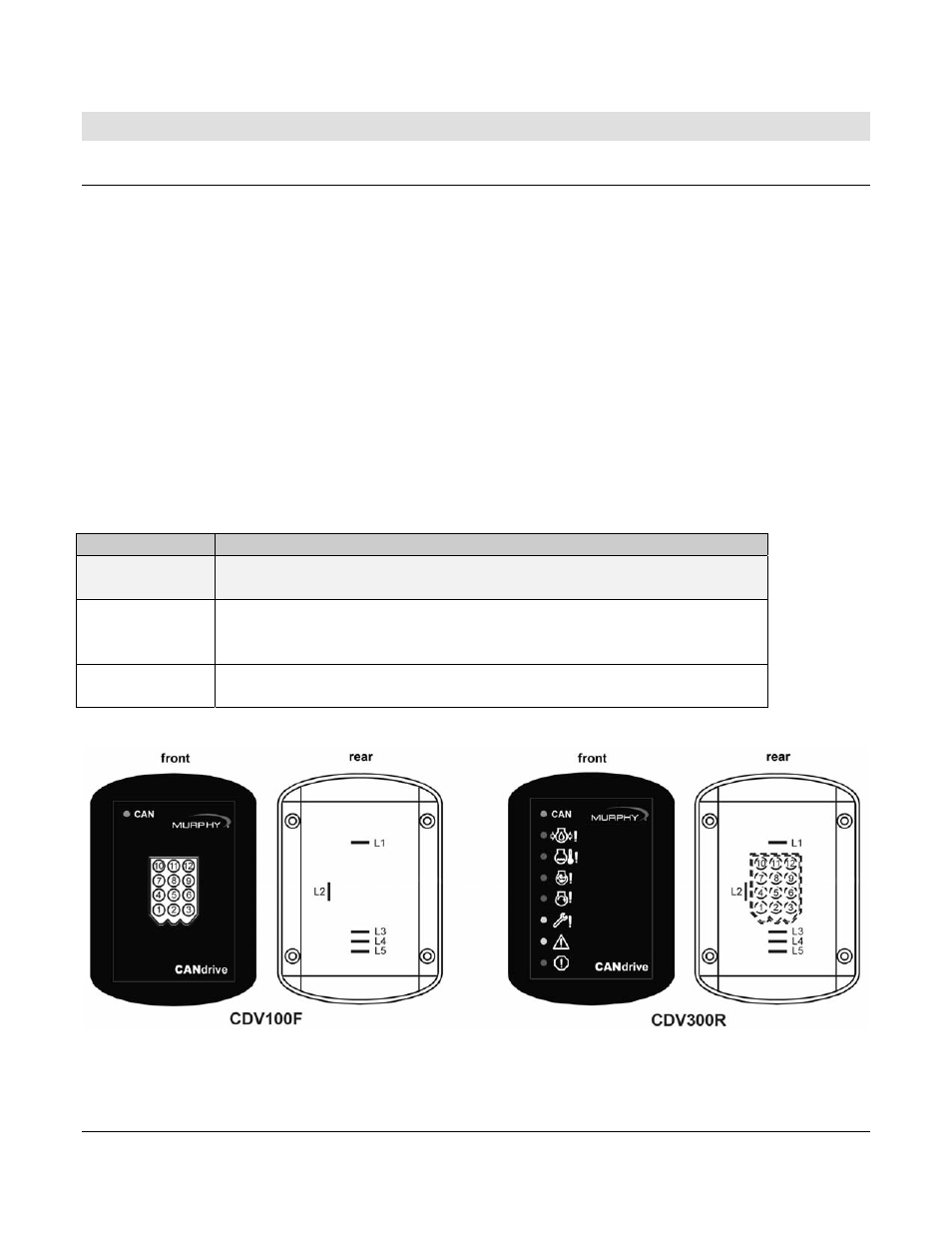

Standard Model Options

Stock Code

Model / Description

78-70-0363

CDV100F, CAN drive J1939 to electric gage interface. 1 x CAN
status LED, connector forward

78-70-0364

CDV300R, CANdrive J1939 to electric gage interface. 8 x
status/fault LEDs, connector rearward. Model CDVG sealing
gasket included.

78-00-0437

CDV-PW-30, CANdrive power and CAN harness. Length: 30 in.
(0.762m). Included with CDV100F and CDV300R
