DCA-180SSV— OPERATION AND PARTS MANUAL — REV. #1 (04/14/10) — PAGE 53

1

DCA-180SSV— TROUBLESHOOTING (DIAGNOSTIC LAMP)

The engine controller of this generator diagnoses problems
that arise from the engine control system and the engine
itself. The malfunction can be determined by examining the
flashing pattern of the diagnostic lamp (Figure 66) located in
the control box.

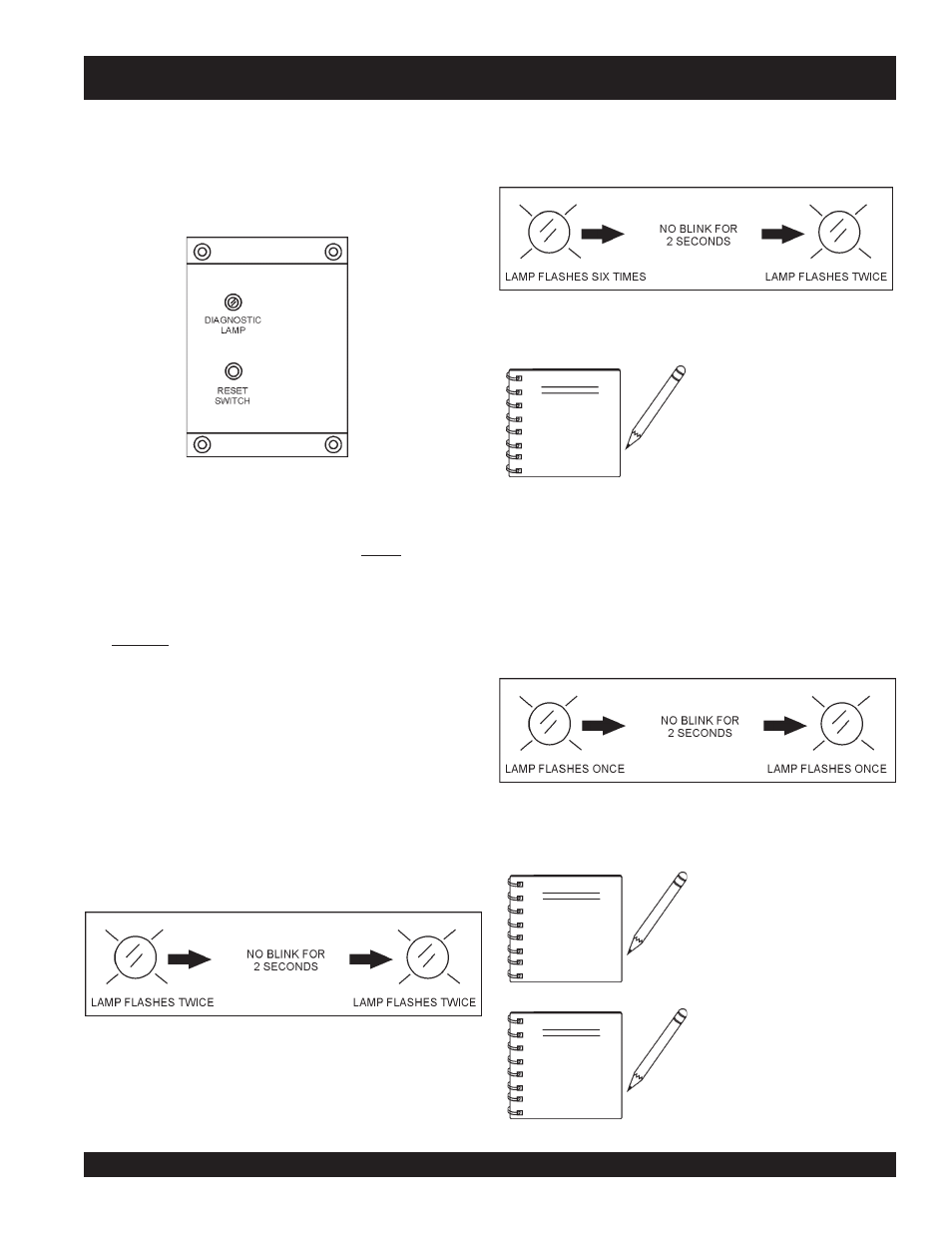

Figure 66. Diagnostic Panel

Method of Operation

1. Normally, the diagnostic lamp will be

dimly lit when the

MPEC Control Switch is placed in the MANUAL
position.

2. If engine trouble occurs, the diagnostic lamp will be

brightly lit as long as the control switch is left in the
manual position.

3. The diagnostic lamp will indicate an error code via a

flashing pattern on the lamp. This pattern will become
visible once the the reset button on the control box has
been pushed and released. The error code consists of a
series of flashes by the lamp. The error codes are defined
as follows:

Example Error Code 1.

Figure 67 displays the error code for

low radiator coolant.

Figure 67. Error Code Low Radiator Coolant

Example Error Code 2.

Figure 68 displays the error code for

high temp intake.

Figure 68. Error Code High Temperature Intake

The error code will flash each
time the reset button is pressed
and released until the problems
have been corrected.

NOTE

4. In a situation where several engine malfunctions occur

simultaneously, the code for each malfunction will flash
one after another in sucession.

5. After all engine related malfunctions have been diagnosed

and corrected, and the generator is operating in a normal
maner the following code (Figure 69) should be displayed
once the reset button is pressed and released

Figure 69. Normal Operating Code

For a complete understanding of
error codes and troubleshooting
procedures, refer to the enclosed
engine instruction manual.

NOTE

When the

MPEC Control

Switch is placed in the AUTO
position, the same error codes
will apply. Codes will not be
active until the unit is activated.

NOTE
