PAGE 26 — DCA-180SSV— OPERATION AND PARTS MANUAL — REV. #1 (04/14/10)

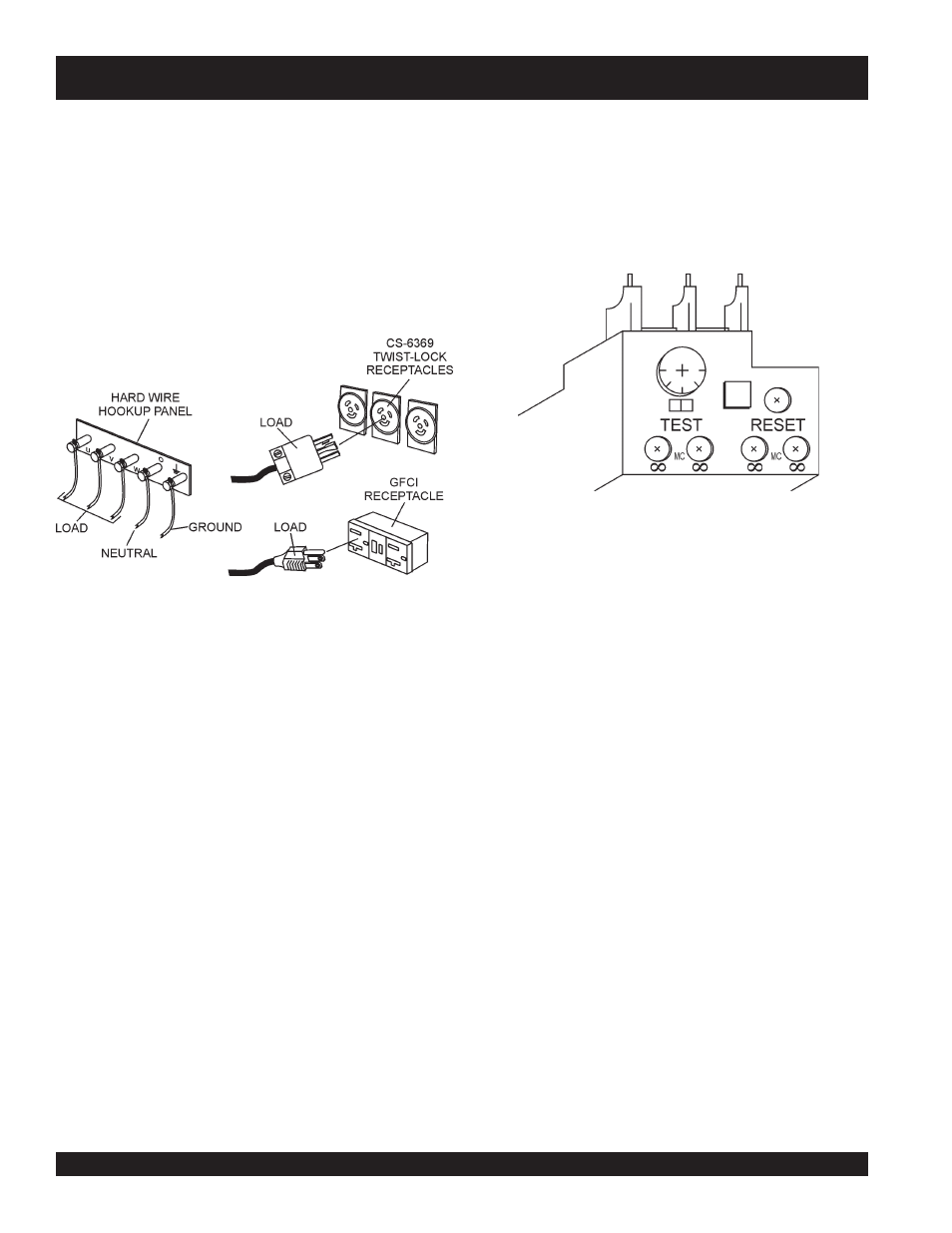

Figure 12. Connecting Loads

Connecting Loads

Loads can be connected to the generator by the

Ouput

Terminal Lugs or the convienience receptacles (Figure 12).
Make sure to read the operation manual before attempting
to connect a load to the generator.

To protect the output terminals from overload, a
3-pole, 1000A

main circuit breaker is provided. Make sure

to switch ALL circuit breakers to the OFF position prior to
starting the engine.

DCA-180SSV— OUTPUT TERMINAL PANEL FAMILIARIZATION

Over Current Relay

An

over current relay (Figure 13) is connected to the main

circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the

reset button on the over cur-

rent relay must be pressed. The over current relay is lo-
cated in the control box.

Figure 13. Over Current Relay
