Magnetek 144-45117-R3 User Manual
Page 18
Regenerative
Power
Module
-
September
2010
144-45117-R3
Page 18 of 20

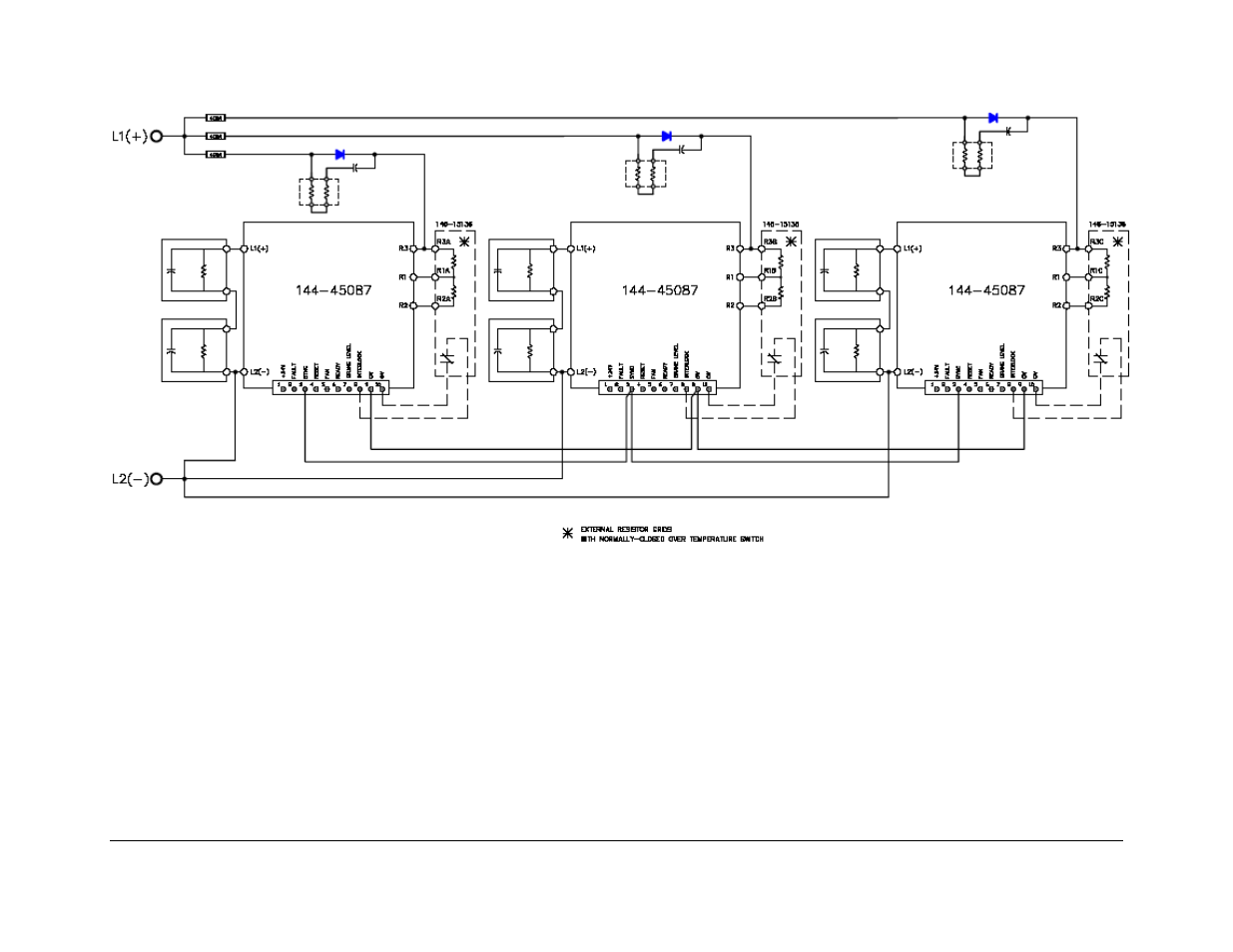

FIGURE 9
1200 AMP 360-720V Common Bus RPM Panel
The connection in FIGURE 9 shows a 1200 AMP RPM Panel that is connected across the 360-720V. The panel is generally connected on the load
side of the Manual Magnetic Disconnect Switch. The Synchronization line is connected between both RPMs in order to have proper load sharing.
