Magnetek 144-45117-R3 User Manual
Page 16
Regenerative
Power
Module
-
September
2010
144-45117-R3
Page 16 of 20

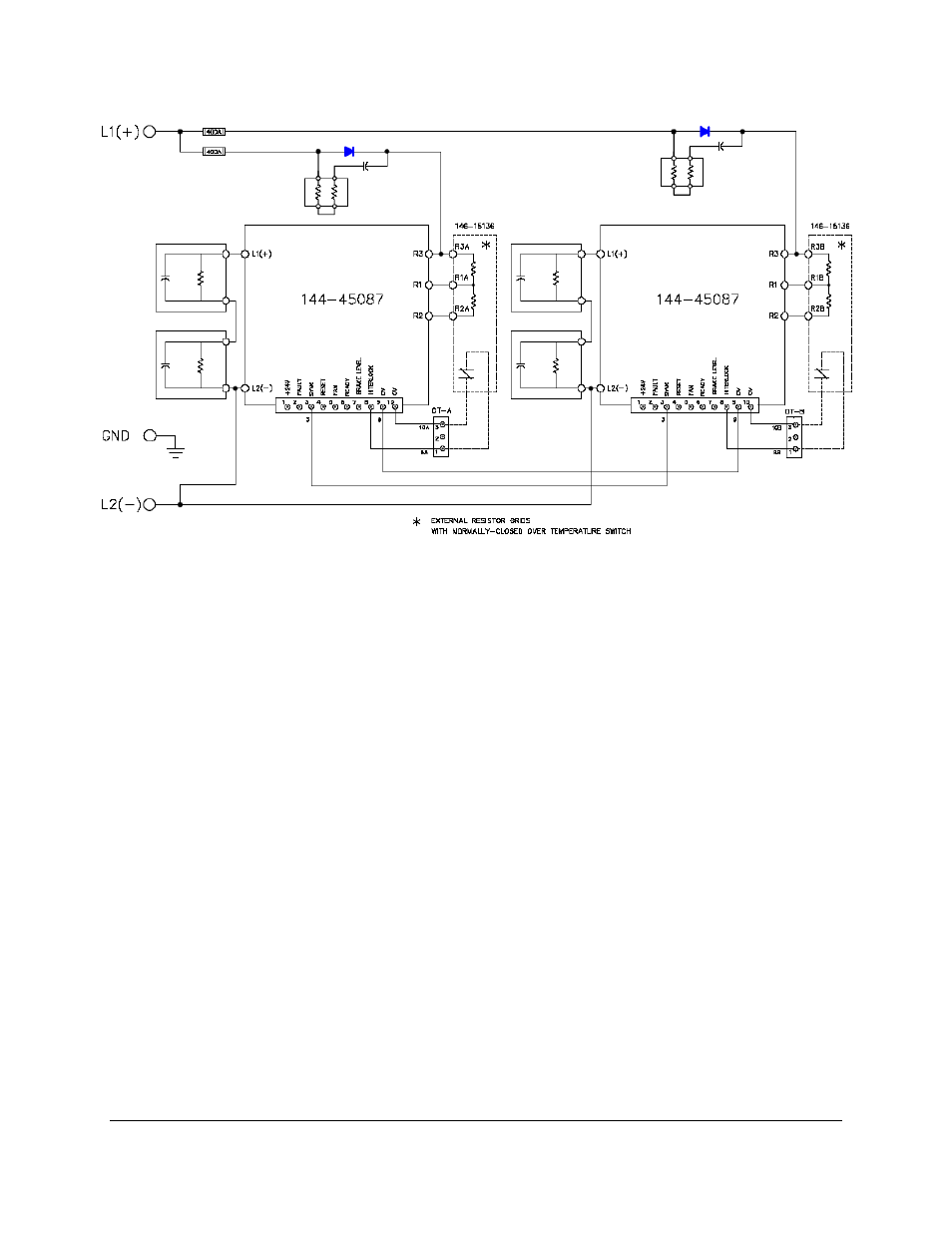

FIGURE 7
800 AMP 360-720V Separate Mounted RPM Panel
The connection in FIGURE 7 shows an 800 AMP RPM Panel that is connected across the 360-720V.
The panel is generally connected on the load side of the Manual Magnetic Disconnect Switch. The
Synchronization line is connected between both RPMs in order to have proper load sharing.
