Regenerative
Power
Module
-
September
2010
144-45117-R3
Page 17 of 20

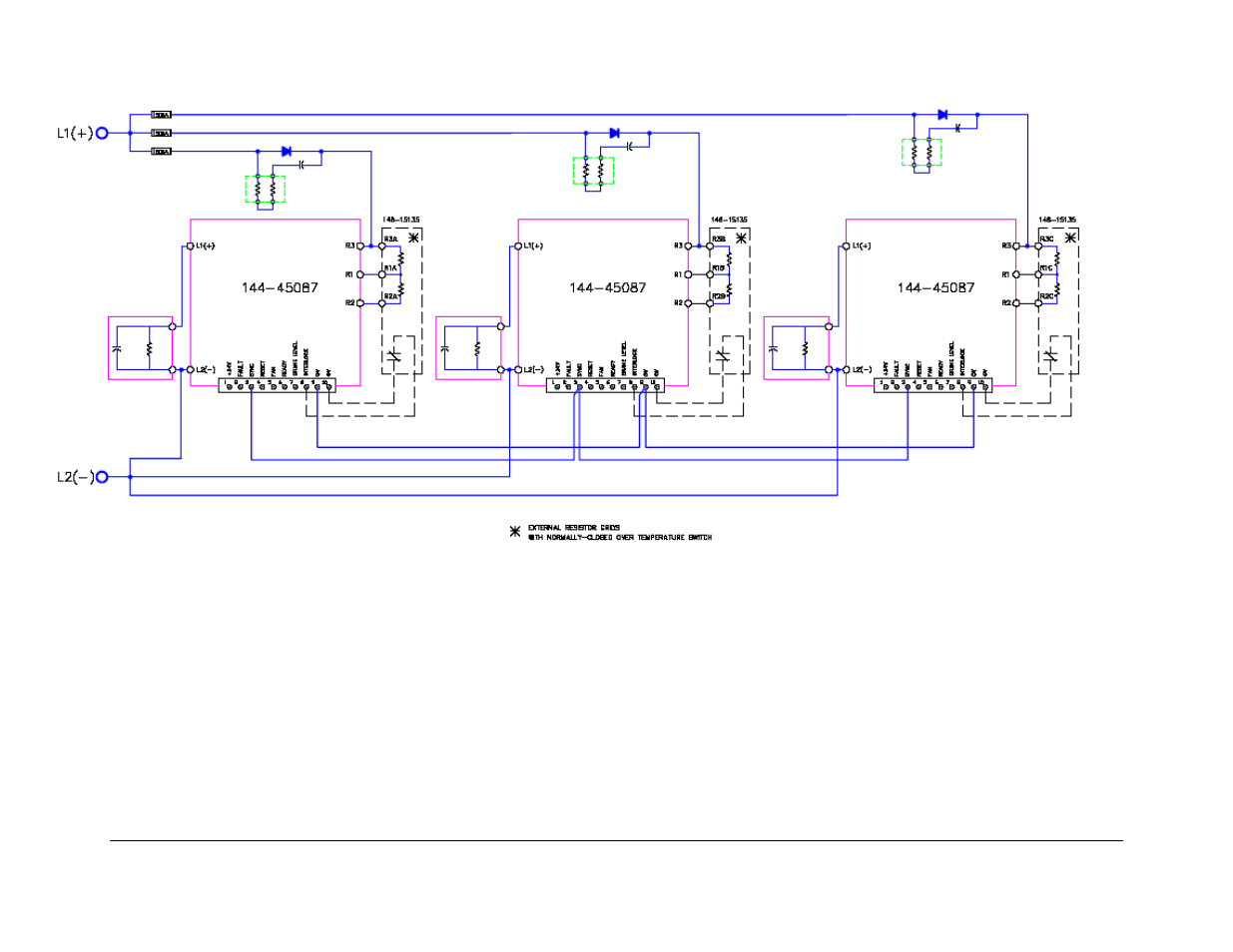

FIGURE 8
1200 AMP 230-360V Common Bus RPM Panel
The connection in FIGURE 8 shows a 1200 AMP RPM Panel that is connected across the 230-360V. The panel is generally connected on the load
side of the Manual Magnetic Disconnect Switch. The Synchronization line is connected between both RPMs in order to have proper load sharing.
