Regenerative
Power
Module
-
September
2010
144-45117-R3
Page 15 of 20

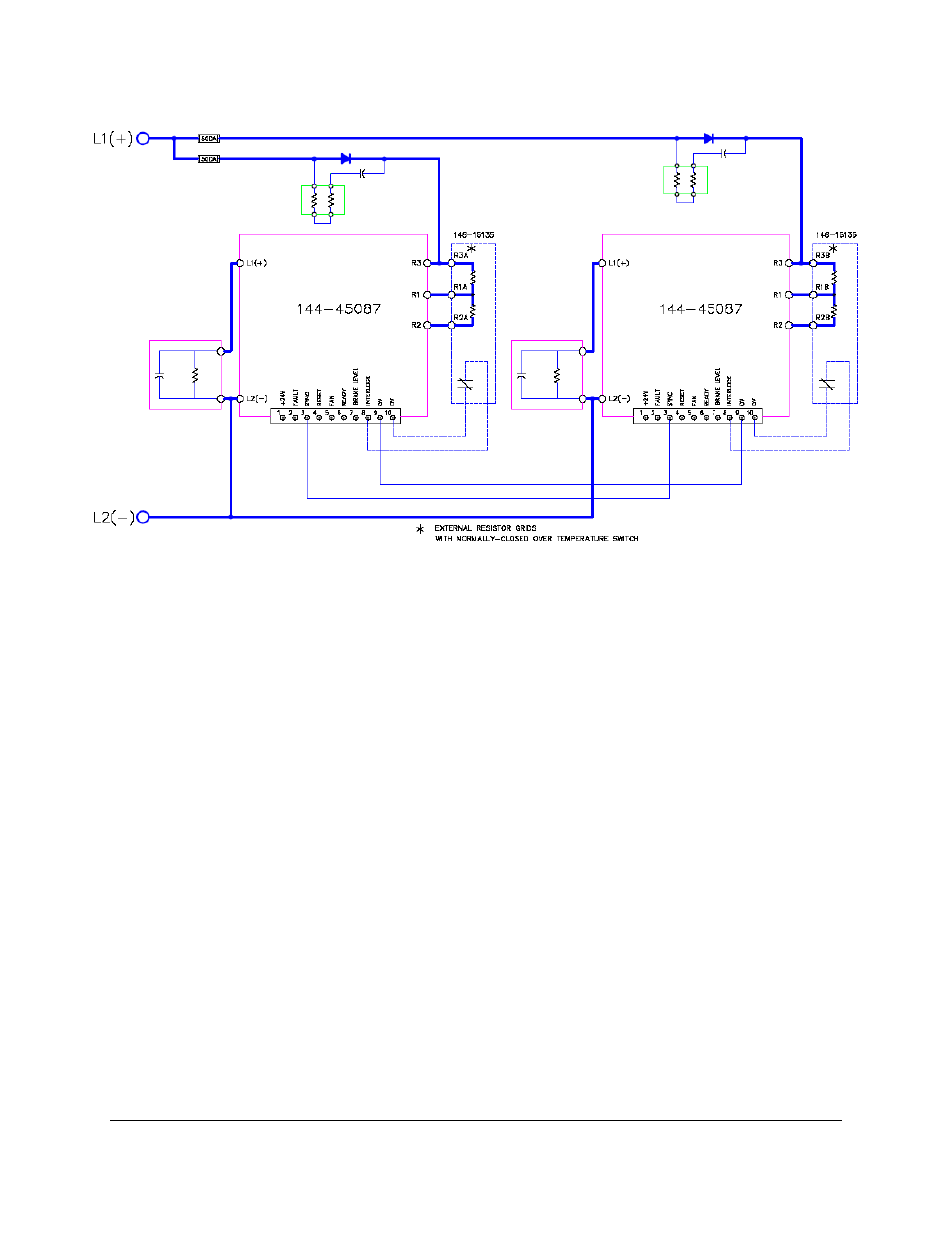

FIGURE 6
800 AMP 230-320V Separate Mounted RPM Panel
The connection in FIGURE 6 shows an 800 AMP RPM Panel that is connected across the 230-320V.
The panel is generally connected on the load side of the Manual Magnetic Disconnect Switch. The
Synchronization line is connected between both RPMs in order to have proper load sharing.
