Hardware Description
Front Panel
RJ-45 Ports (Auto MDI/MDIX): Eight 10/100 auto-sensing for 10BASE-T or
100BASE-TX connections.

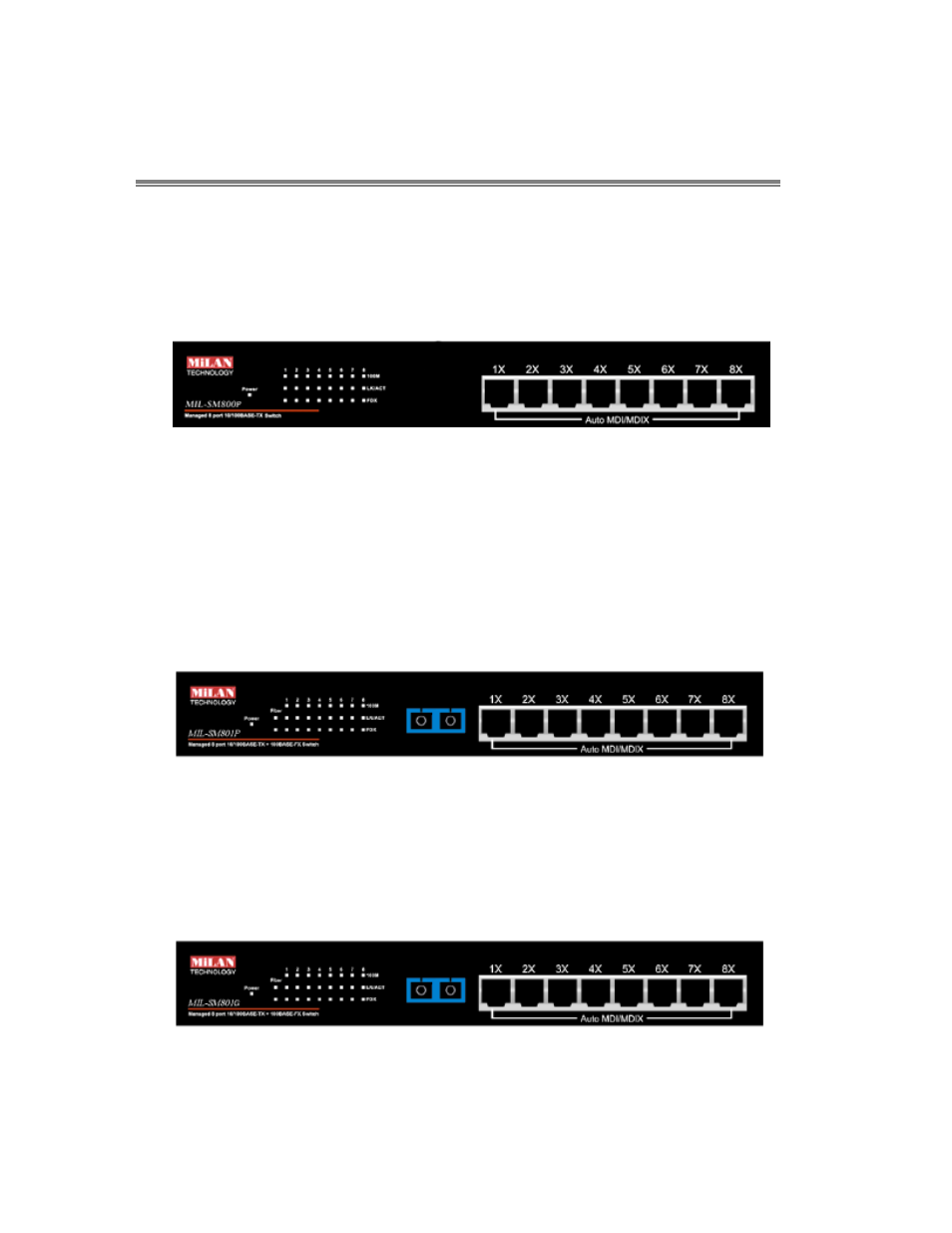

Figure 2-1. Front Panel for MIL-SM800P
100BASE-FX Fiber Port: There are 4 types of fiber connectors available for
the MIL-SM801P. The distance for multi-mode fiber cabling can be up to 2
kilometers. However, the distance for SC single-mode fiber port is 60
kilometers.
Figure 2-2. Front Panel for MIL-SM801P
1000BASE-SX Gigabit Ethernet Port: There is one 1000Mbps Gigabit
Ethernet port available for the MIL-SM801G.
Figure 2-3. Front Panel for MIL-SM801G
