20

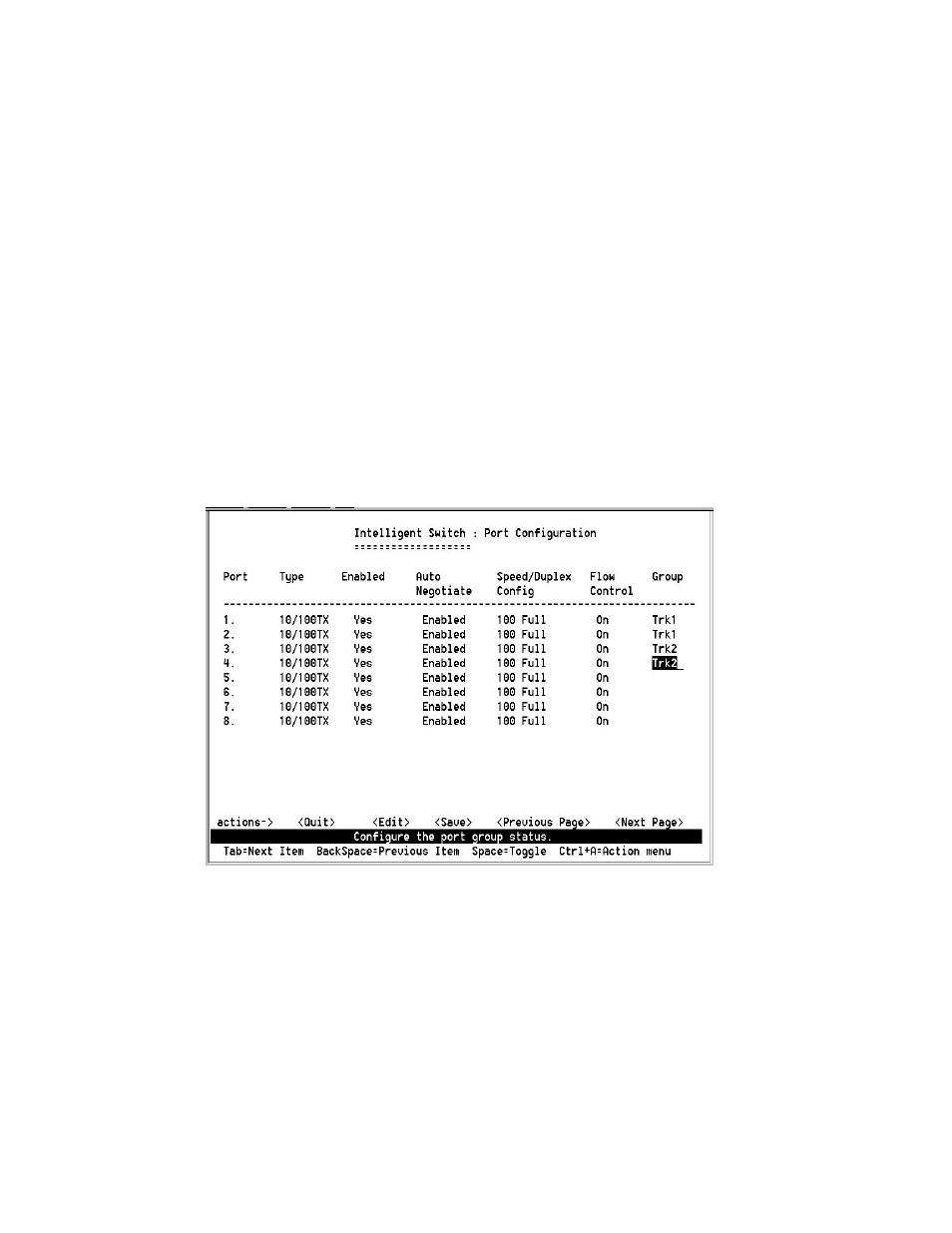

4-3-2. Port / Trunk Configuration
The menu provides per port configuration for speed and duplex as well as
port trunking. Use the Space key to select the option preferred for each
item.
1. Enabled: User can disable or enable the port.
2. Auto Negotiate: User can set auto-negotiation to be enabled or
disabled. The default is that auto-negotiation is enabled.
3. Speed/Duplex Config: User can set the port speed to be 100Mbps or
10Mbps on ports 1 through 8. The port 9 fiber port is fixed at 100Mbps
for the MIL-SM801P model series. The port 9 fiber port for the MIL-
SM801G models is fixed at 1000Mbps. All ports can be set for full-duplex
or half-duplex mode.
4. Flow Control: User can set the flow control function to be on or off. The
default is that flow control is enabled.
5. Group: User can set trunk groups for port 1 through port 8. There are
four possible trunk groups.
Actions->
: Exits the page of port configuration and return to the previous
menu.
: Configures all items. When finished, pressing ESC returns to the
action menu line.
: Saves all configured values.
: Returns to previous page.
: Goes to next page to configure.
