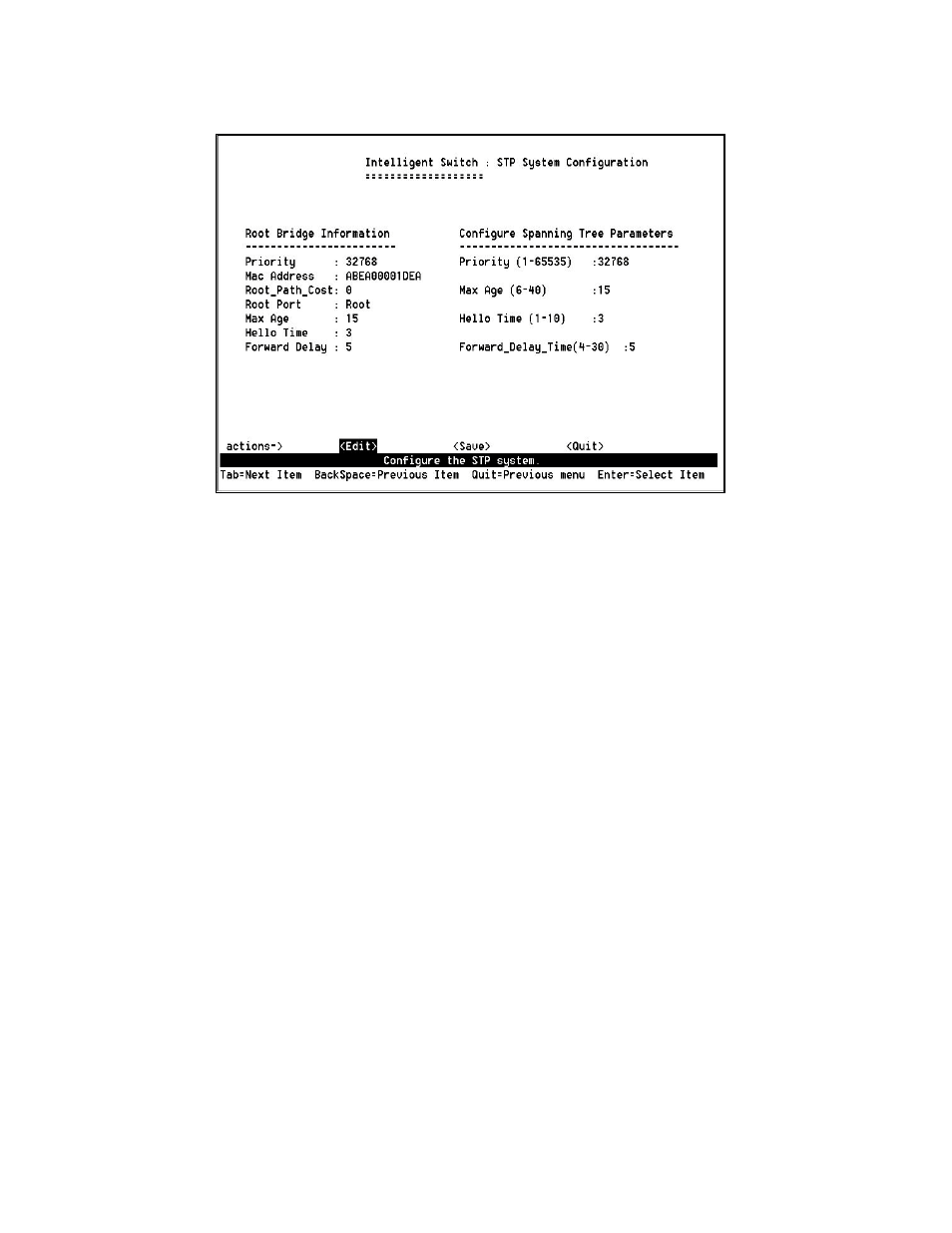

4-4-1-2.System Configuration
The data on the left is for display only. The parameters on the right can be
configured with new values.
Priority:
The value used to identify the root bridge. The bridge with the
lowest value has the highest priority and is selected as the root. Enter a
number 1 through 65535.
Max Age value is the number of seconds a bridge waits without receiving
Spanning-Tree Protocol configuration messages before attempting a
reconfiguration. Enter a number 6 through 40.
Hello Time value is the number of seconds between the transmission of
Spanning-Tree Protocol configuration messages. Enter a number 1 through
10.
Forward Delay Time is the number of seconds a port waits before
changing from its Spanning-Tree Protocol learning and listening states to
the forwarding state. Enter a number 4 through 30.
