Black plate (330,1)

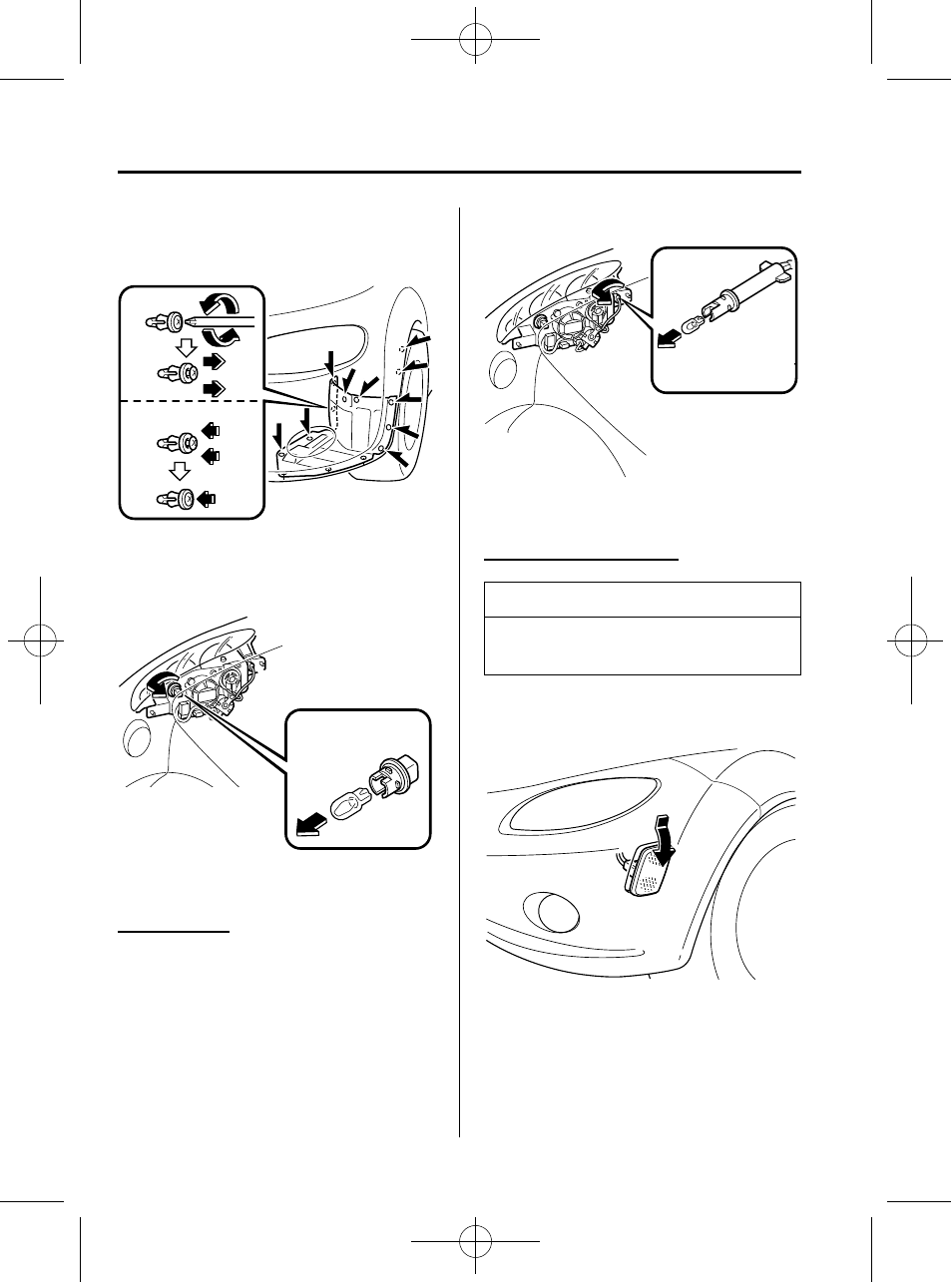

3. Turn the center section of the plastic
retainers counterclockwise and remove
them, then remove the mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of removal.
Parking lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
2. Disconnect the bulb from the socket.
3. Install the new bulb in the reverse order
of removal.
Front side-marker lights
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
1. Slide the unit as shown in the figure to
remove it.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
8-44
Maintenance and Care
Owner Maintenance
