Page 123
Black plate (122,1)

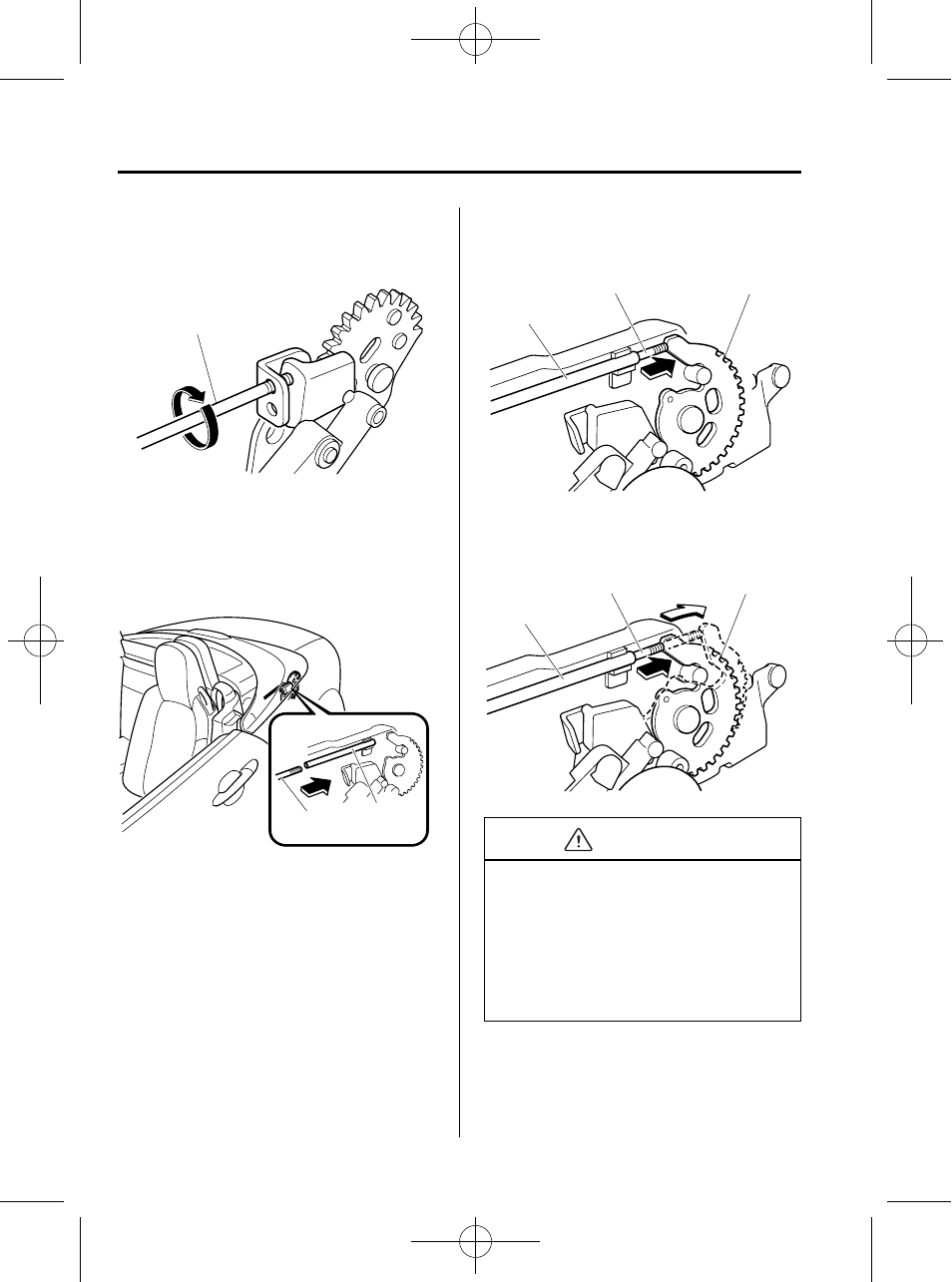

6. Tighten the eyebolt by turning it
clockwise 5 more times.
Eyebolt
7. Unscrew the eyebolt now by turning it
counterclockwise.
8. Insert the threaded end of the eyebolt
through the guide.
Guide
Eyebolt
9. Press the eyebolt against the sector
gear.
Sector gear
Eyebolt
Guide
10. Press and rotate the sector gear
rearward to release the lock.
Sector gear
Eyebolt
Guide
CAUTION
When releasing the sector gear lock
using the eyebolt, make sure the eyebolt
remains centered as you push it against
the sector gear lock. If the eyebolt slips
it could cause your hand to veer and hit
the vehicle resulting in minor scrapes or
bruises.
11. Pull out the eyebolt from the guide
when the lock is released.
3-64
Knowing Your Mazda
Doors and Locks
MX-5_8V80-EA-06F_Edition1 Page122
Monday, June 12 2006 12:56 AM
Form No.8V80-EA-06F
