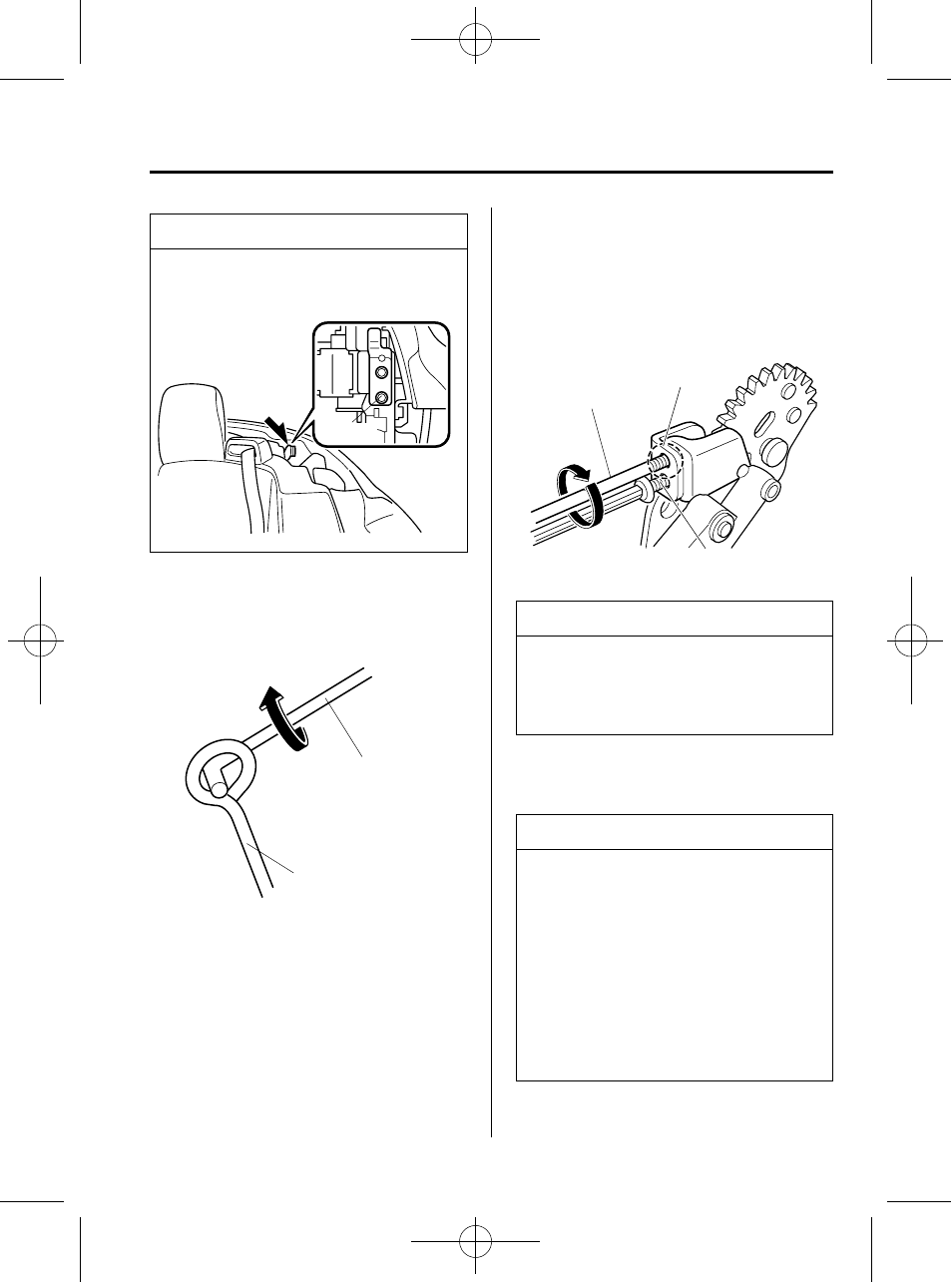

NOTE
The gear units are located underneath
the deck.
Bolt
3. Use the eyebolt to get enough torque
on the short leg of the Allen wrench
and turn the Allen wrench 4 times
counterclockwise.
Allen wrench
Eyebolt
4. Disconnect the eyebolt from the Allen
wrench leaving the Allen wrench in
place, and insert the threaded end of
the eyebolt in the hole directly above
the Allen socket and tighten it
clockwise two full turns.
Eyebolt
Bolt
Threaded hole
NOTE
Tighten the eyebolt with the Allen
wrench attached. The Allen wrench can
serve as a reference for inserting the
eyebolt more easily.
5. Remove the bolt by turning the Allen
wrench counterclockwise.
NOTE
l After the bolt is clear of the hole,
keep the Allen wrench level while
pulling it out with the bolt attached
so as to prevent the bolt from hitting
the vehicle and dropping.
l Bring the removed bolt to an
Authorized Mazda Dealer.If you
drop the bolt in the vehicle by
mistake, inform at an Authorized
Mazda Dealer.
