Digital XTS 3000 TM
Basic Model
Portable Radio
Quick-Reference Card
Write in your radio’s programmed features.
GENERAL
Turning the Radio On: Rotating the On/Off/
Volume Control Knob clockwise.
Monitoring (Conventional Channels Only):
Momentarily press the Monitor Button and listen
for voice activity.
Transmitting: Press and hold the PTT Switch.
Receiving: Release the PTT Switch.
Selecting a Zone and Channel:
1. Place the Zone Switch (if programmed) to the
desired position.
If you would like a different channel than the
presently selected channel:
2. Rotate the 16-Position Select Knob to the
desired channel.
3. To transmit on the selected zone/channel
combination, press the PTT Switch.
COMMON RADIO FEATURE
Answering an Individual Call:
1a. For telephone calls —
press the Call Response Button.
1b. For Private-Conversation Calls and Call-Alert
Pages with Private-Conversation — within 20
seconds, press the Call Response Button.
Press the PTT Switch to talk privately. For
Selective Call after 2 seconds, the speaker will
unmute.
1c. For Call-Alert Pages Only — To respond, press
the PTT Switch. Your conversation will be
heard by the entire talkgroup.
2. Converse in the normal manner.
Press the PTT Switch to talk; release the PTT
Switch to listen.
3. When you have finished your conversation,
“hang up” (disconnect) by pressing the Call
Response Button.

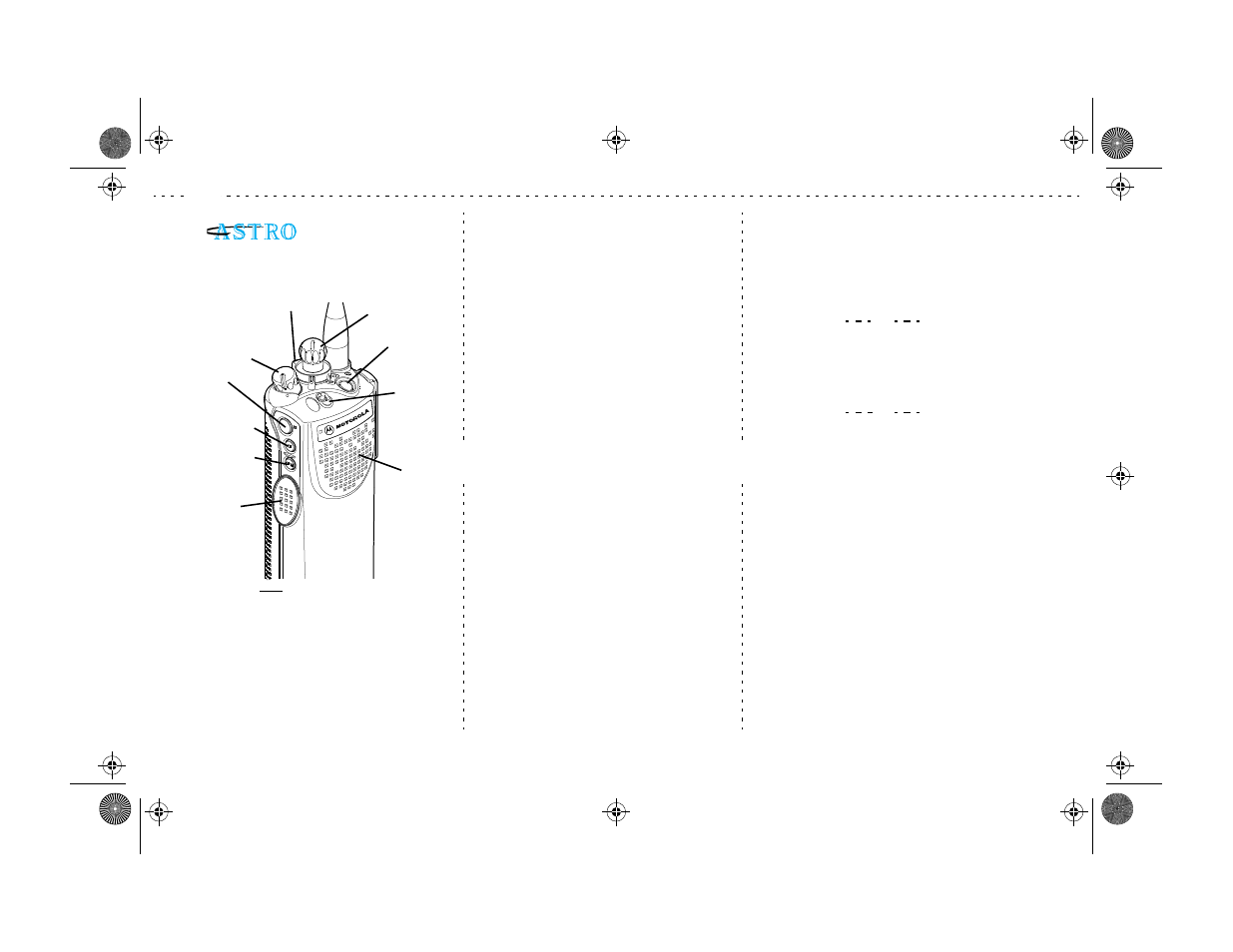

XTS 3000
A
B
C
16-Position
Select Knob
3-Position
Switch
_ _ _ _ _ _ _
Speaker/
Microphone
Top Button
_ _ _ _ _ _ _
Concentric
Switch
_ _ _ _ _ _
FOLD FOLD
✁
OR
OR
Top Side
Button
_ _ _ _ _ _ _
On/Off/
Volume Knob
Side Button 1
_ _ _ _ _ _ _
Side Button 2
_ _ _ _ _ _ _
PTT Switch
