2 - 4
TM
CHAP. 2
INSTA…

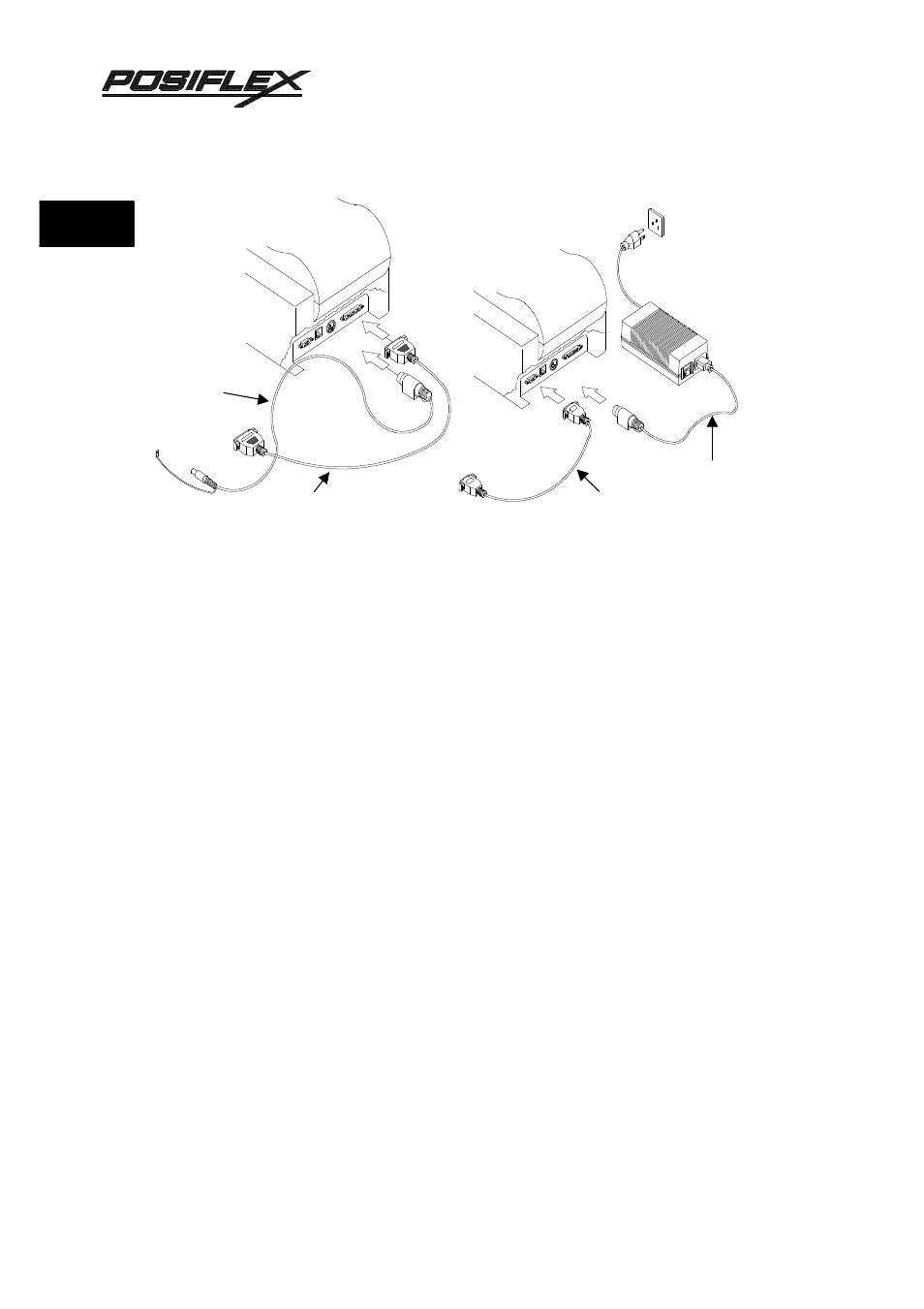

Fig. 4 Cable connection examples
LOADING RIBBON CARTRIDGE
•
Turn the power for the printer off.
•
Squeeze the two side walls of the top cover inward at the rear portion and
raise and pull it back to remove it.
Note: Do not touch the print head immediately after printing as it gets very
hot.
•
Turn the ribbon feed knob of the ribbon cartridge in the direction of the arrow
to remove slack in the ribbon.
•
Align the ribbon cartridge guide with the notched part of the frame. Insert the
ribbon cartridge from that position till you hear a locking sound (ref. Fig. 5).
Insert the ink ribbon between the print head and ribbon separator (ref. Fig. 6).
At this time, make sure that the ink ribbon is not protruding beyond the
ribbon separator.
•
Turn the ribbon feed knob of the ribbon cartridge in the direction of the arrow
to remove slack in the ribbon.
•
Mount the front cover by reversing the procedure outlined in previous steps.
Power cable
from PST system
Parallel interface cable Serial interface
cable
Power cable
from adapter
9PM
9PF
25PF
25PM
