Mustek PP3000 User Manual

Page 14

2 - 2

CHAP. 2
INSTA…

again. (ref. Fig. 2, the example uses parallel interface) Aim the rear hook to the

rectangular opening on the printer platform and push the printer down and

forward till the two springy hooks click into the openings between the

programmable keyboard and the printer platform in PST system. Consolidate the

cables and connect them to the appropriate ports inside the back cover of PST

system.

L0 LP

L3 L4

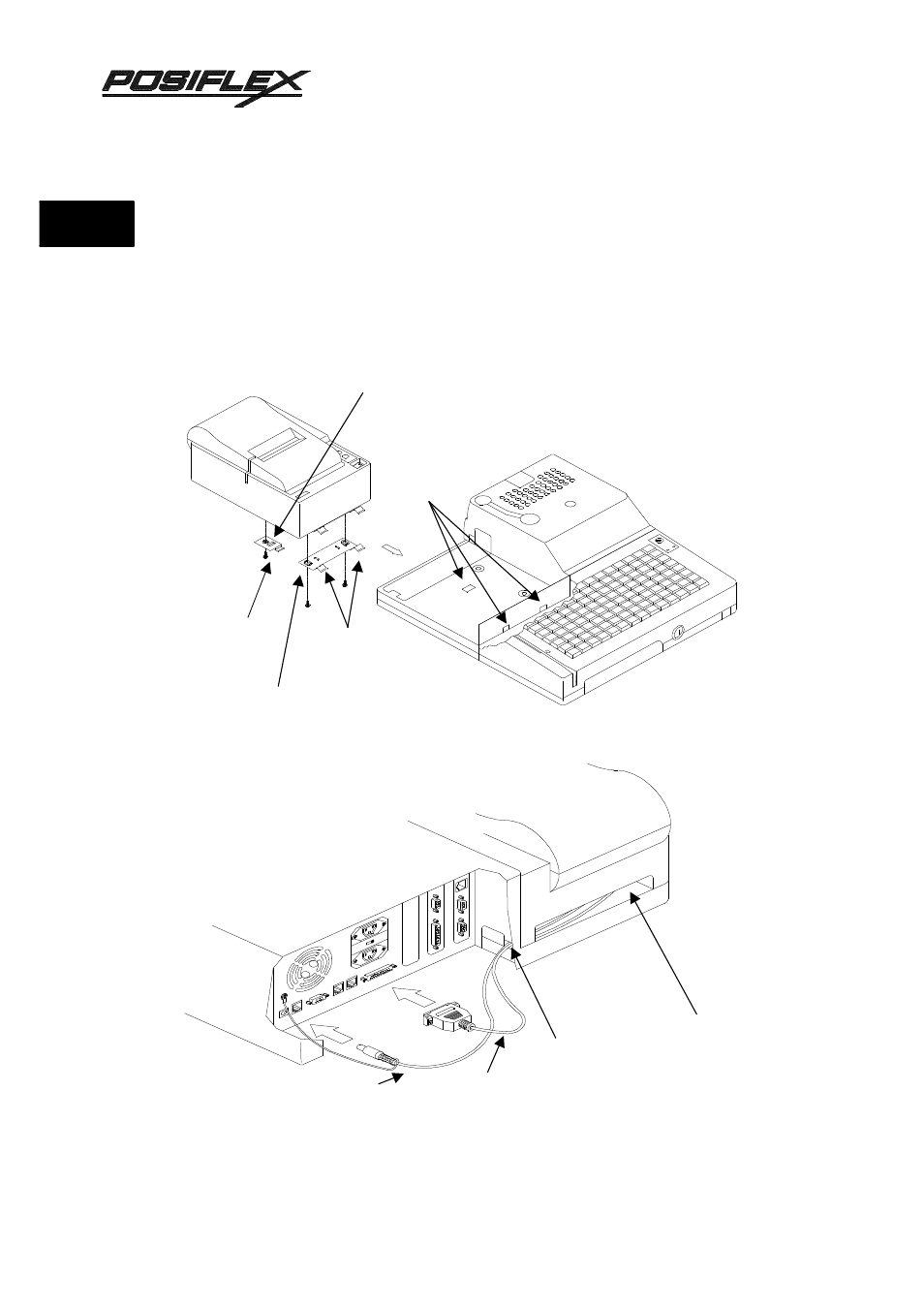

Fig. 1 Mounting printer to PST

Fig. 2 Cable routing in PST application

Routing cables
through this opening

Battery over

Power cable

Printer cable
(serial or parallel)

Springy hook plate

Springy hooks

Openings for
hooks

Hook lock on
rear hook

Rear hook
