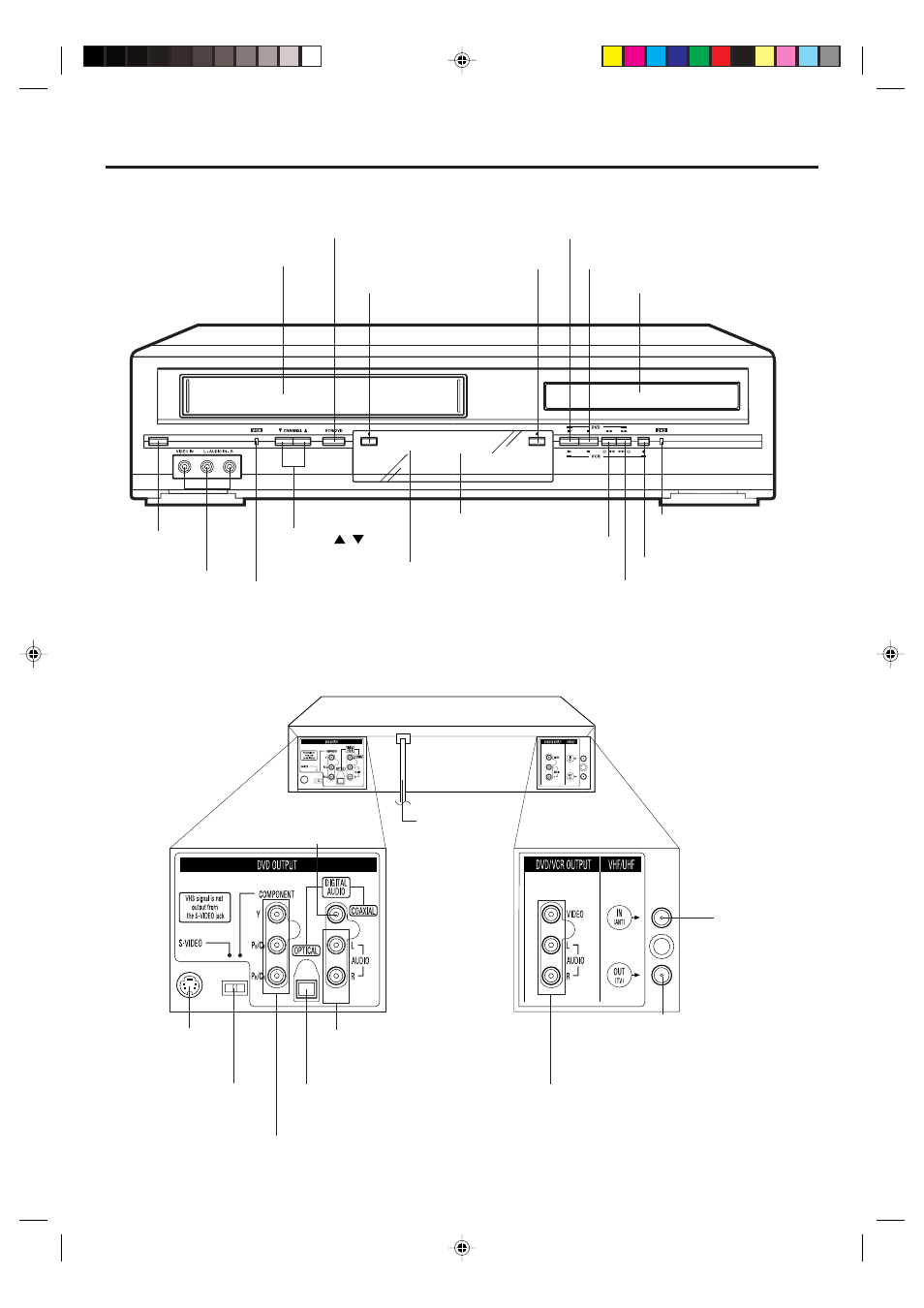

Parts and functions
Rear
Front
AC power cord
DVD/VCR common AUDIO (L/R)/
VIDEO OUT jacks S-VIDEO/COMPONENT
Video selector switch
DVD COAXIAL DIGITAL
AUDIO OUT jack
RF IN jack
DVD OPTICAL DIGITAL
AUDIO OUT jack
DVD S-VIDEO
OUT jack
DVD COMPONENT OUT jacks
RF OUT jack
DVD AUDIO (L/R)
OUT jacks
POWER
STOP button
Disc tray
Cassette Loading Slot
POWER button
AUDIO (L/R)/
VIDEO IN jacks
VCR indicator
DVD indicator
CHANNEL /
buttons
Display window
Remote sensor
EJECT button
OPEN/CLOSE button
PLAY button VCR/DVD mode selector button
FF (Fast Forward) button
REW (Rewind) button
REC/OTR button
