To AUDIO (L) IN
To AUDIO (L) OUT
AUDIO/VIDEO Cord (supplied)
Playback VCR
To VIDEO OUT To AUDIO (R) OUT
Recording VCR
To VIDEO IN To AUDIO (R) IN
If you connect the VCR to another VCR or camcorder, you can duplicate a previously recorded tape.
Make all connections before turning on the power.
Duplicating a video tape
Load a blank cassette tape with the erase preven-
tion tab intact into the recording VCR.
Load a previously recorded tape into the playback
VCR or CAMCORDER.
1
Press SPEED to select the desired tape speed SP
or SLP.
It is recommended that you set the Speed to the
SP mode on the recording VCR for best results.
2
Press INPUT SELECT to select AUDIO/VIDEO in-
put position. “L” will appear in the
display.
3
Press REC/OTR on the recording VCR, then press
PAUSE/STILL.
4
Press the PLAY button on the playback VCR or
CAMCORDER, then press the PAUSE/STILL but-
ton.
5
Release the recording pause and the playback still
simultaneously to begin the duplicating process.
6
Duplicating a video tape
For duplicating a previously recorded tape from a
camcorder, follow the camcorder manufacturer’s
instructions. A typical camcorder dubbing hookup
is shown above.

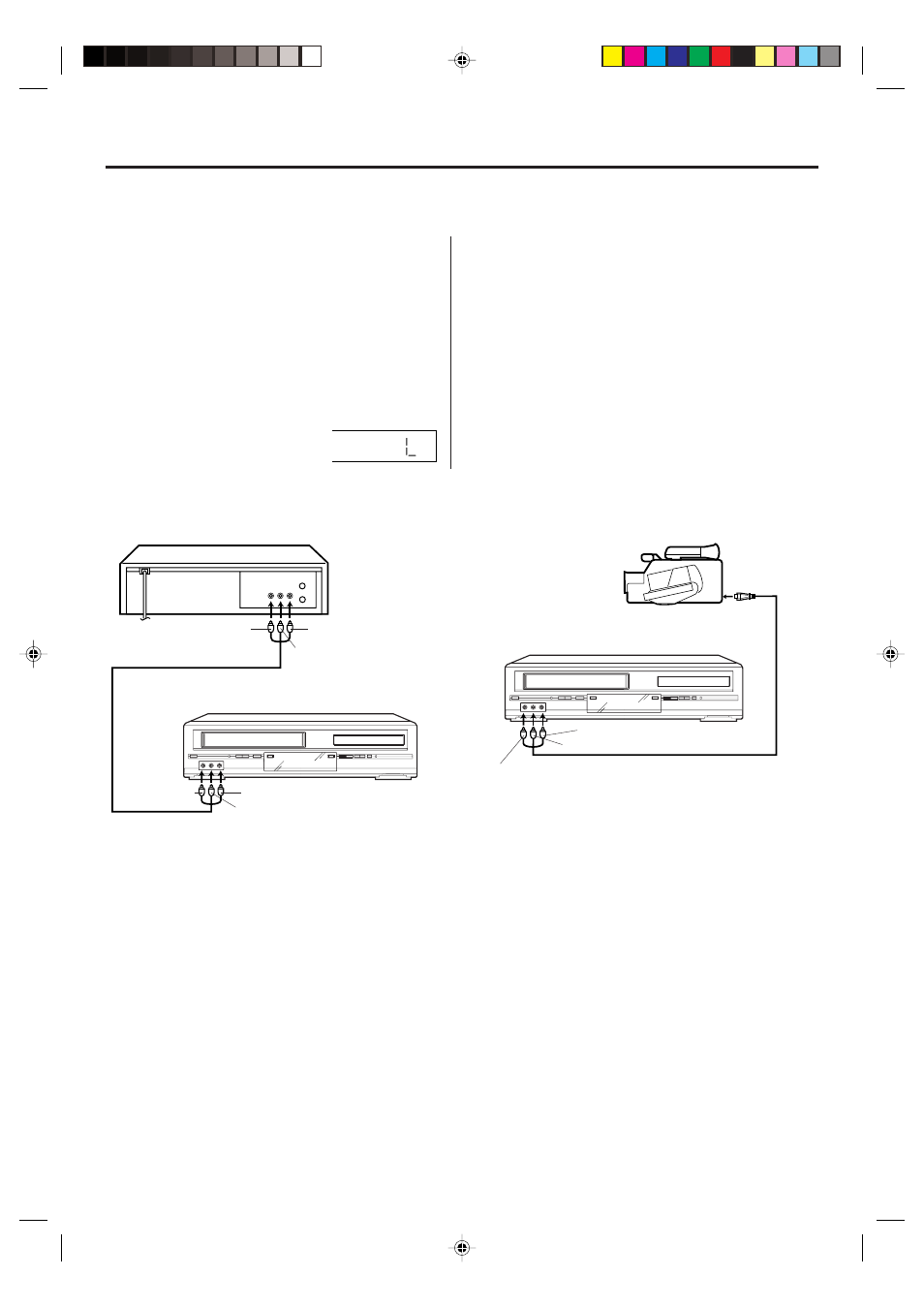

AUDIO/VIDEO Cord (not supplied)
To AUDIO (R) IN
To AUDIO (L) IN
To VIDEO IN
Recording VCR
To AV Jack
Playback Camcorder
Connection with second Video recorder Connection with Video camera
