Section 2 Installation
2-6 WR850

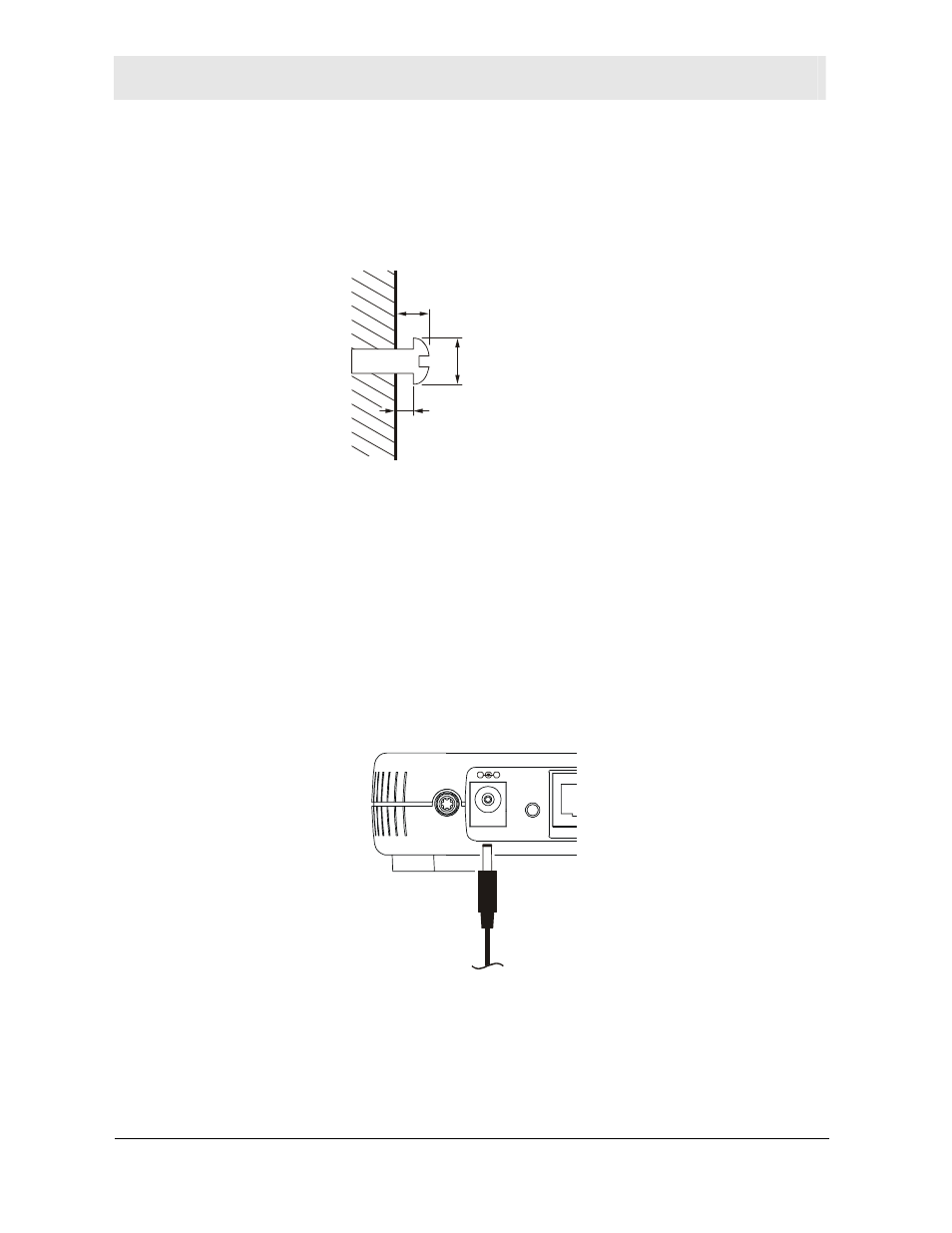

10 Using a screwdriver, turn each screw until part of it protrudes from the wall, as shown:
– There must be 4.0 mm (.16 inches) between the wall and the underside of the screw
head.
– The maximum distance from the wall to the top of the screw head is 7.6 mm (.3 in).
4.0 mm
10.5 mm (.4 inches)
maximum
7.6 mm (.3 inches)
maximum
11 Remove the two plastic feet, nearest to the LED panel, from the bottom of the router to
uncover the keyholes.
12 Place the router so the keyholes are above the mounting screws.
13 Slide the router down until it stops against the top of the keyhole opening.
14 Follow the installation procedures for connecting and configuring the router.
Electrical Connection
Your router does not have an On/Off power switch and therefore will only be powered on by
plugging in the power adapter
Reset
Power LAN
To power
supply
1 Connect the power adapter to the router’s Power port, found on the back of the router.
2 Plug the power adapter into a grounded and surge-protected power outlet. The Power
LED on the front panel lights green when connected properly.
